Installation Procedure

  1. Connect the electrical connector to the lighted rearview mirror, if equipped.
  2. Install the rearview mirror into the rearview mirror support.

    Ensure that the mirror is fully seated.

  3. Install the wire harness cover to the lighted rearview mirror, if equipped.

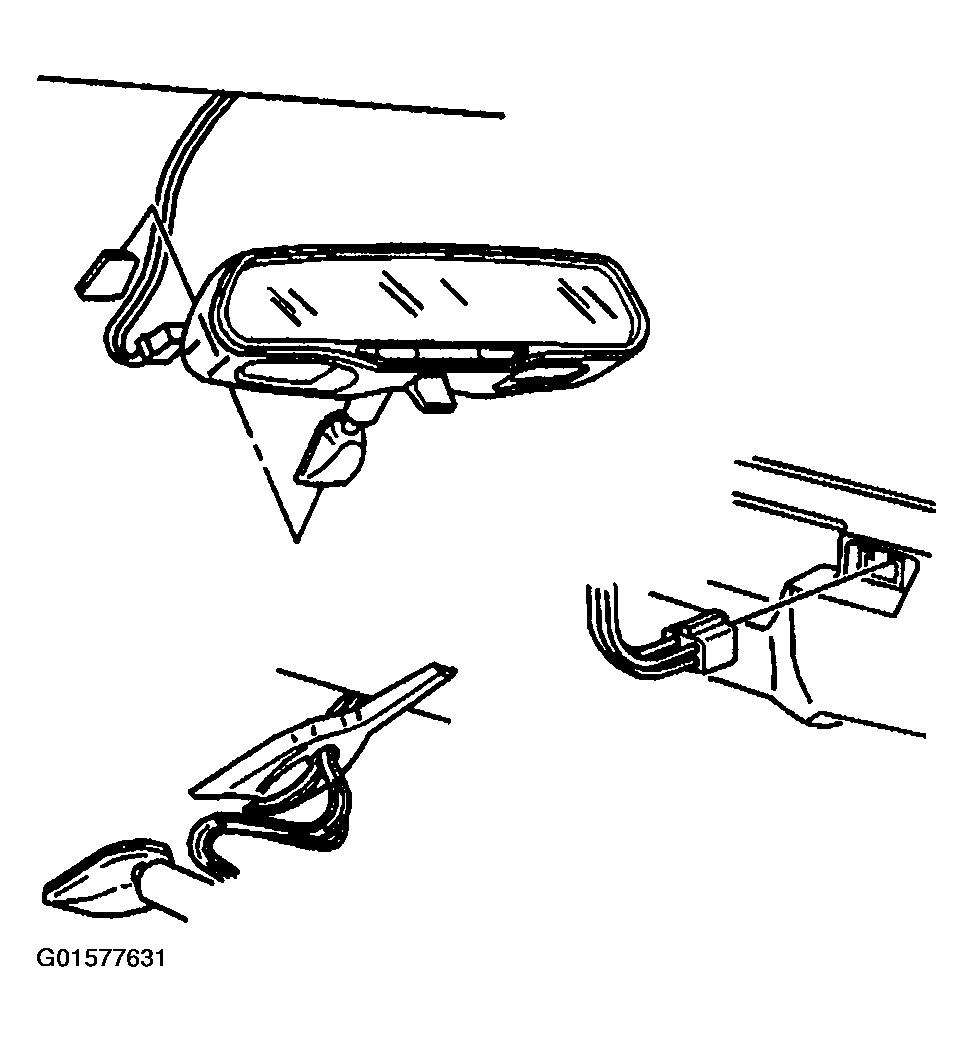

    Fig 1: Installing Rearview Mirror
    G01577631Courtesy of GENERAL MOTORS CORP.
