Removal Procedure

  1. Open the door.
  2. Remove the window crank handle using the J 9886-01.

    Be sure to retain the retainer clip on the back side of the handle.

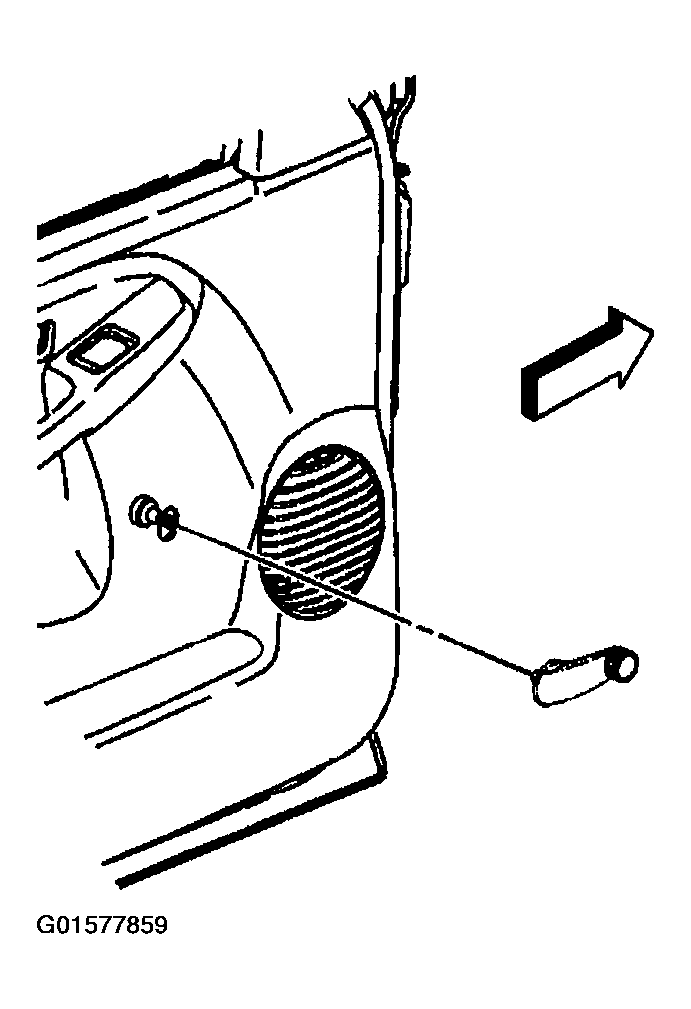

    Fig 1: Window Handle
    G01577859Courtesy of GENERAL MOTORS CORP.
