Removal Procedure

  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Rear Door (Crew Cab)   .
  2. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door (Crew Cab)   .
  3. Remove the window glass. Refer to Window Replacement - Rear Door   .
  4. Remove the window sash.
  5. Remove the glass weatherstrip.
  6. Remove the module from the door.

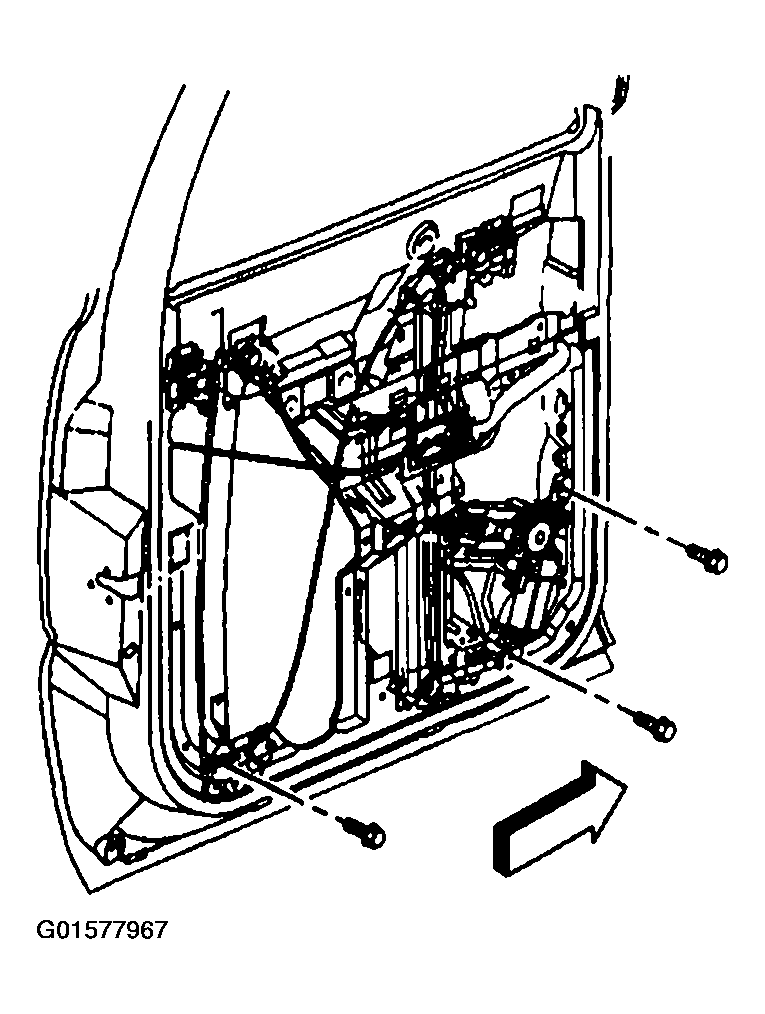

    Fig 1: Removing Rear Power Window Module
    G01577967Courtesy of GENERAL MOTORS CORP.
