Installation Procedure

  1. Install the module to the door.
  2. Install the glass weatherstrip.
  3. Install the Window sash.
  4. Install the window glass. Refer to Window Replacement - Rear Door   .
  5. Install the water deflector. Refer to Water Deflector Replacement - Rear Door (Crew Cab)   .
  6. Install the trim panel. Refer to Trim Panel Replacement - Side Rear Door (Crew Cab)   .

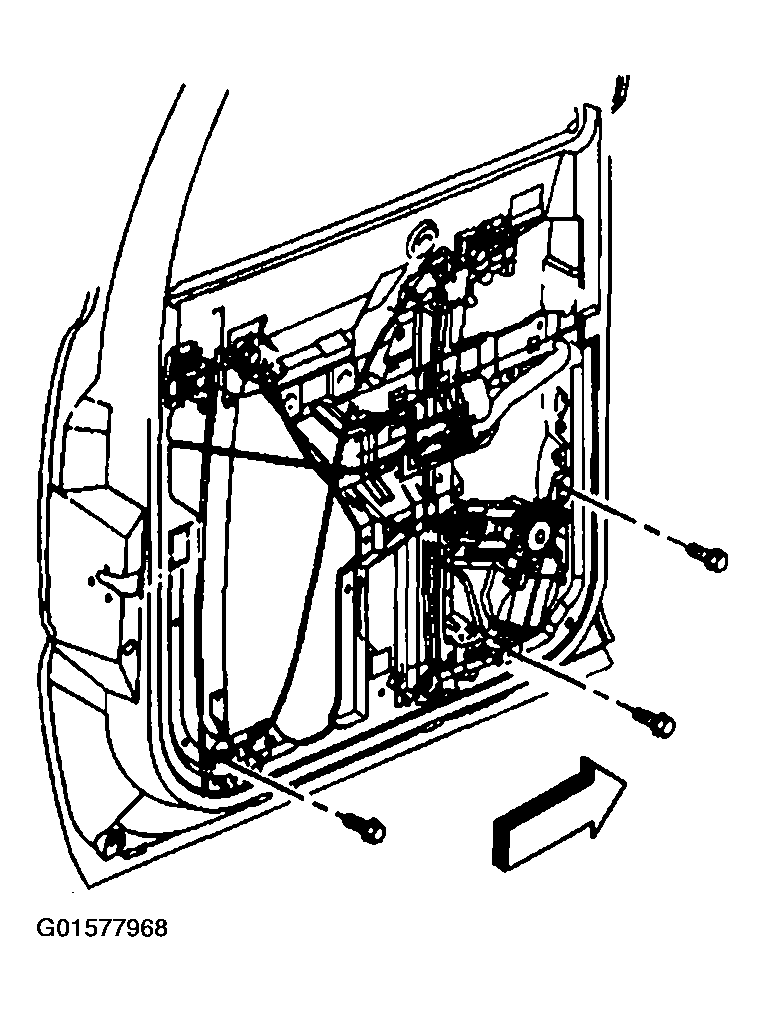

    Fig 1: Installing Rear Power Window Module
    G01577968Courtesy of GENERAL MOTORS CORP.
