Removal Procedure

  1. Raise and support the window.
  2. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door   .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door   .
  4. Disconnect the wiring harness from the window motor assembly.
  5. Remove the 2 bolts holding the window to the regulator.
  6. Remove the bolts from the window regulator.
  7. Remove the window regulator assembly from the door folding both sides together.

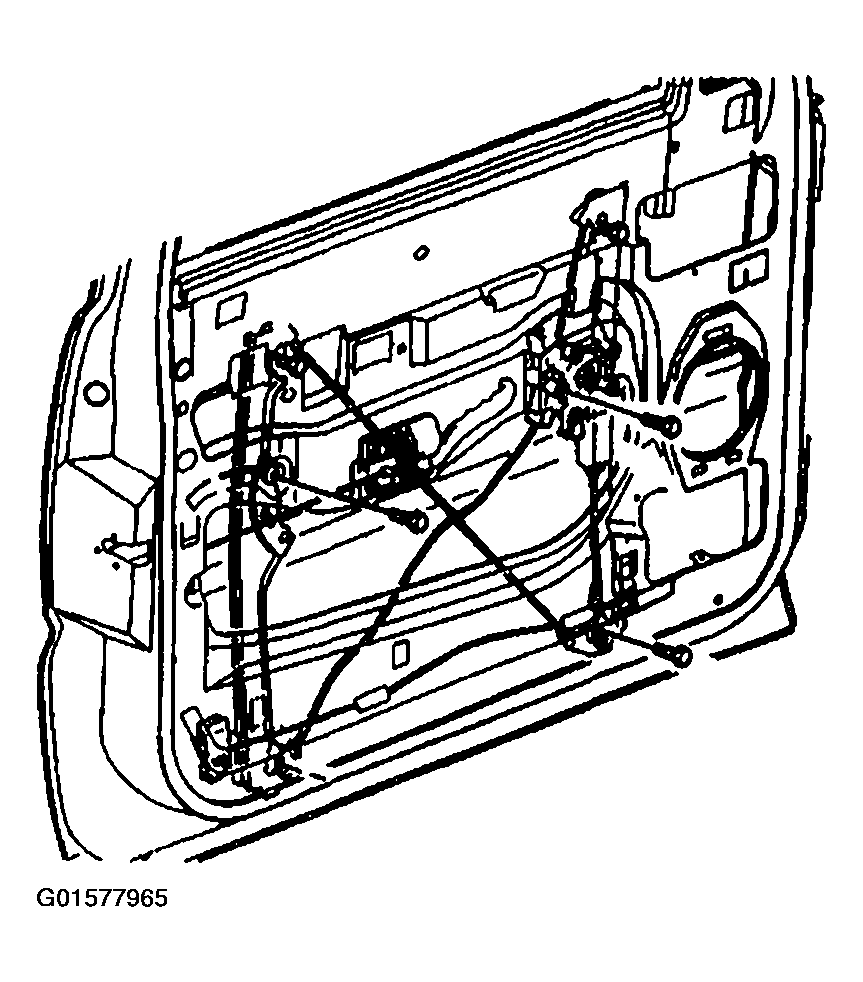

    Fig 1: Removing Front Power Window Module
    G01577965Courtesy of GENERAL MOTORS CORP.
