Power Door Systems Component Views

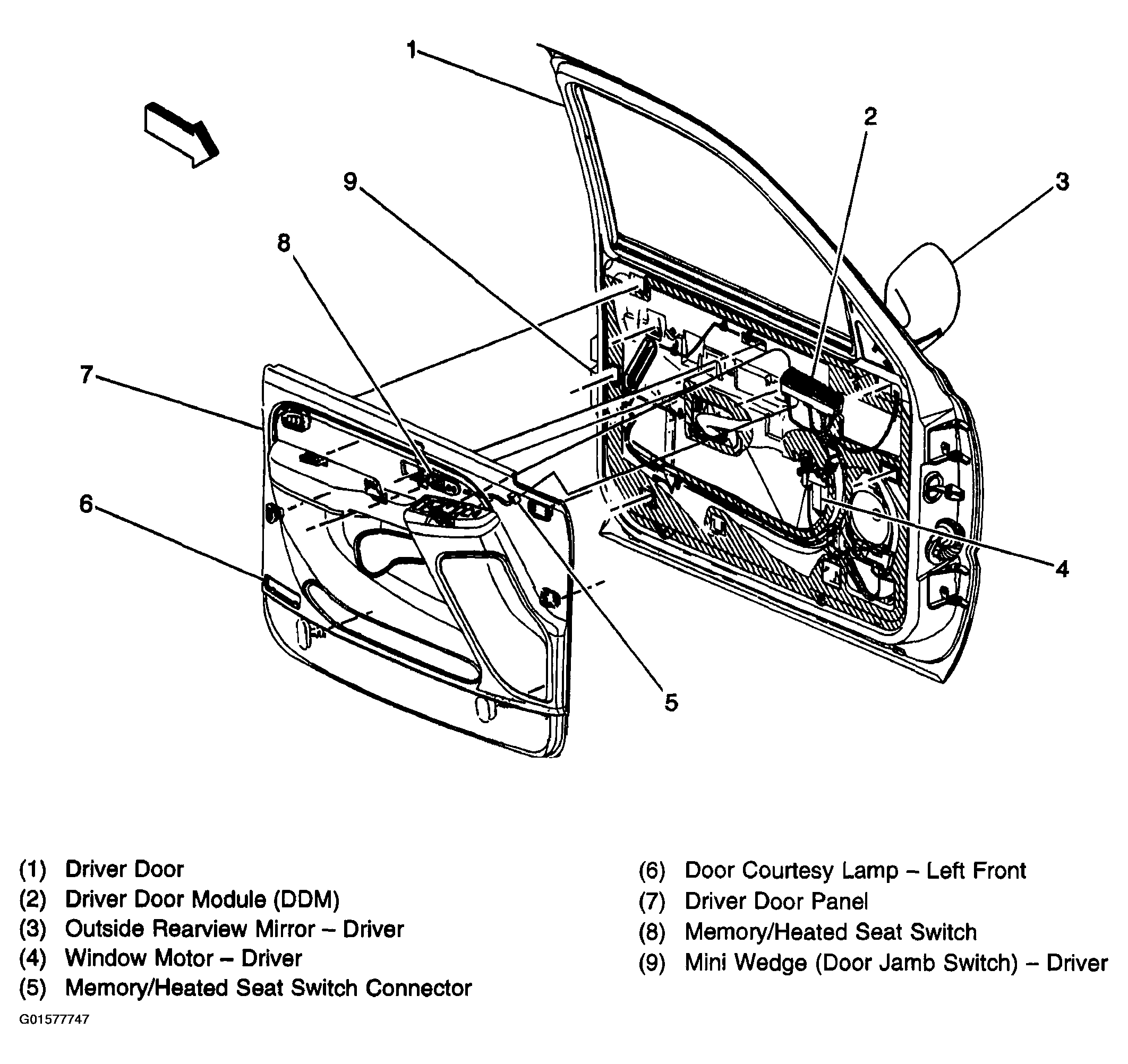

Fig 1: Driver Door
G01577747Courtesy of GENERAL MOTORS CORP.

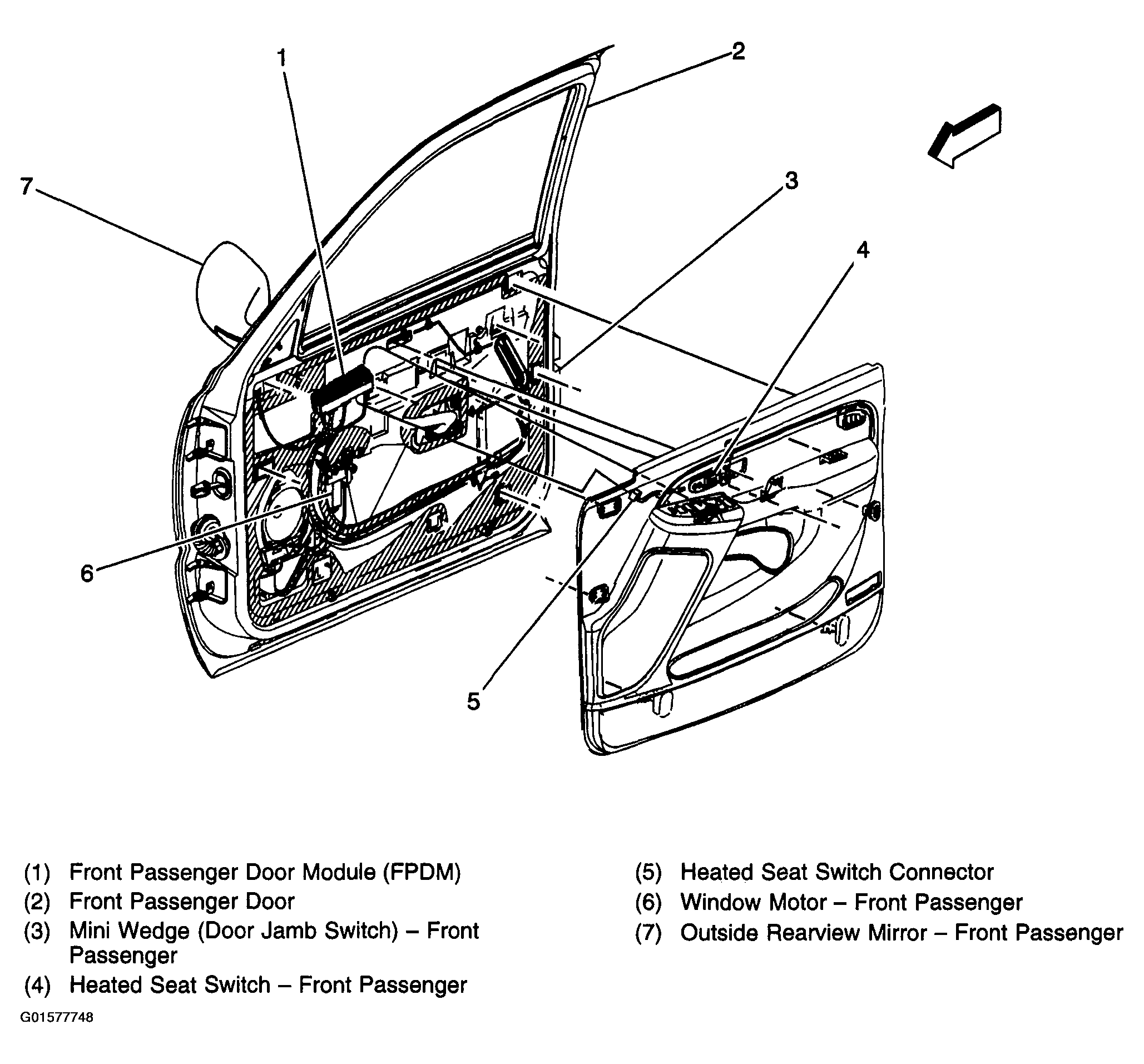

Fig 2: Front Passenger Door
G01577748Courtesy of GENERAL MOTORS CORP.

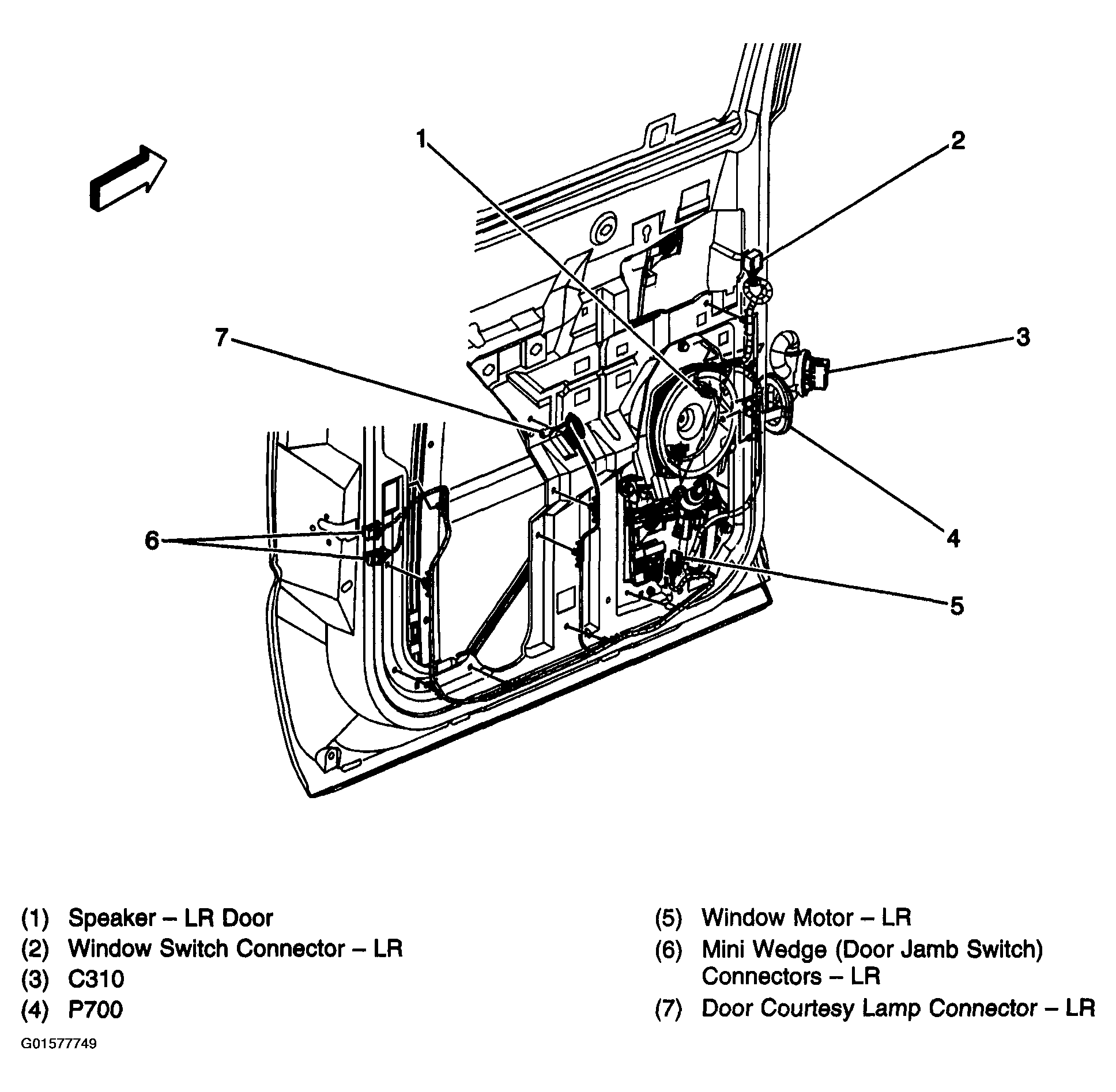

Fig 3: LR Passenger Side Door
G01577749Courtesy of GENERAL MOTORS CORP.

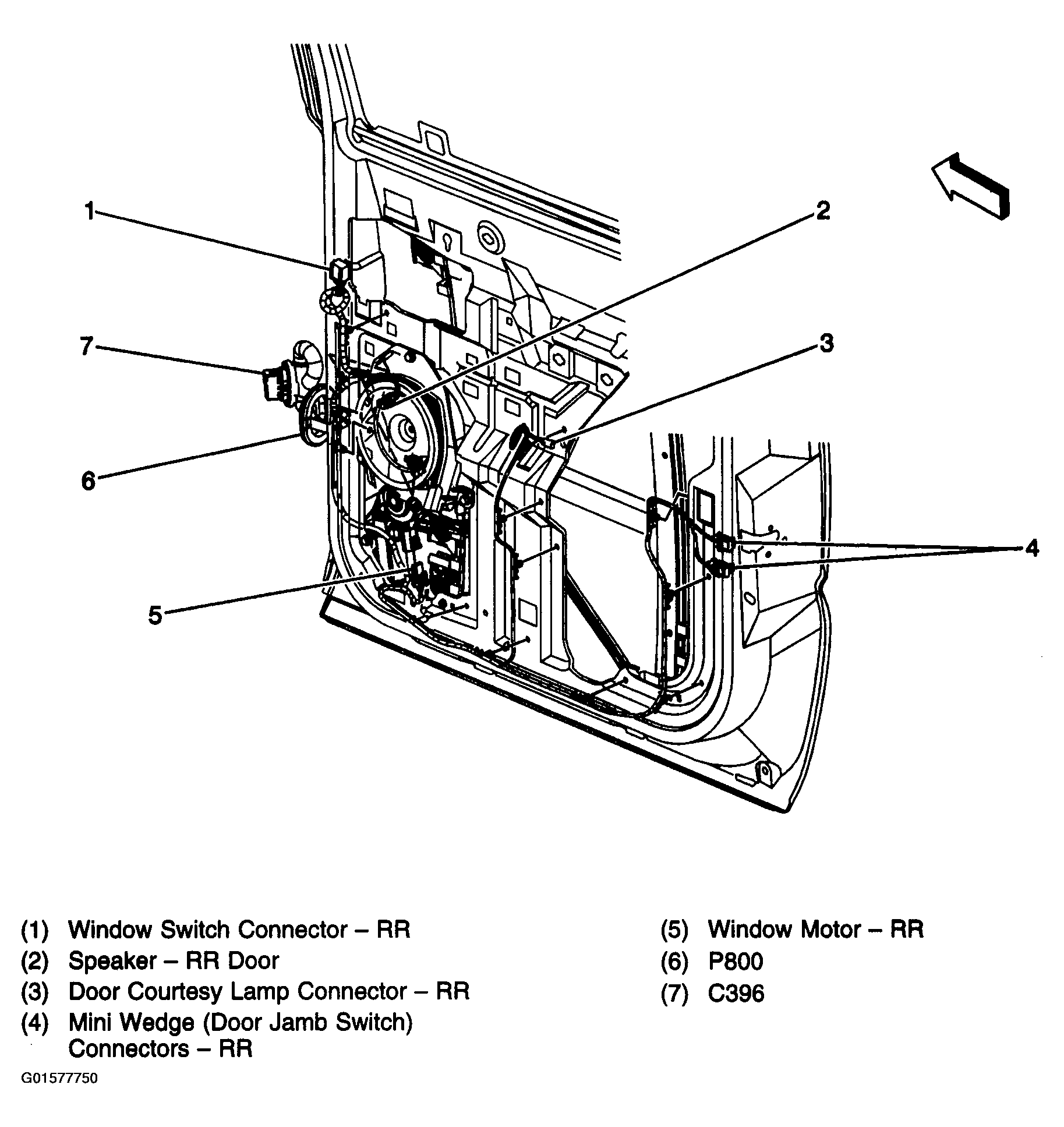

Fig 4: RR Passenger Side Door
G01577750Courtesy of GENERAL MOTORS CORP.
