Installation Procedure

  1. Install the seat cushion frame (5).

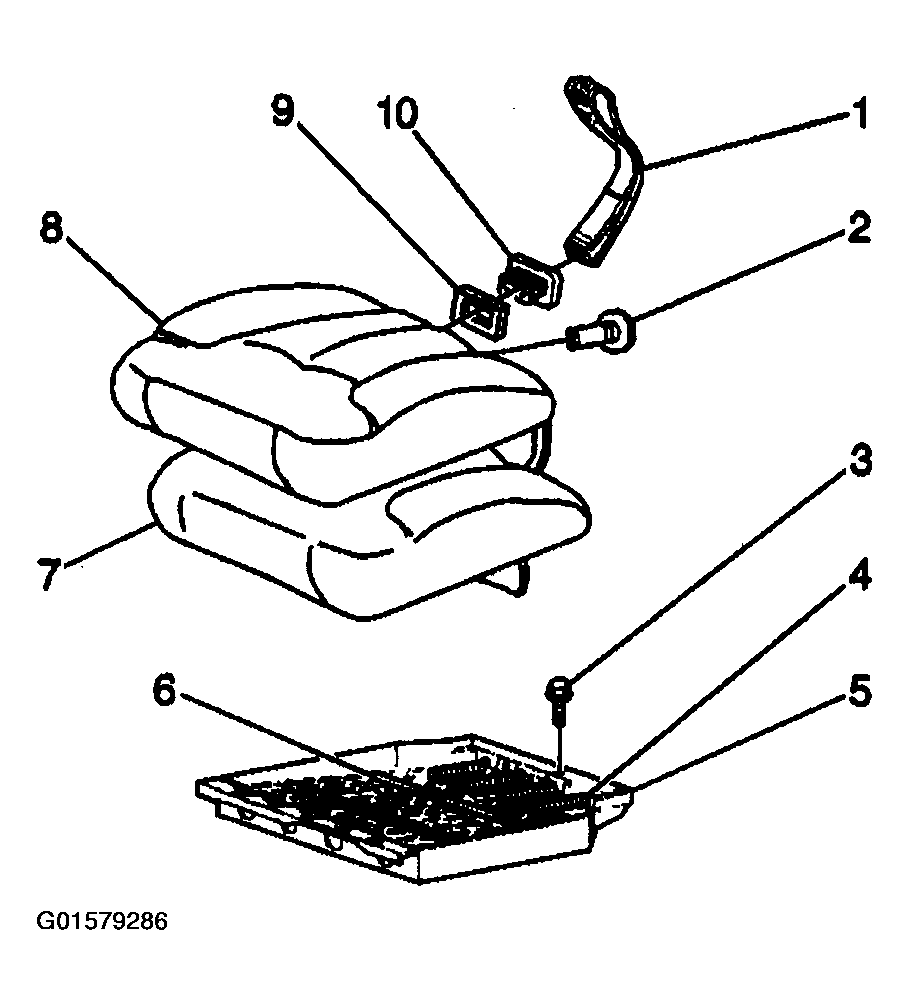

    Fig 1: Installing Seat Cushion Frame
    G01579286Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts to the hinge assembly, if removed.

    Tighten

    Tighten the bolts to 35 N.m (26 lb ft).

  3. Install the seat cushion trim cover (8) and the pad (7). Refer to Seat Cushion Cover And Pad Replacement-Rear   .

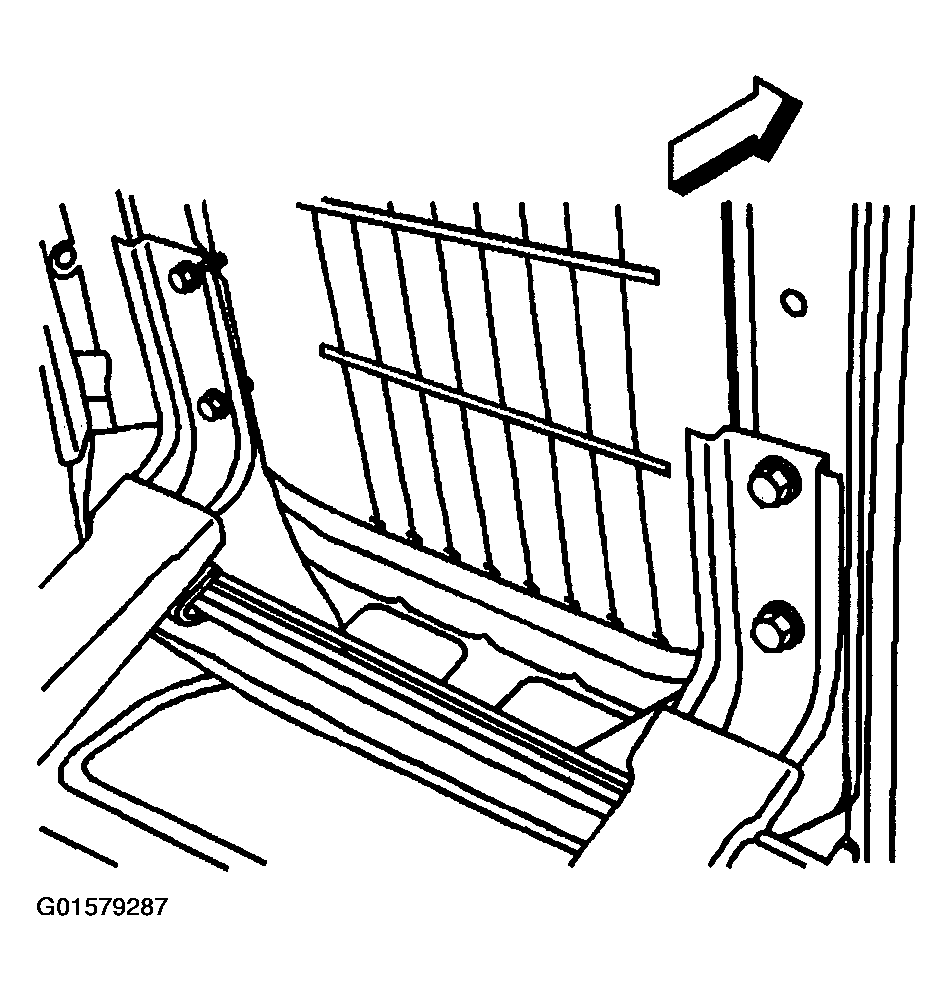

    Fig 2: Installing Seat Cushion Cover & Pad
    G01579287Courtesy of GENERAL MOTORS CORP.
