Removal Procedure

  1. Remove the rear seat from the vehicle. Refer to Seat Replacement-Rear (Extended Cab W/4Th Door)   or Seat Replacement-Rear (Extended Cab)   or Seat Replacement-Rear (60/40 Split)   .
  2. Remove the armrest, if equipped. Refer to Armrest Replacement-Rear Seat (60/40 Split)   .
  3. Remove the seat back cover. Refer to Seat Back Cover And Pad Replacement-Rear   .
  4. Remove the bolts (1,2) that retain the latch assembly to the seat frame.
  5. Unsnap the recliner cables from the folding mechanism.
  6. Remove the seat back latch assembly from the seat frame.

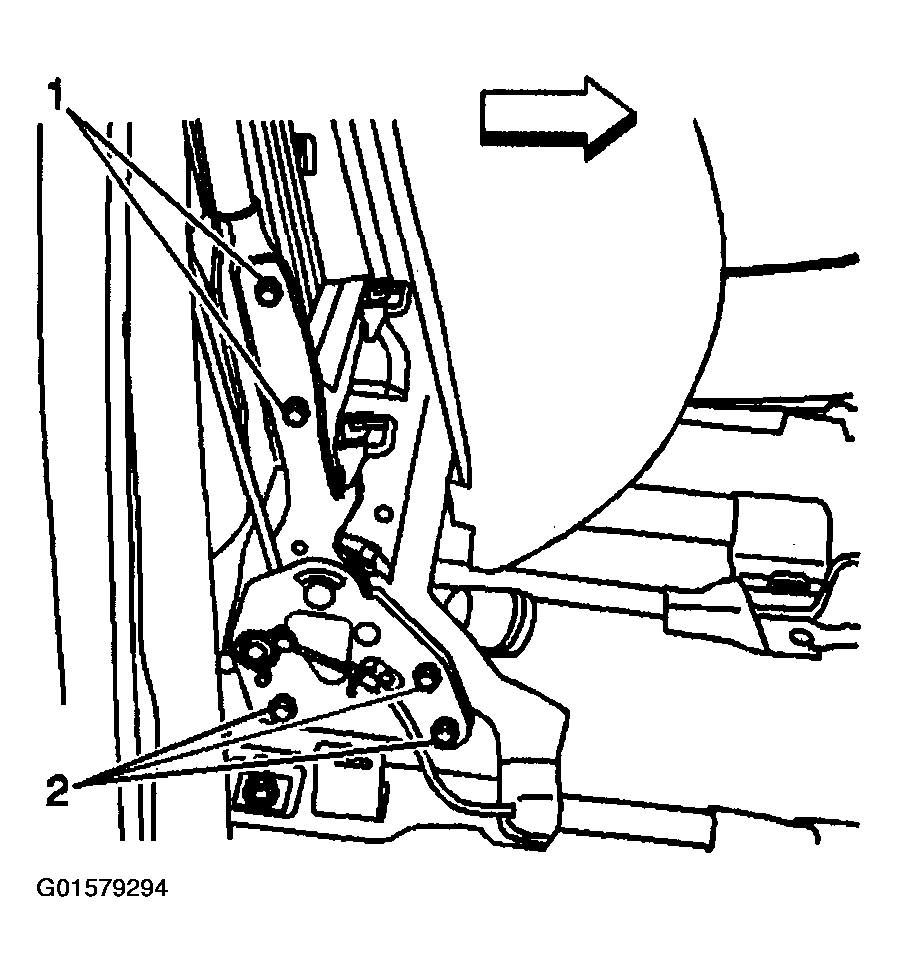

    Fig 1: Rear Seat Back Latch
    G01579294Courtesy of GENERAL MOTORS CORP.
