Removal Procedure

  1. Remove the seat from the vehicle. Refer to Seat Replacement-Rear (Extended Cab W/4Th Door)   or Seat Replacement-Rear (Extended Cab)   or Seat Replacement-Rear (60/40 Split)   .
  2. Remove the armrest, if equipped. Refer to Armrest Replacement-Rear Seat (60/40 Split)   .
  3. Partially remove the seat-back cover in order to gain access to the retaining bolts. Refer to Seat Back Cover And Pad Replacement-Rear   .
  4. Remove the bolts from the seat-back frame.
  5. Remove the seat-back frame (4) from the seat back cushion frame.

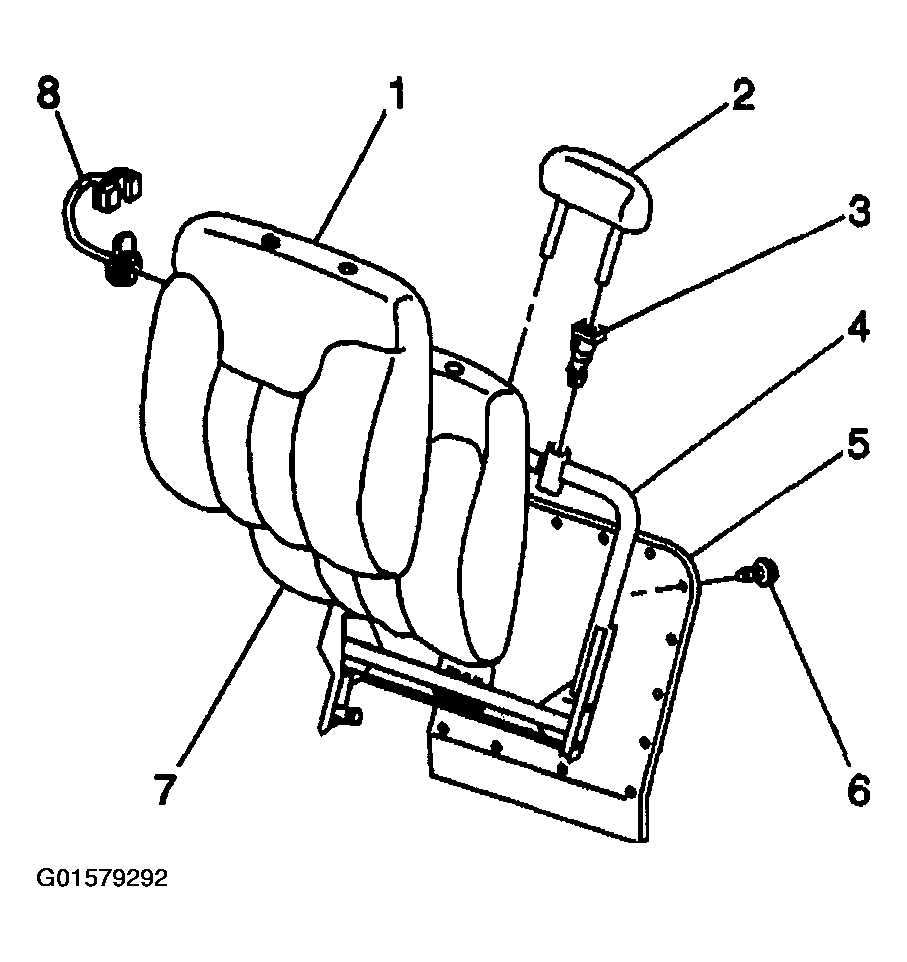

    Fig 1: Rear Seat Back Frame
    G01579292Courtesy of GENERAL MOTORS CORP.
