Removal Procedure

  1. Remove the seat cushion. Refer to Seat Cushion Frame Replacement-Front   .
  2. Disconnect the upper electrical harness connectors (3).
  3. Remove the module (2) retaining screws (1).
  4. Slide the module to the right to disengage the lower retainers.

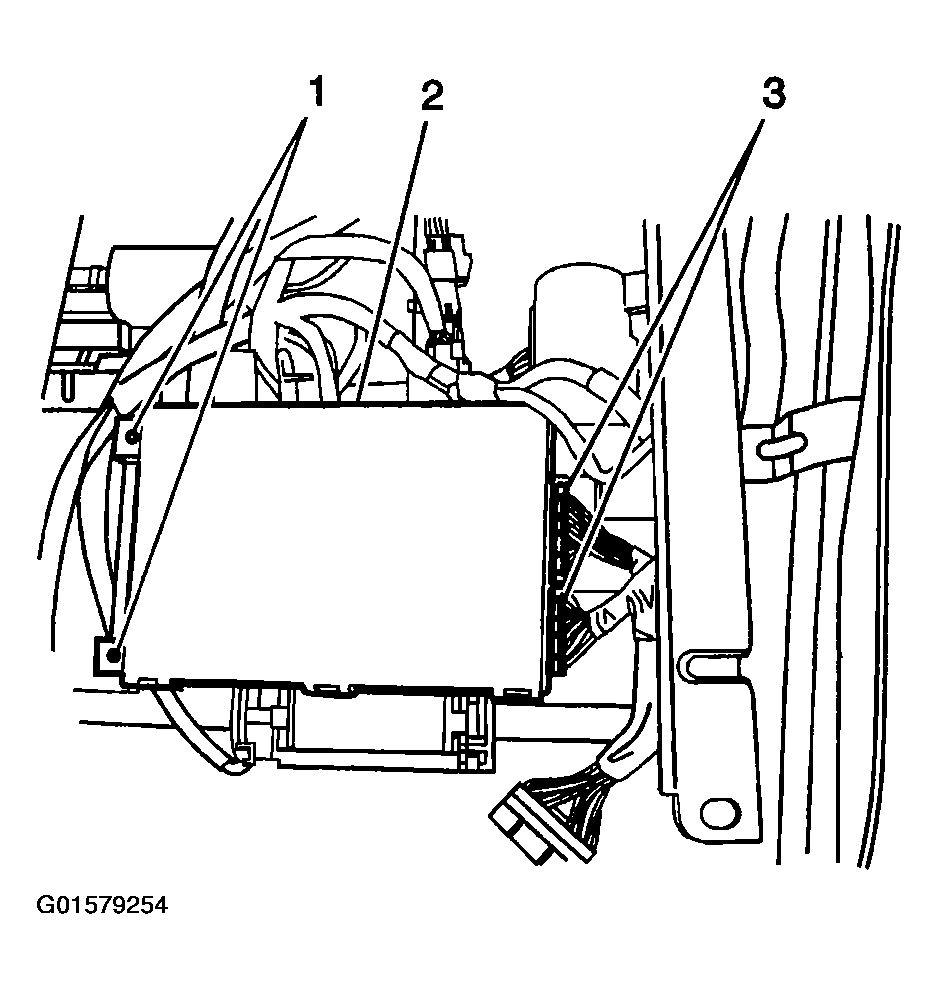

    Fig 1: Upper Electrical Harness Connectors & Memory Seat Control Module Retaining Screws
    G01579254Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the lower electrical harness connectors (2).
  6. Remove the module from the vehicle.

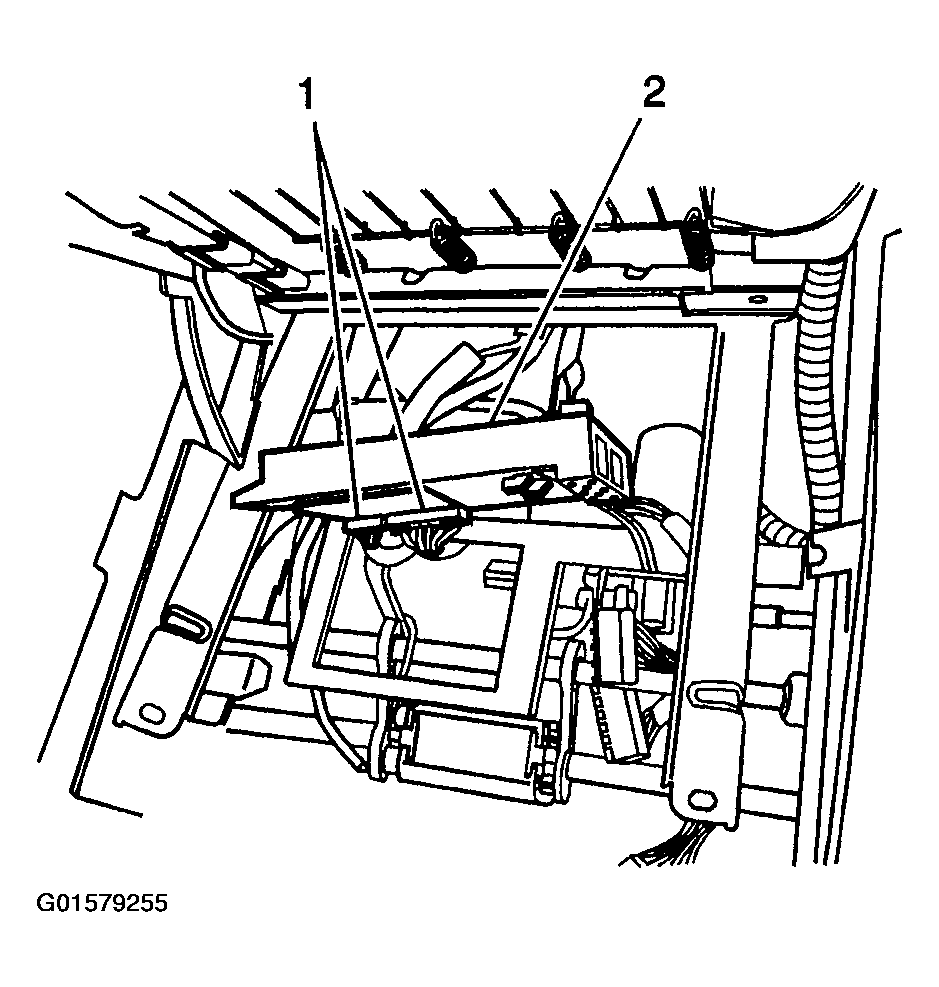

    Fig 2: Lower Electrical Harness Connectors
    G01579255Courtesy of GENERAL MOTORS CORP.
