Removal Procedure

  1. Remove the center console end panel. Refer to CENTER CONSOLE END PANEL REPLACEMENT .
  2. Disconnect the electrical connector.
  3. Remove the seat heater switch retaining screws.
  4. Remove the switch from the vehicle.

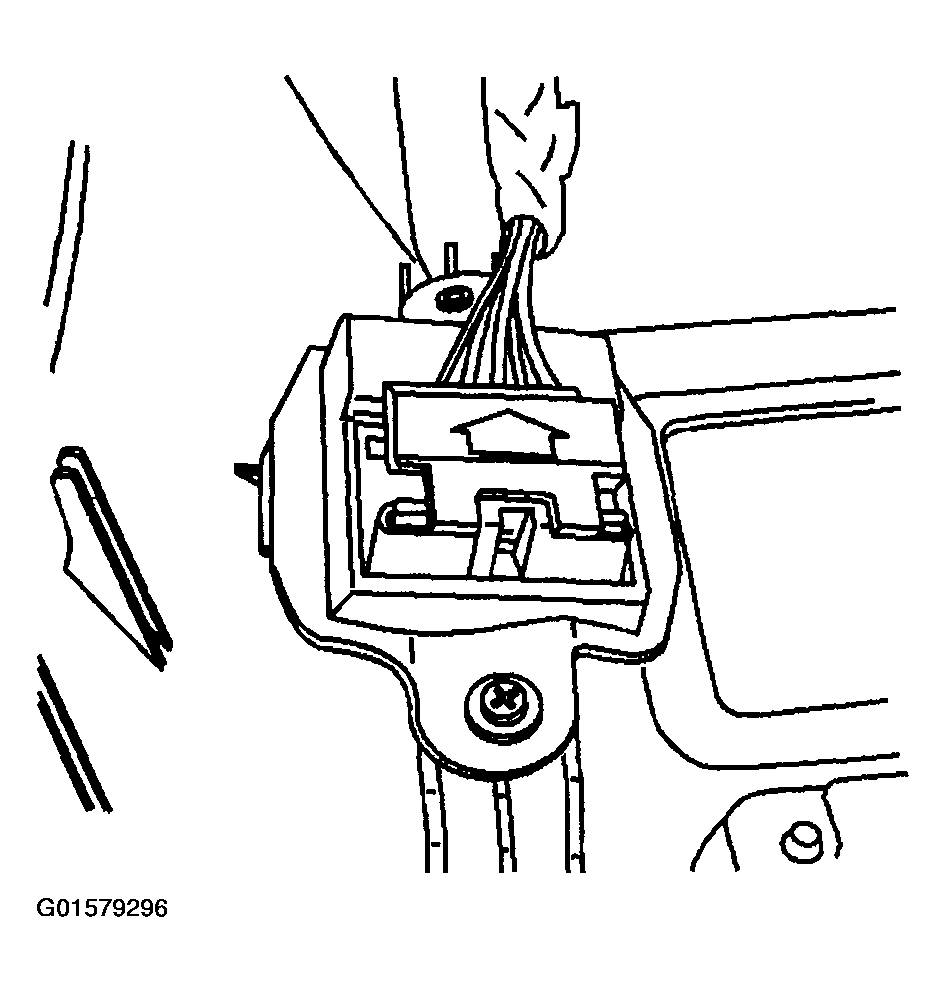

    Fig 1: Rear Heated Seat Switch
    G01579296Courtesy of GENERAL MOTORS CORP.
