Flywheel/Flex Plate Torque

Tighten the engine flywheel bolts in sequence to 100 N.m (74 lb ft).

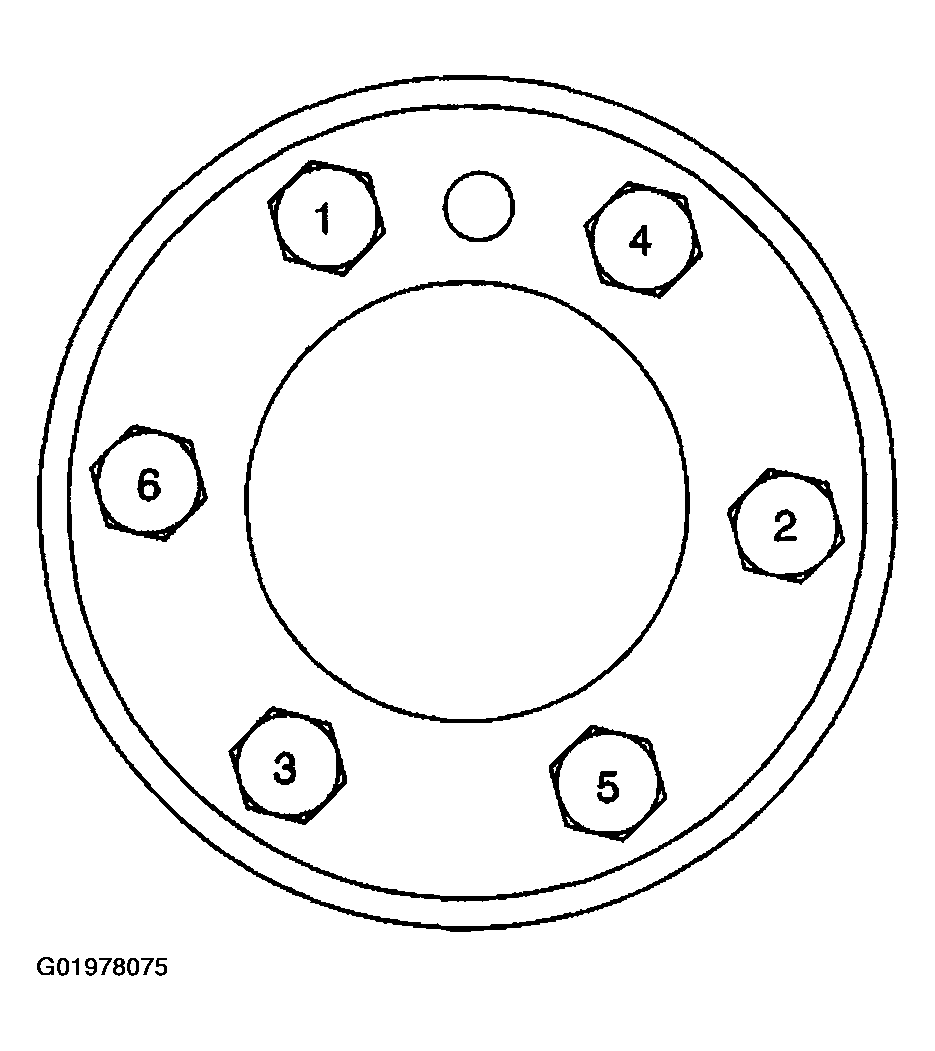

Fig 1: Engine Flywheel Bolts Tightening Sequence

G01978075

Courtesy of GENERAL MOTORS CORP.
