Horns Component Views

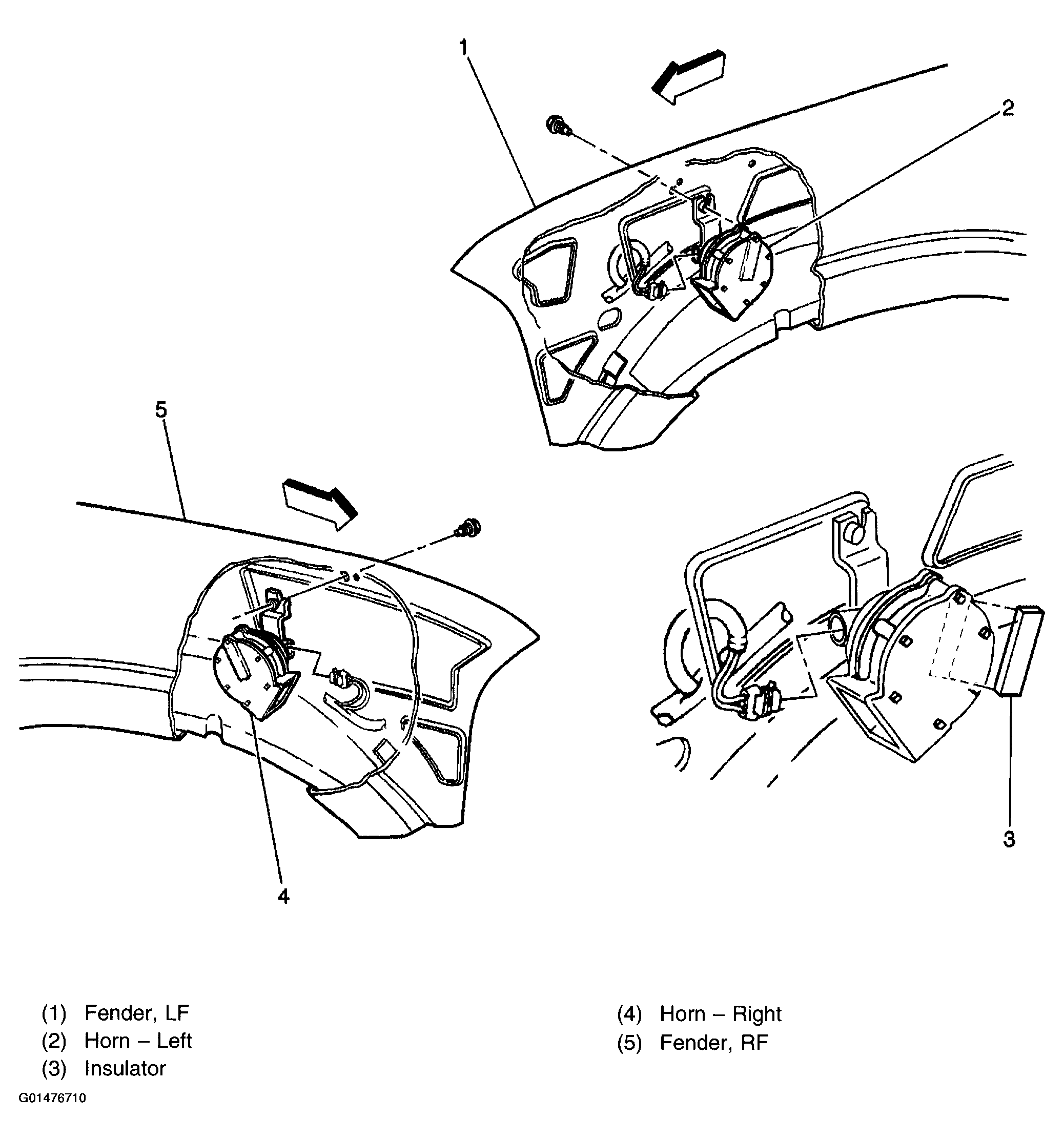

Fig 1: Horns

G01476710

Courtesy of GENERAL MOTORS CORP.

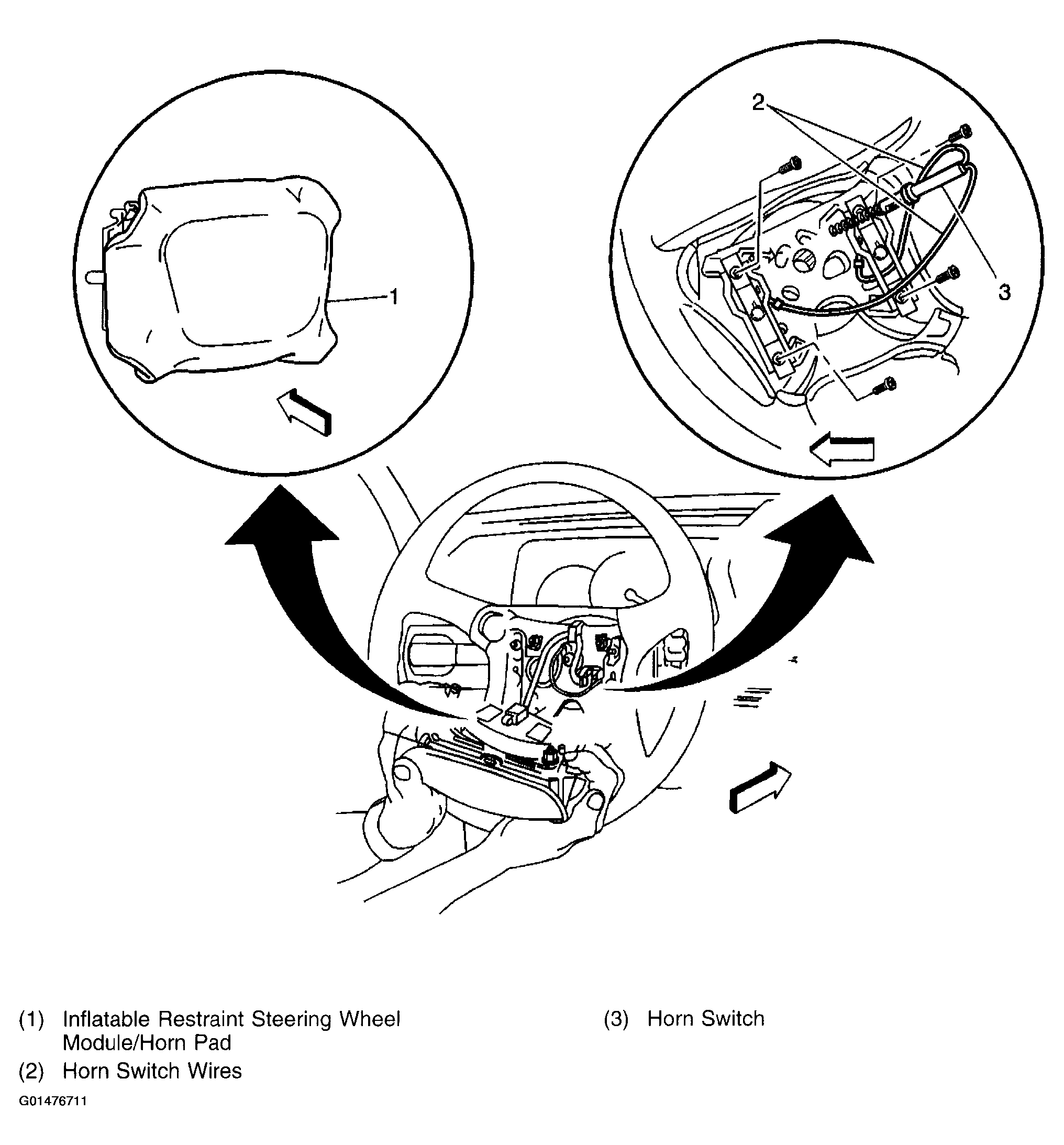

Fig 2: Inflatable Restraint Steering Wheel Module/Horn Pad

G01476711

Courtesy of GENERAL MOTORS CORP.
