Transfer Case Shift Control Switch C2 Connector End View

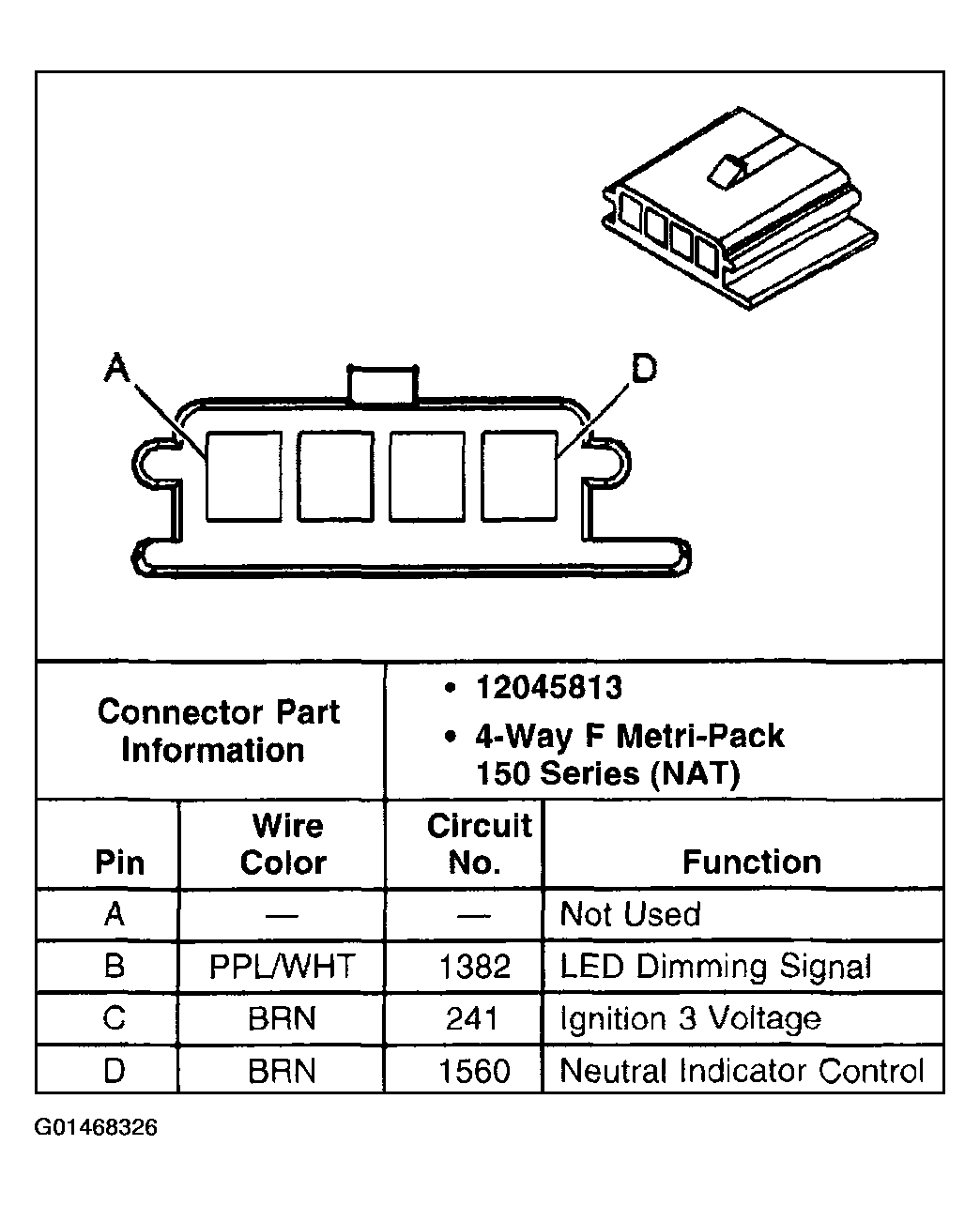

Fig 1: Transfer Case Shift Control Switch C2 Connector End View
G01468326Courtesy of GENERAL MOTORS CORP.

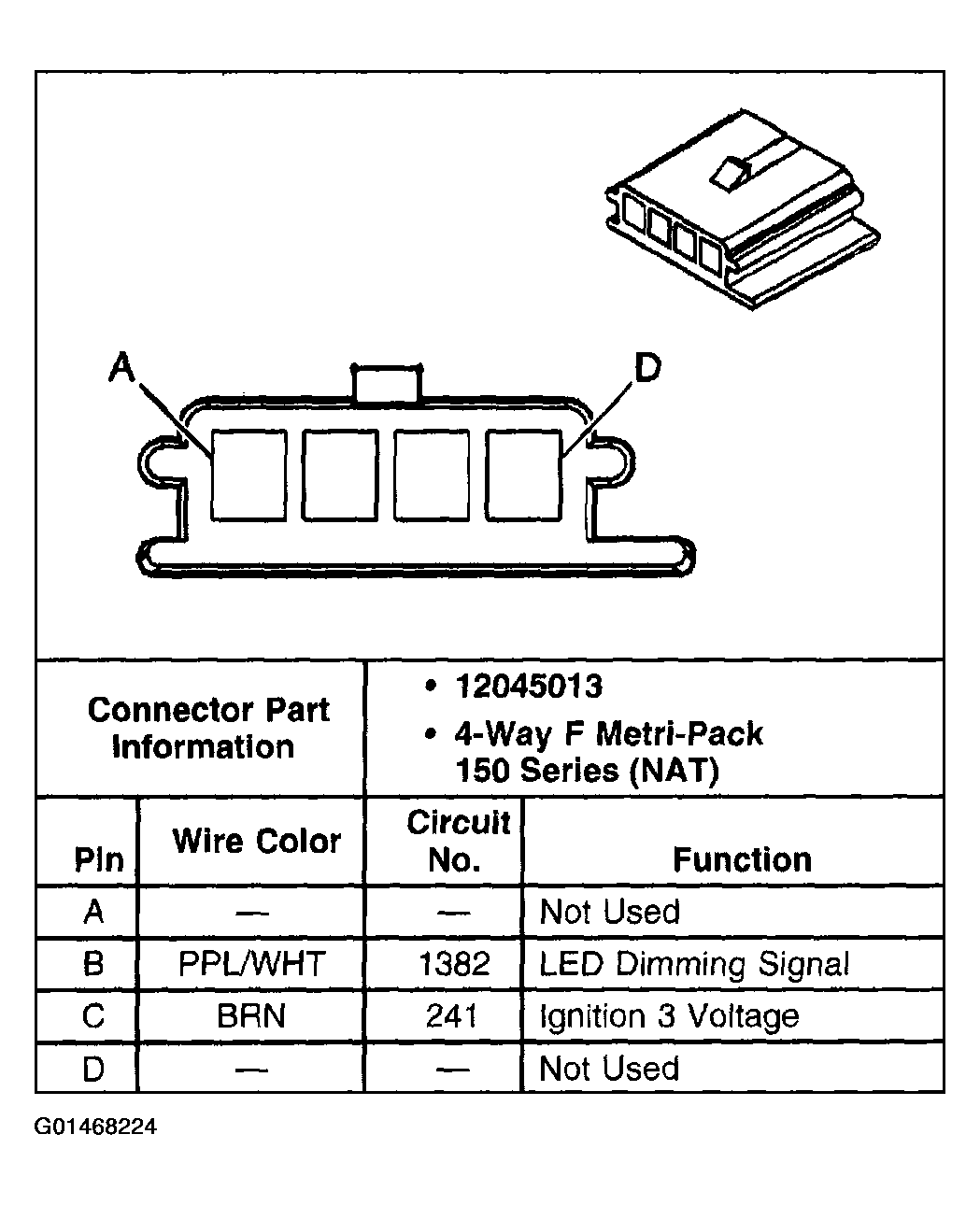

Fig 1: Transfer Case Shift Control Switch C2 Connector End View
G01468224Courtesy of GENERAL MOTORS CORP.
