Transfer Case Shift Control Switch C1 Connector End View

Fig 1: Transfer Case Shift Control Switch C1 Connector End View
G01468325Courtesy of GENERAL MOTORS CORP.

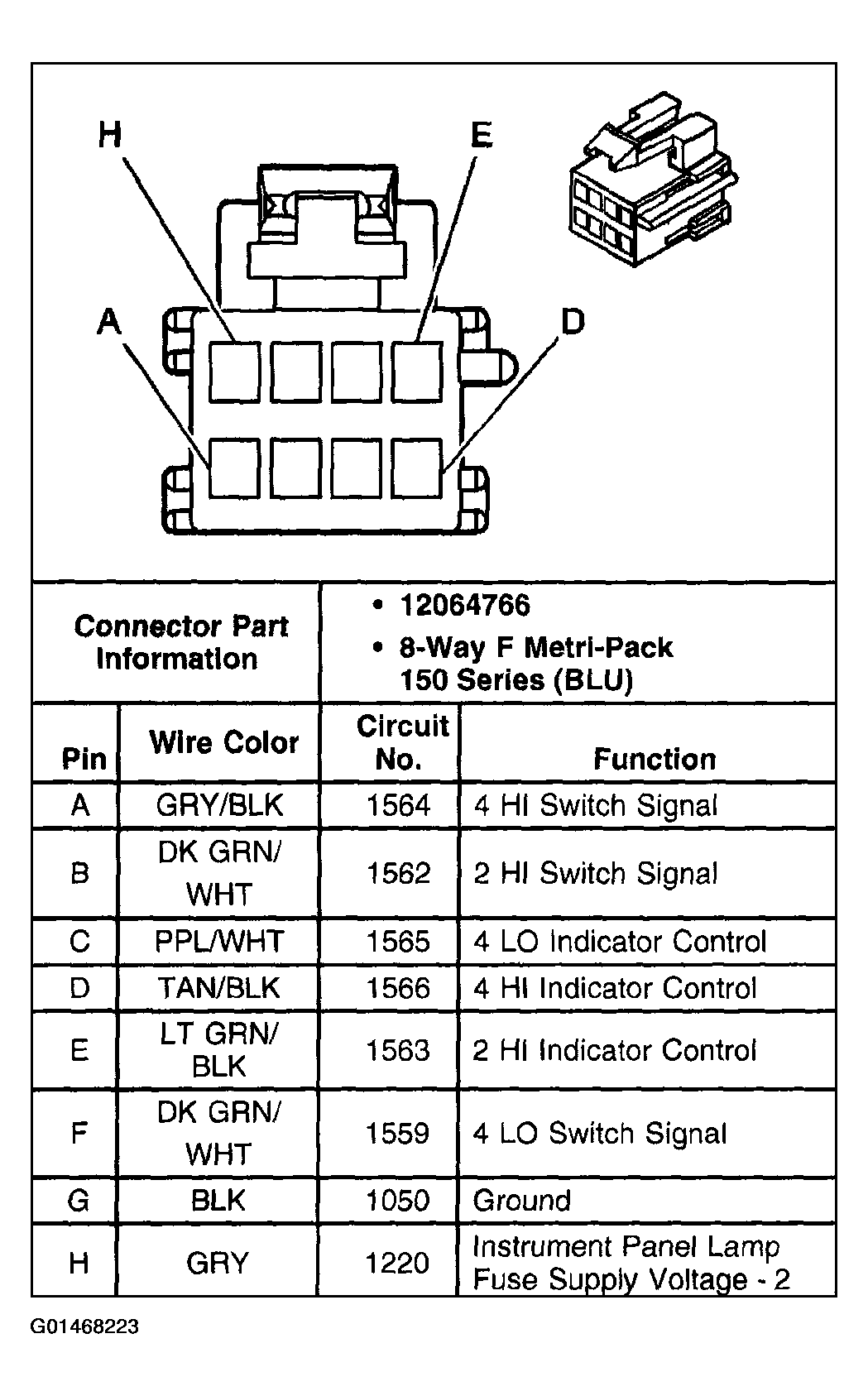

Fig 1: Transfer Case Shift Control Switch C1 Connector End View
G01468223Courtesy of GENERAL MOTORS CORP.
