Sunroof Control Module C1 Connector End View
Sunroof Control Module C1 Connector End View

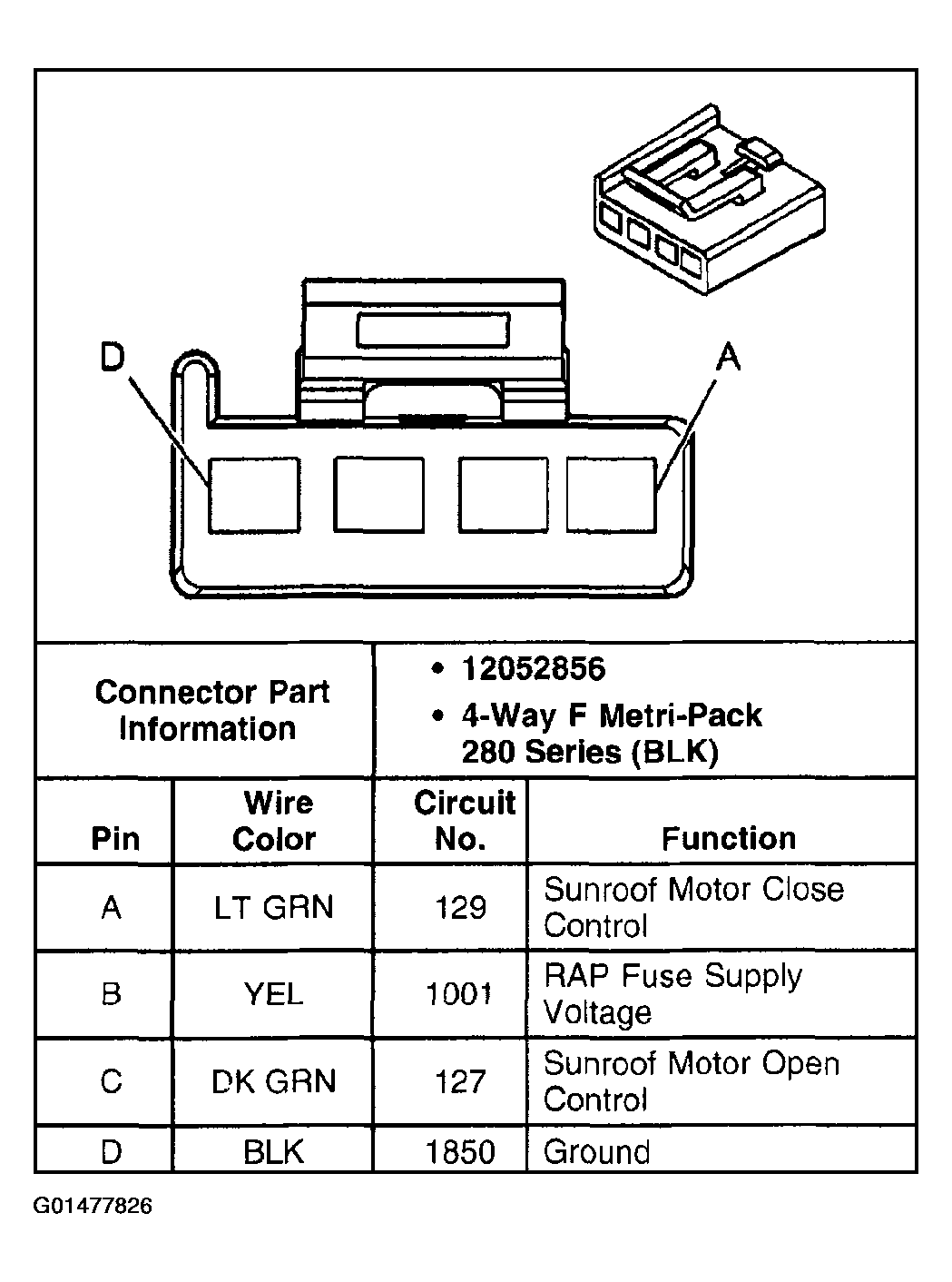

Fig 1: Sunroof Control Module C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
