Memory Seat Module - Driver C2 Connector End View

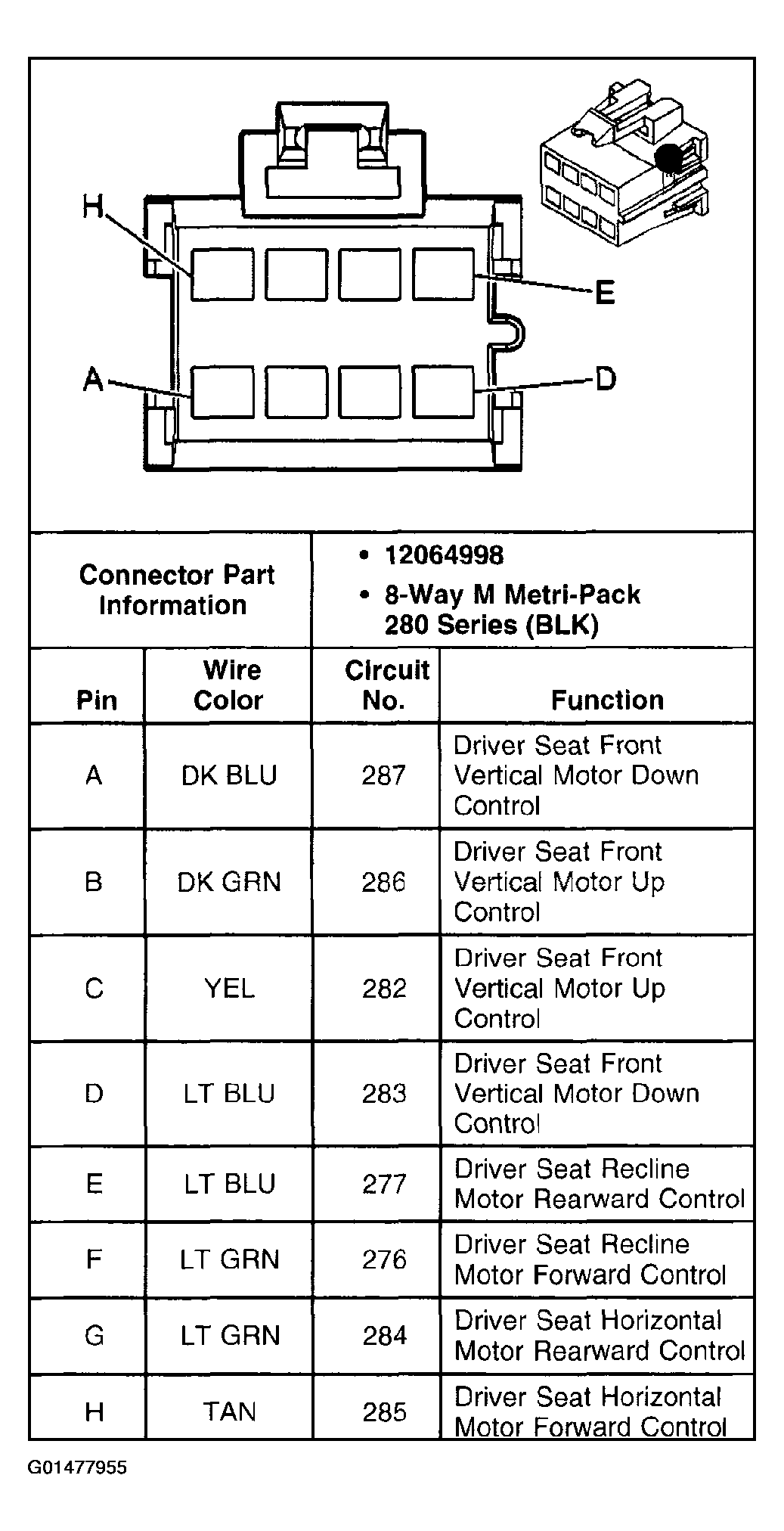

Fig 1: Memory Seat Module - Driver C2 Connector End View

G01477955

Courtesy of GENERAL MOTORS CORP.
