Ignition Control Module Harness Connector End View C1 Terminals
Ignition Control Module Harness Connector End View C1 Terminals

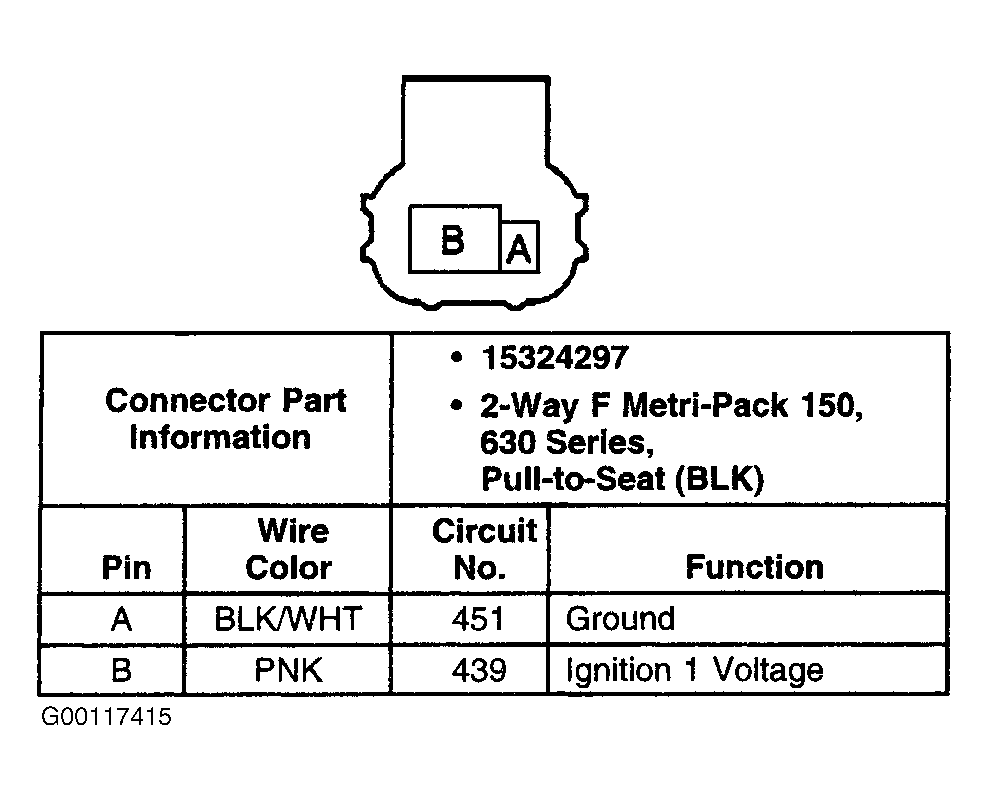

Fig 1: Ignition Control Module Harness Connector End View C1 Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
