HVAC Control Assembly Connector End View C2

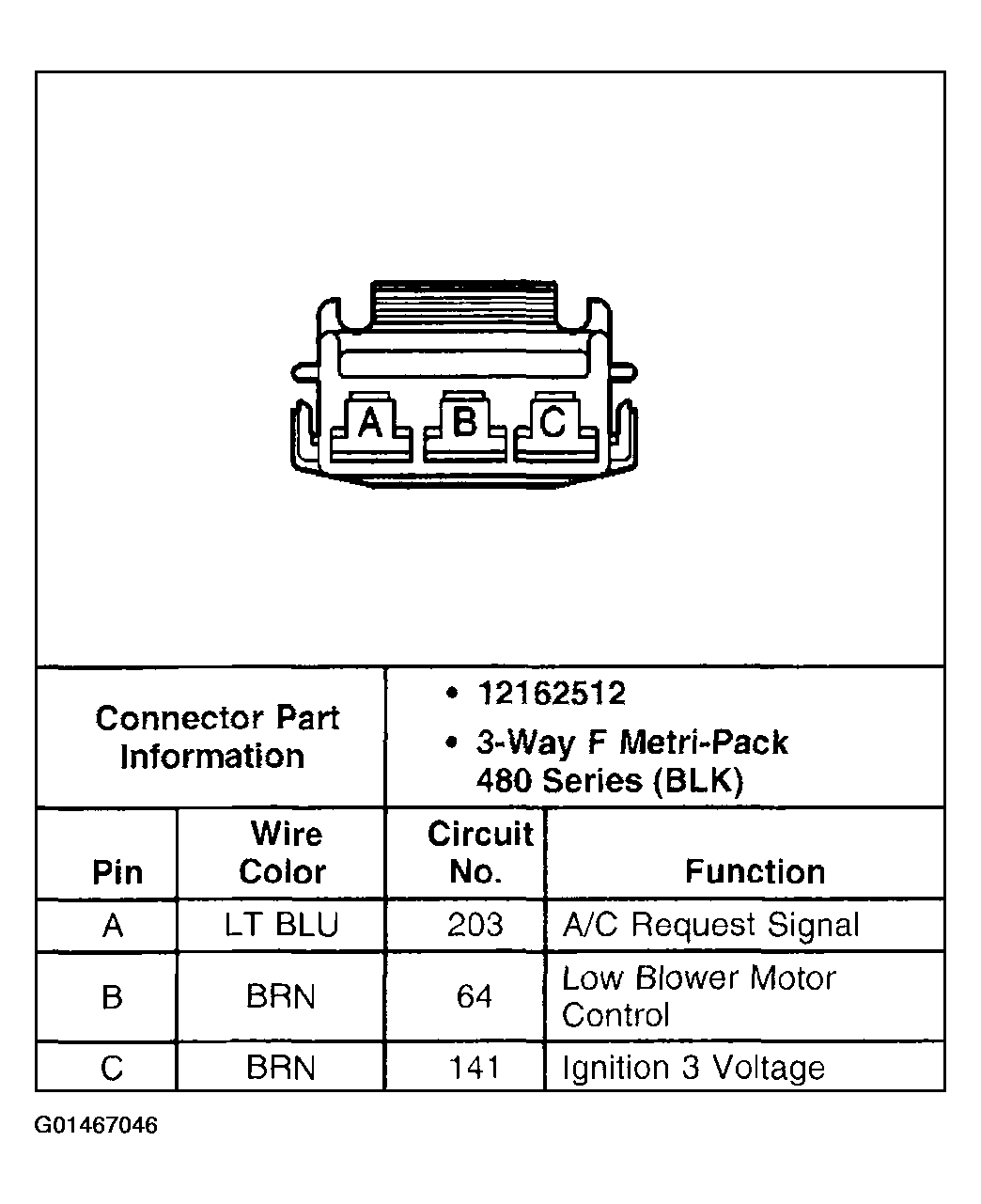

Fig 1: HVAC Control Assembly Connector End View C2

G01467046

Courtesy of GENERAL MOTORS CORP.
