Front Axle Indicator Switch Connector End View

Fig 1: Front Axle Indicator Switch Connector End View
G01468330Courtesy of GENERAL MOTORS CORP.

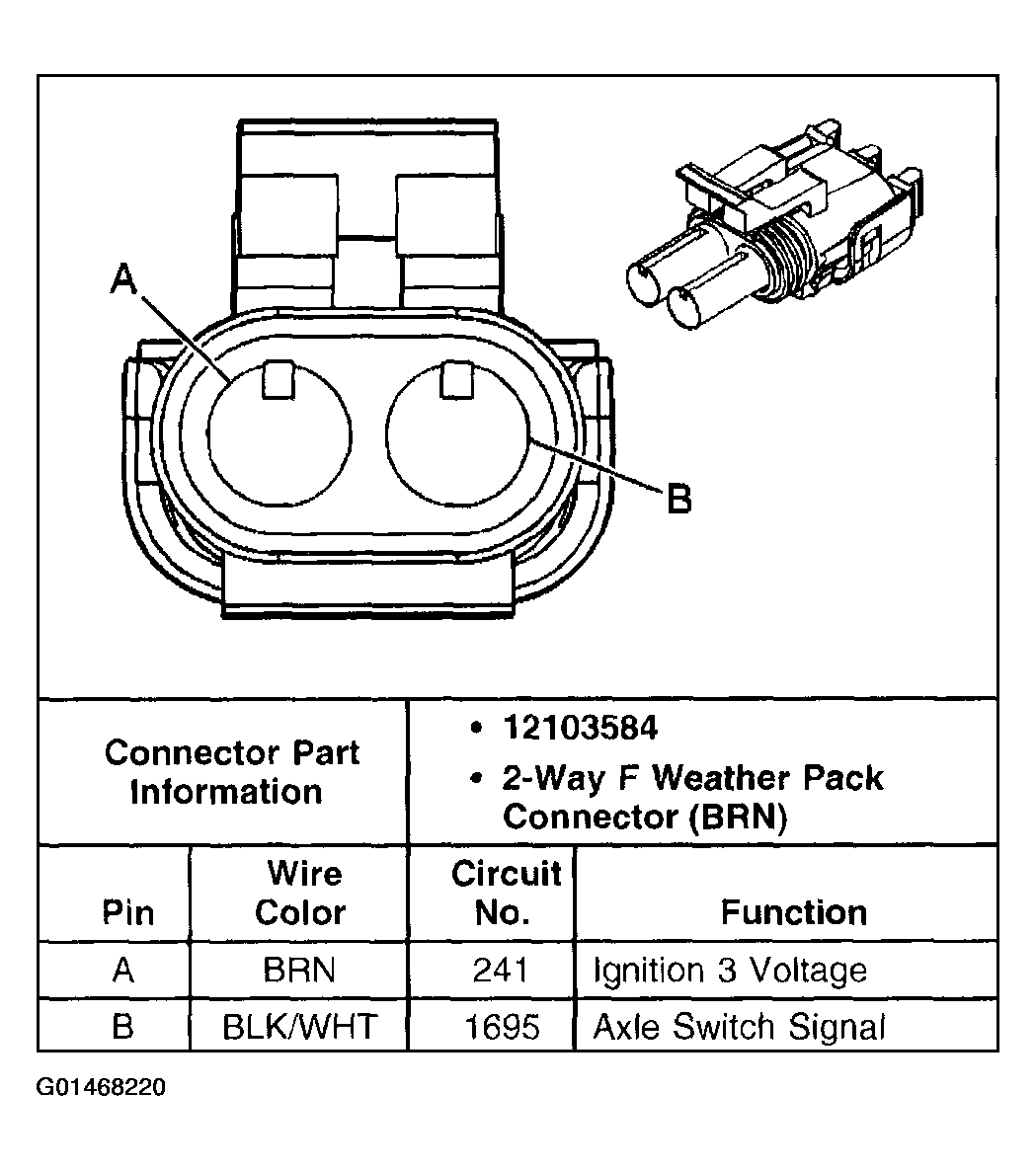

Fig 1: Front Axle Indicator Switch Connector End View
G01468220Courtesy of GENERAL MOTORS CORP.
