Home >> GMC >> 2003 >> Jimmy 4D Utility, 4WD, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Antilock Brake System >> Specifications >> Fastener Tightening Specifications

Fastener Tightening Specifications

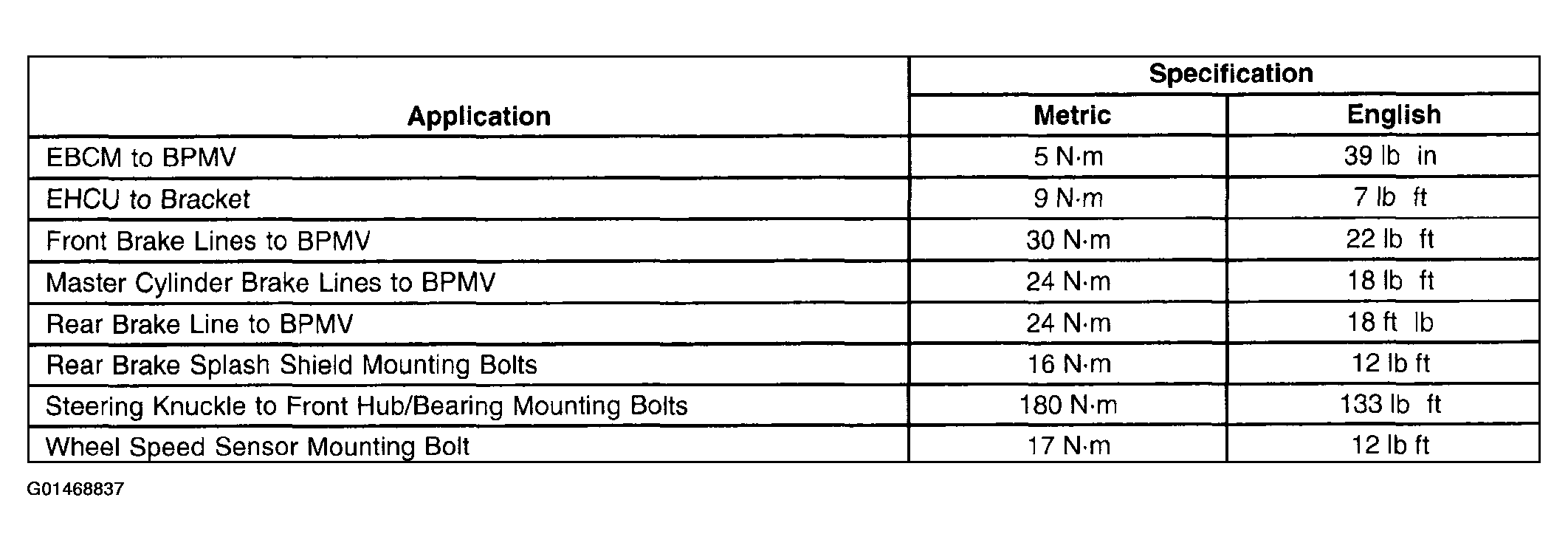

Fig 1: Antilock Brake System - Torque Specifications

G01468837

Courtesy of GENERAL MOTORS CORP.
