Power Seat Systems Component Views

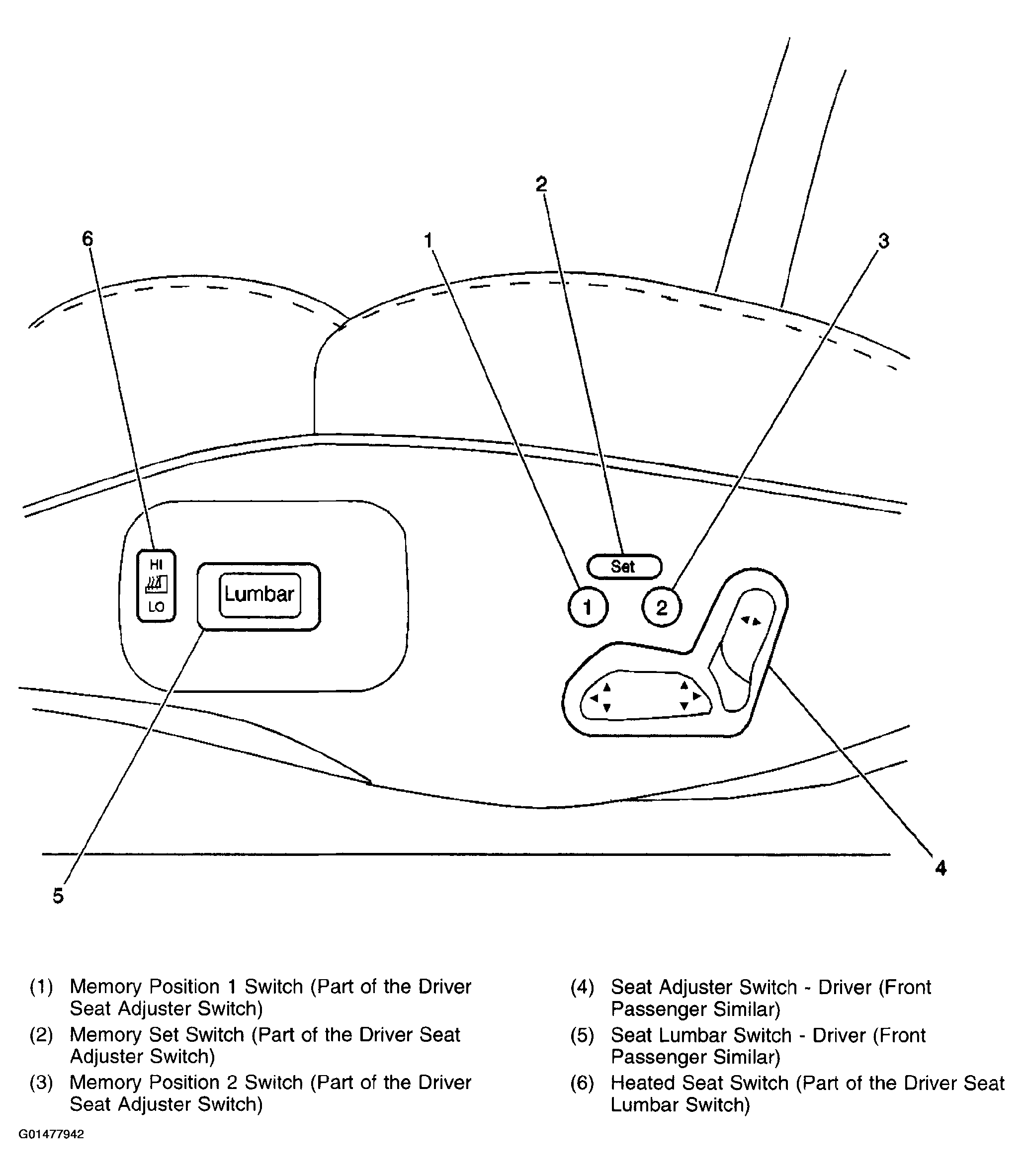

Fig 1: Seat Switches
G01477942Courtesy of GENERAL MOTORS CORP.

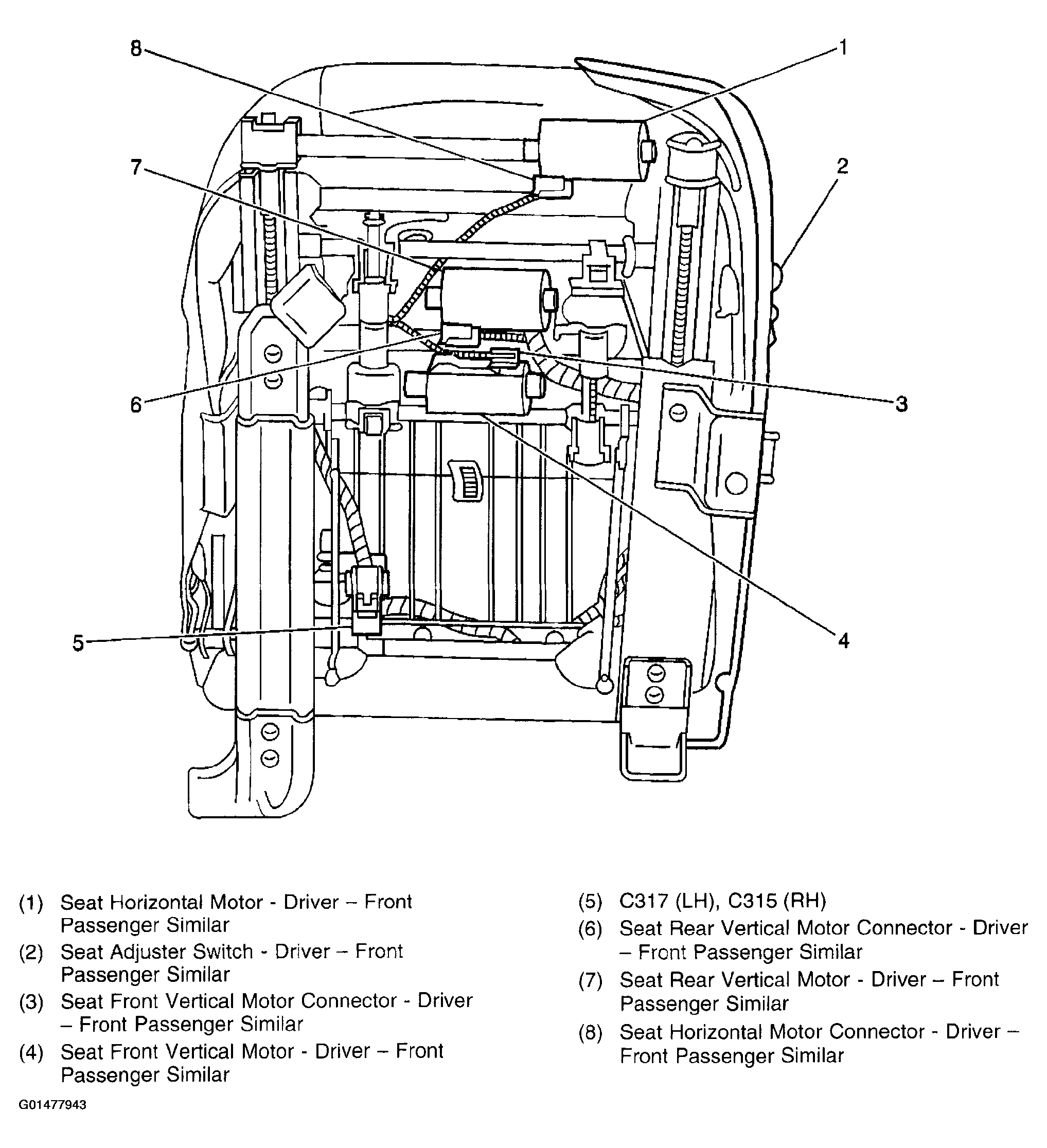

Fig 2: Seat Motors (8-Way w/o Memory)
G01477943Courtesy of GENERAL MOTORS CORP.

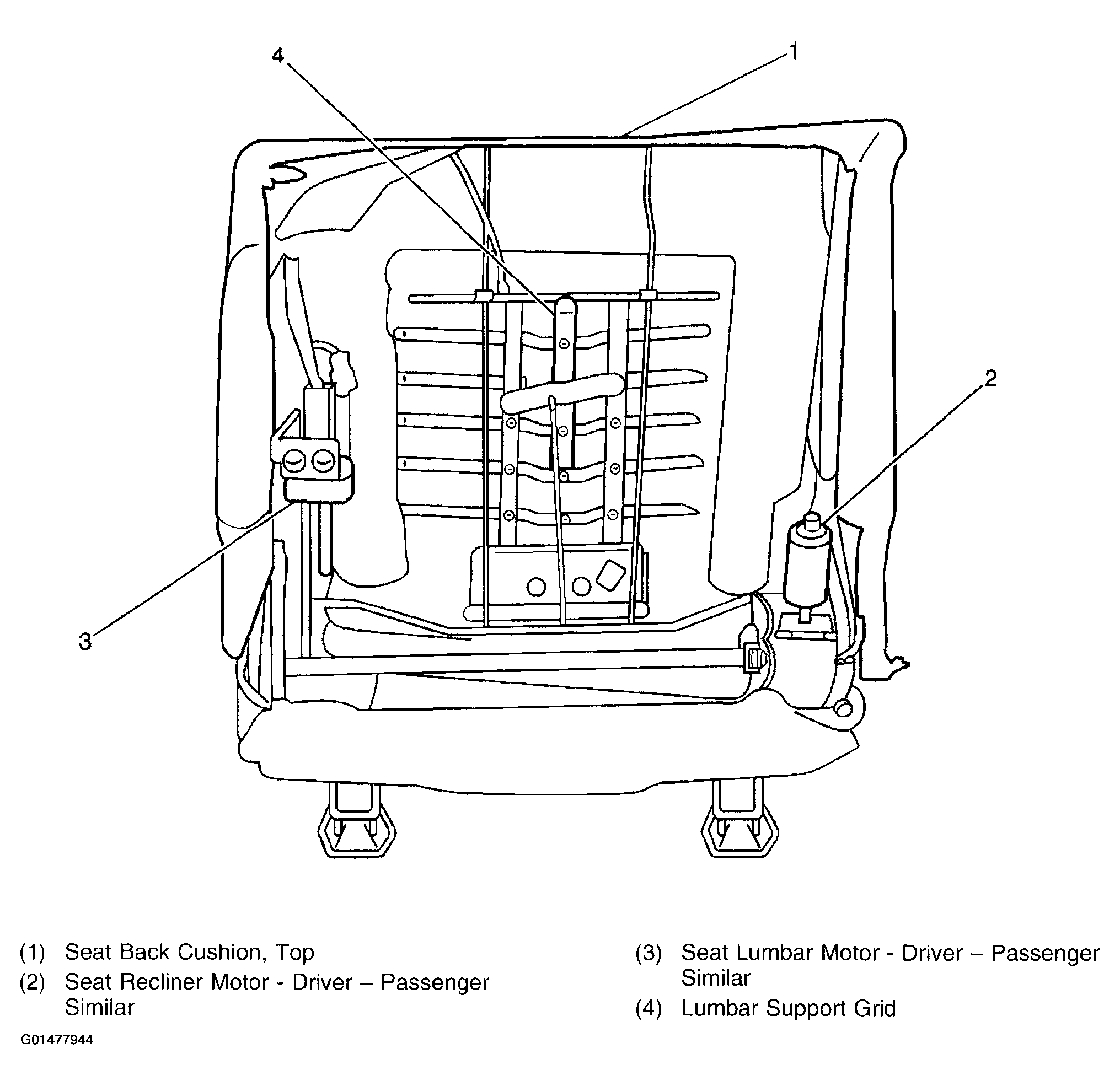

Fig 3: Seat Lumbar Motor & Seat Recliner Motor (8-Way w/o Memory)
G01477944Courtesy of GENERAL MOTORS CORP.

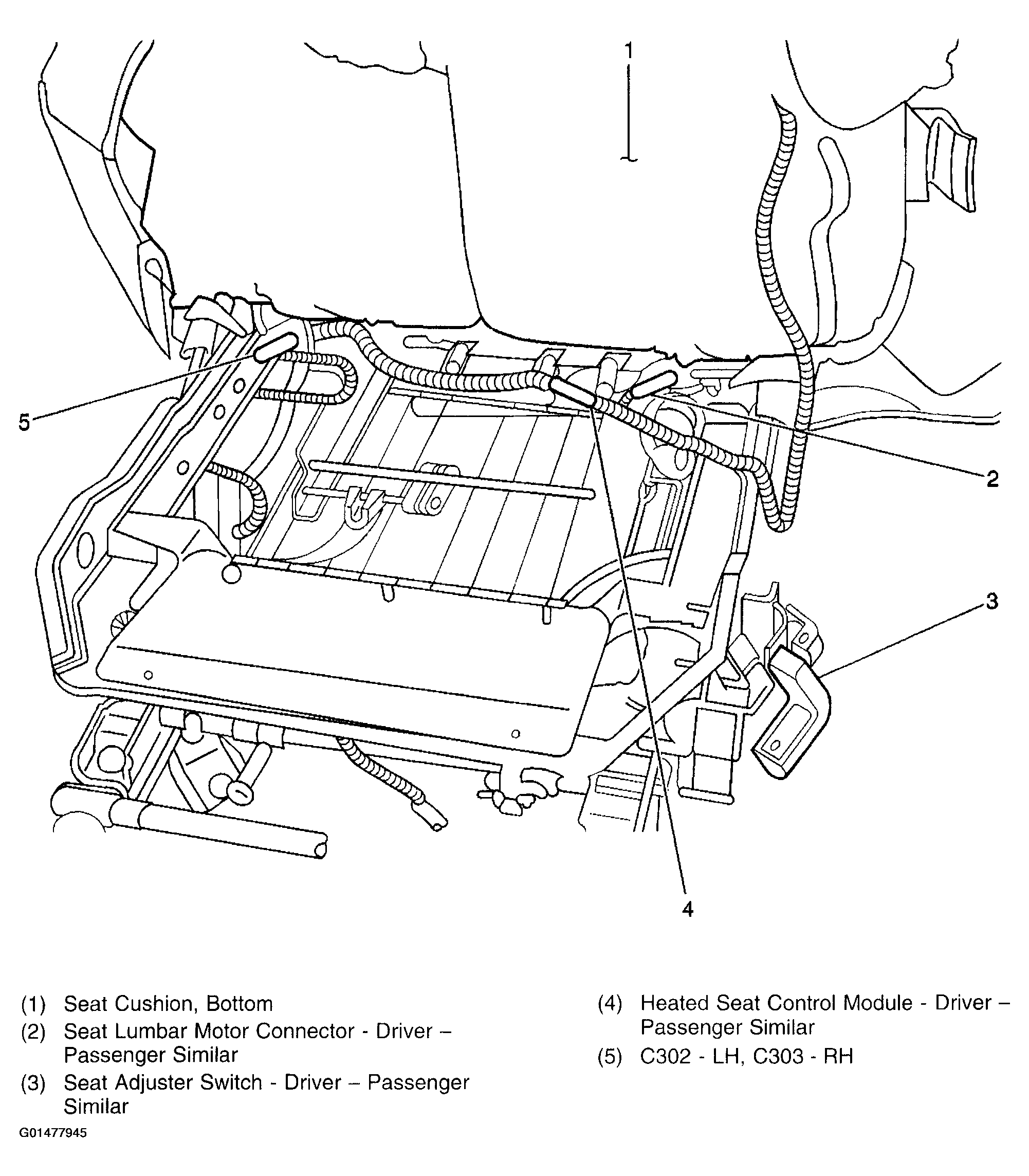

Fig 4: Seat Harness Routing (8-Way w/o Memory)
G01477945Courtesy of GENERAL MOTORS CORP.
