Transfer Case - NVG 233-NP1 (Unit Repair)
>>
Visual Identification
>>
Transfer Case Disassembled View
Transfer Case Disassembled View

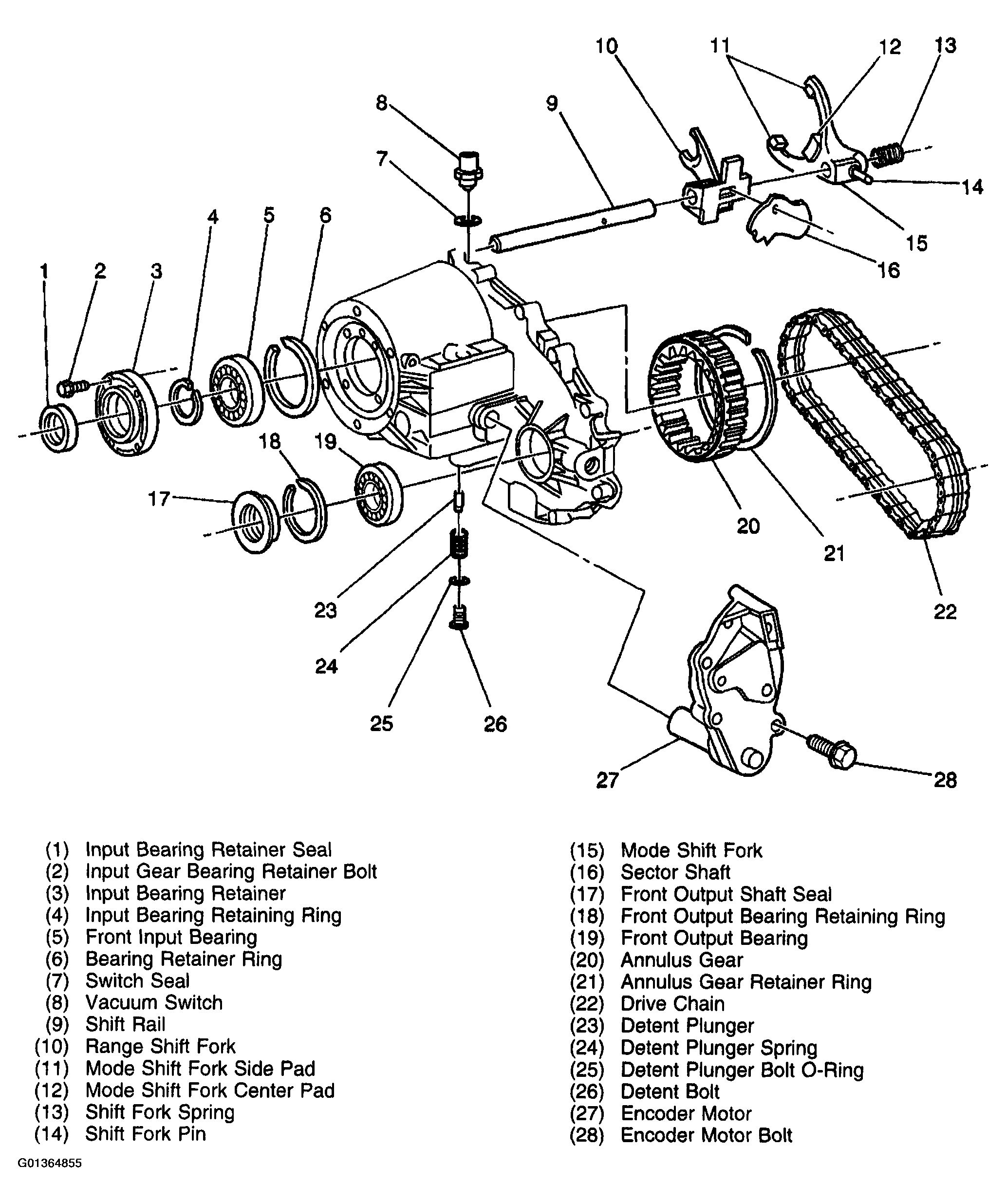

Fig 1: Case Components Disassembled View
Courtesy of GENERAL MOTORS CORP.

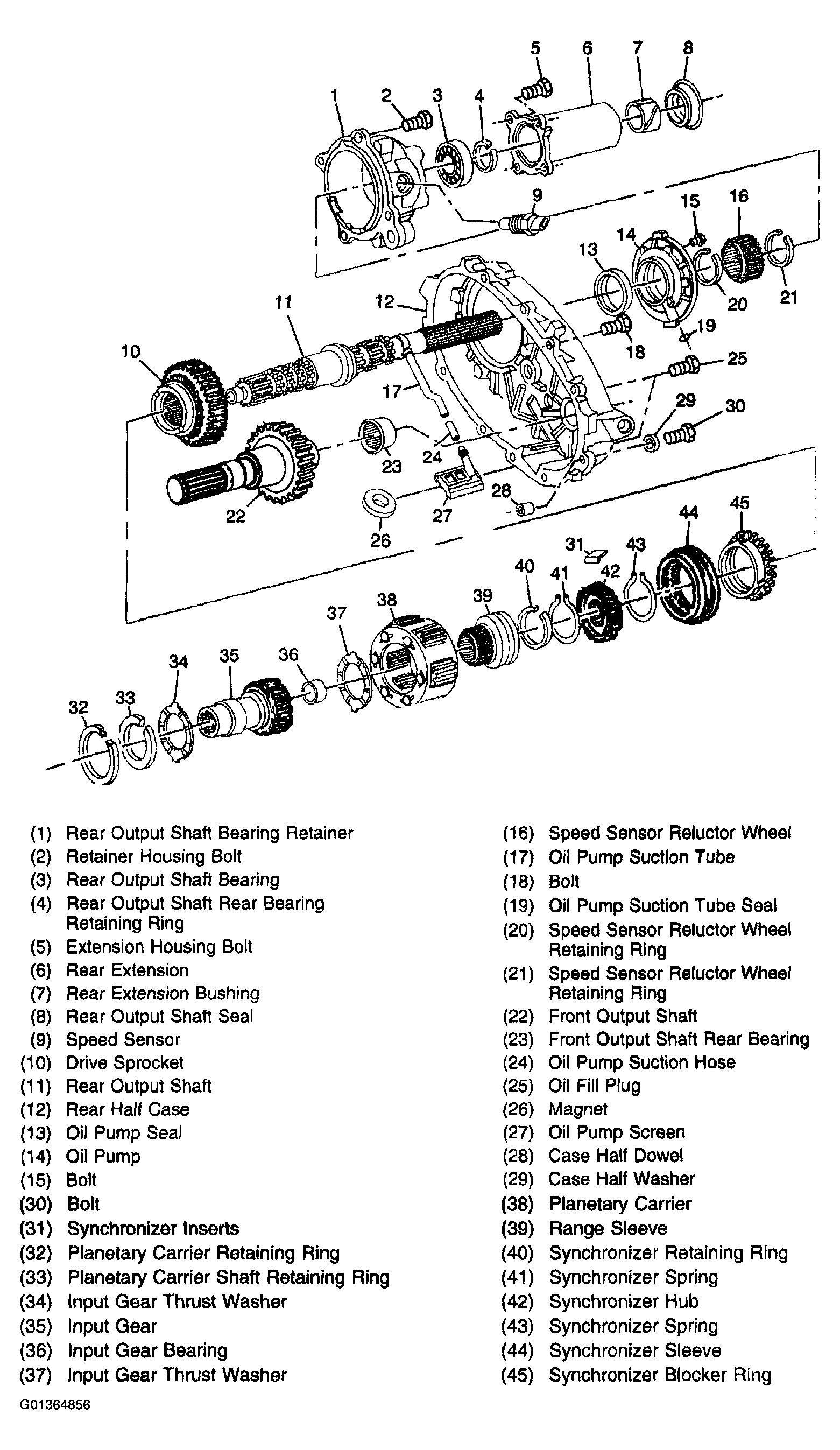

Fig 2: Rear Case And Drivetrain Components Disassembled View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
