Shift Lock Bypass Procedure

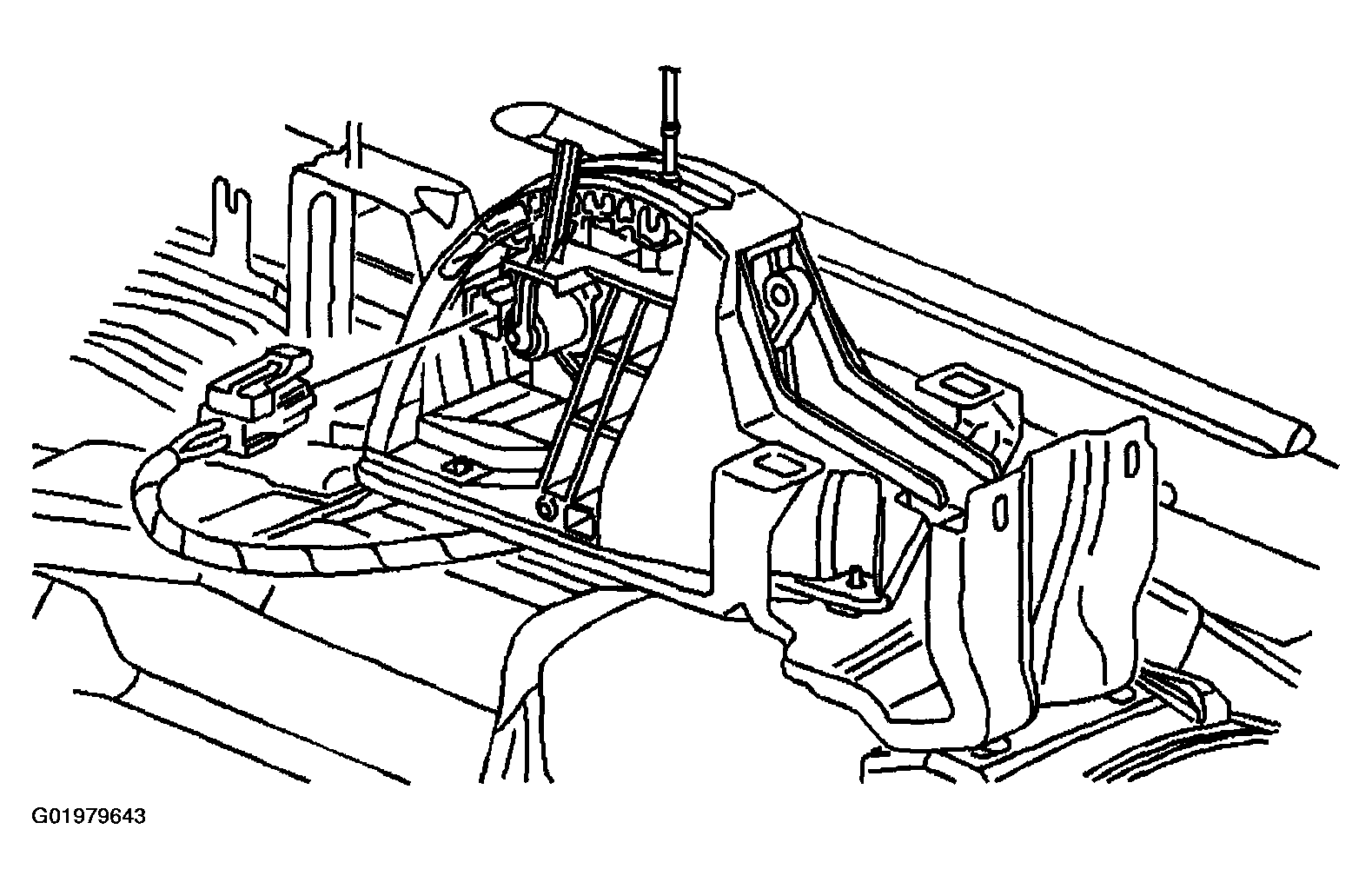

Fig 1: Disconnecting Electrical Connector
G01979643Courtesy of GENERAL MOTORS CORP.

In the event that service is required, a park lock solenoid manual release lever is located on the top right side of the floor shift assembly, under the shift lever trim boot. To operate the manual release lever, block the wheels and apply the parking brake. Lift the shift lever boot to expose the release lever. Push the release lever towards the front of the vehicle and move the shift lever to the neutral position.
