Propshaft Speed Sensor - Rear Connector End View

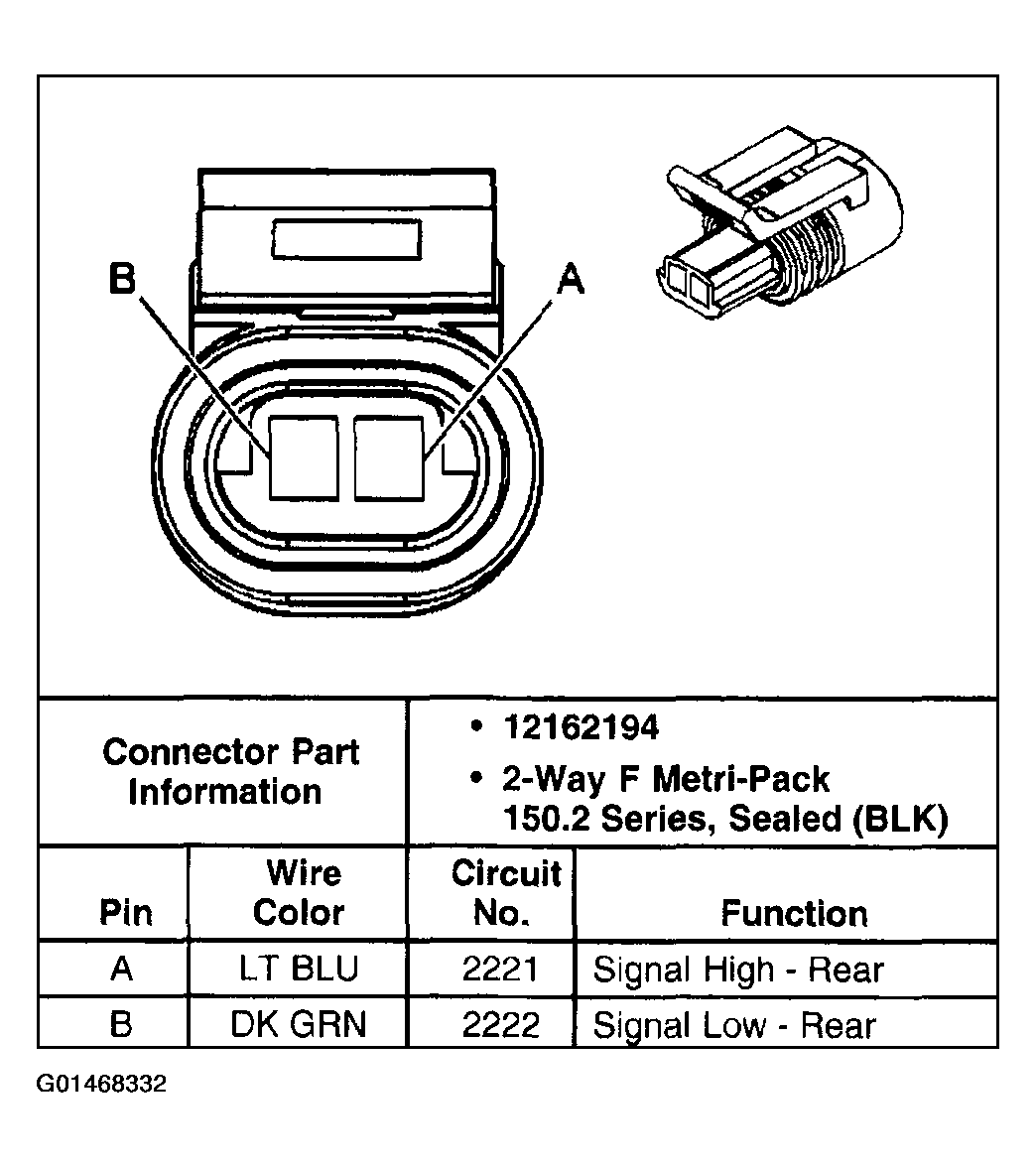

Fig 1: Propshaft Speed Sensor - Rear Connector End View

G01468332

Courtesy of GENERAL MOTORS CORP.
