Knock Sensor Harness Connector End View Terminals

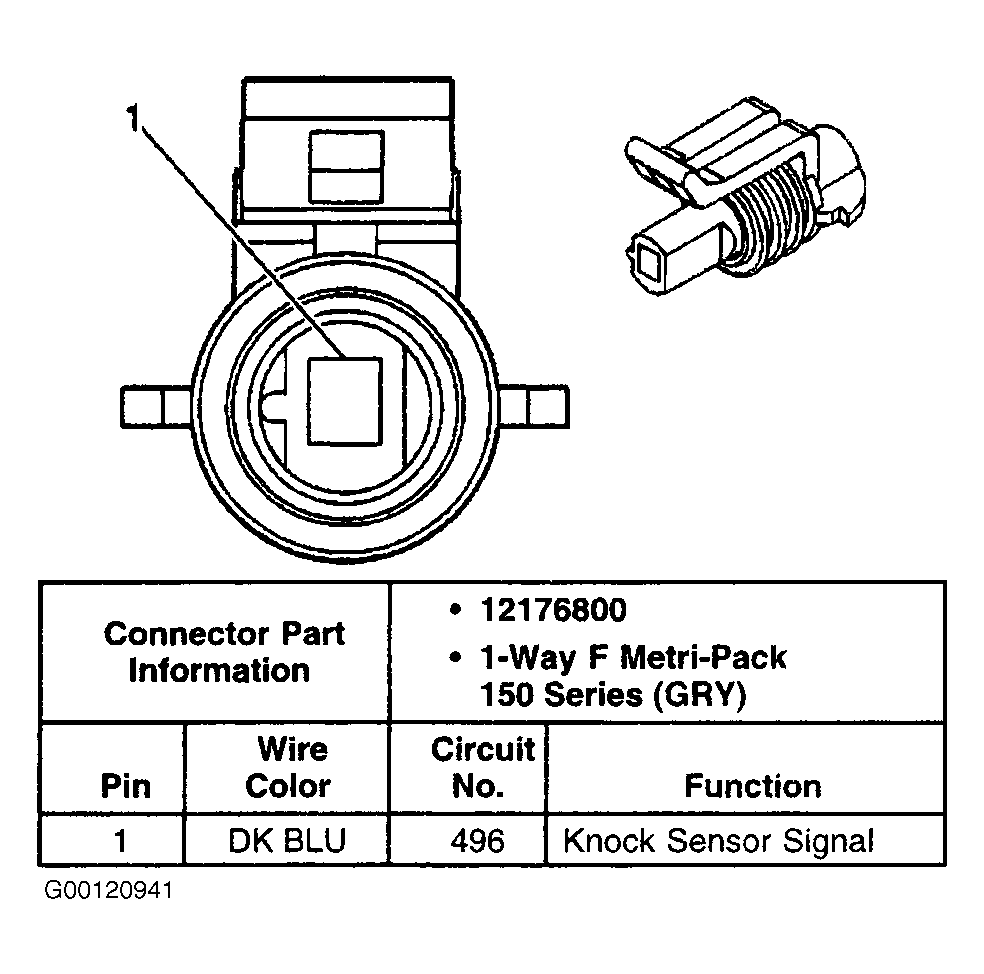

Fig 1: Knock Sensor Harness Connector End View Terminals

G00120941

Courtesy of GENERAL MOTORS CORP.
