HVAC Control Assembly Connector End View C3

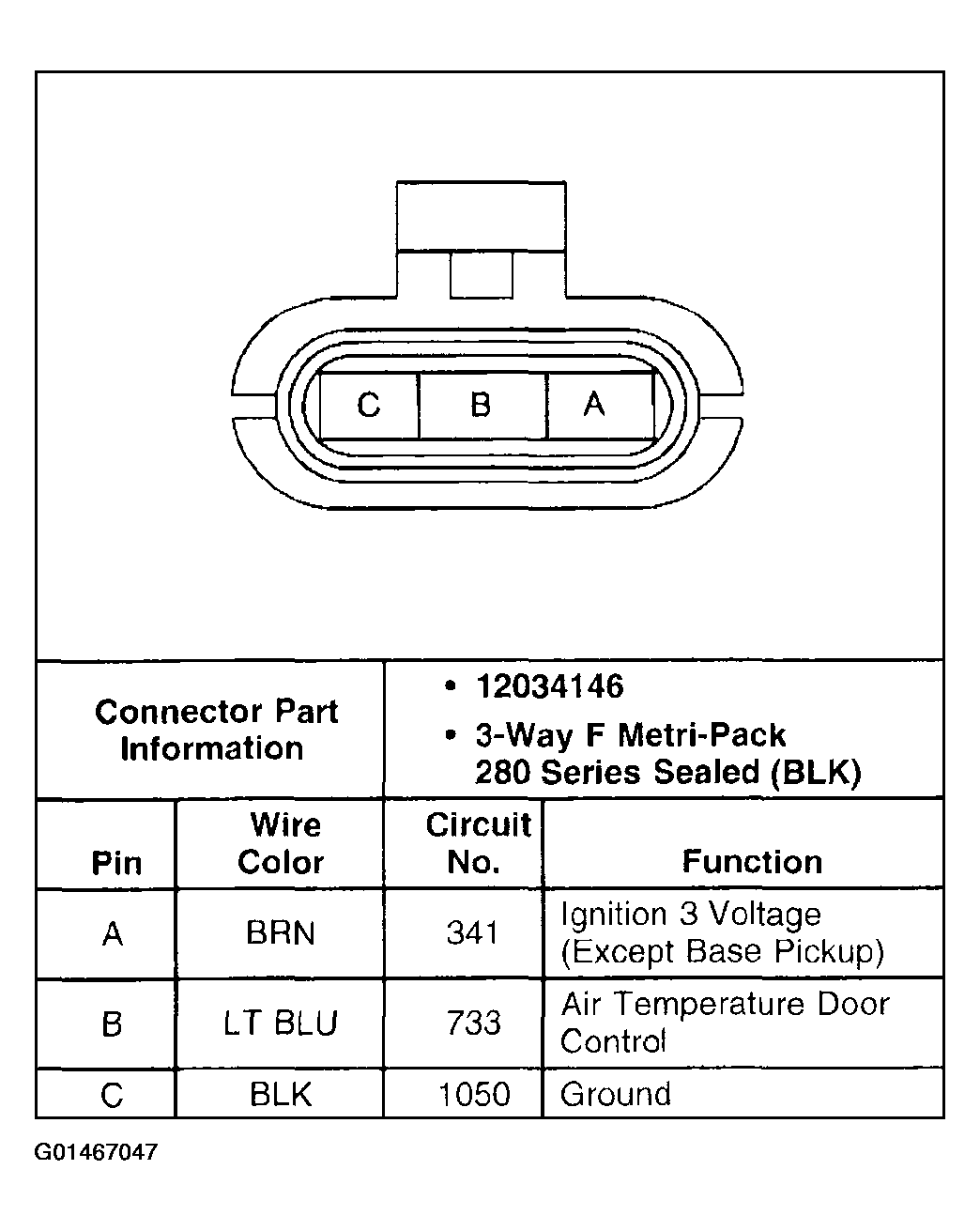

Fig 1: HVAC Control Assembly Connector End View C3

G01467047

Courtesy of GENERAL MOTORS CORP.
