HVAC Control Assembly Connector End View C1

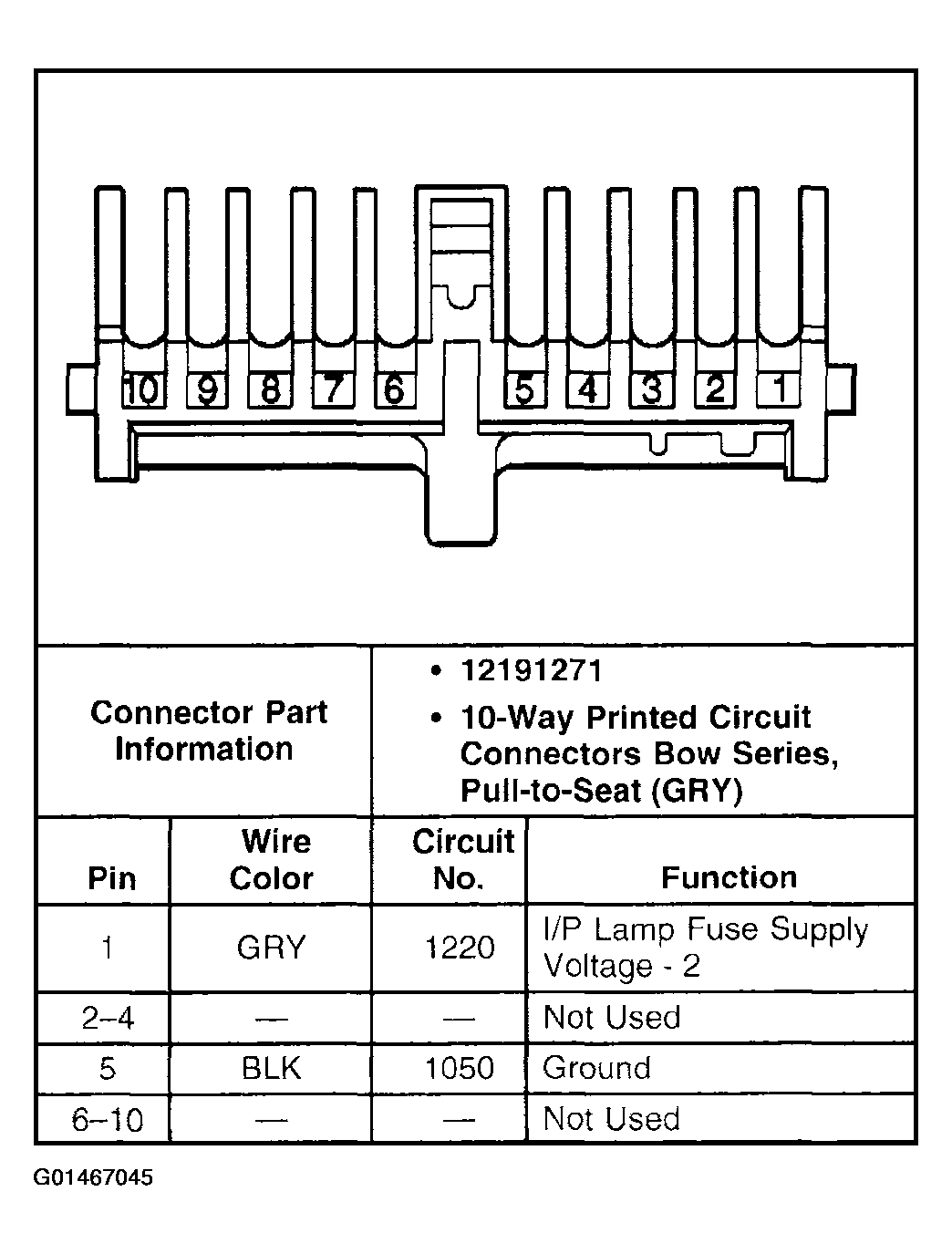

Fig 1: HVAC Control Assembly Connector End View C1

G01467045

Courtesy of GENERAL MOTORS CORP.
