A/C Compressor Clutch Connector End View

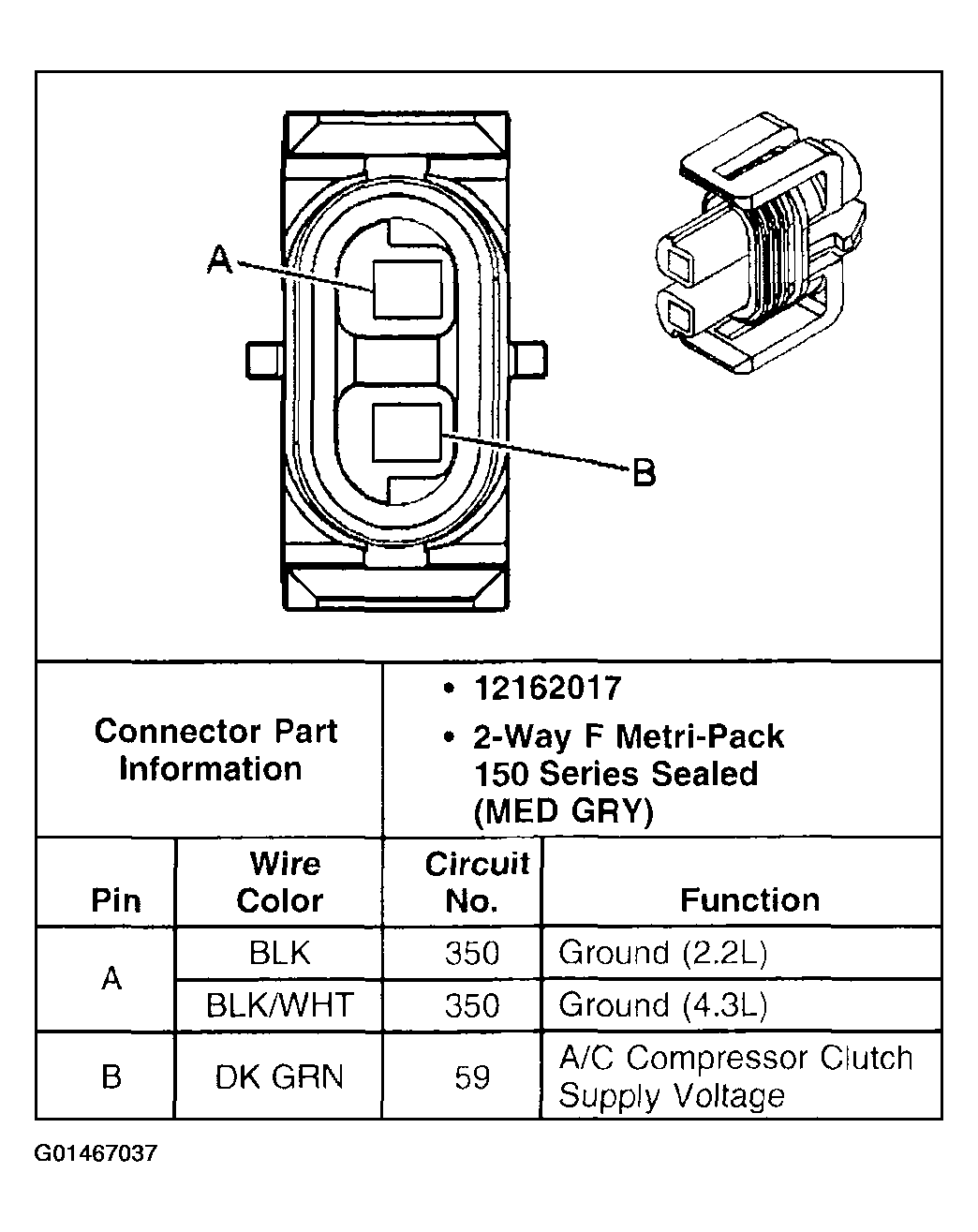

Fig 1: A/C Compressor Clutch Connector End View

G01467037

Courtesy of GENERAL MOTORS CORP.
