Automatic Transmission Electronic Component Views

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Electronic Components
GM1265859Courtesy of GENERAL MOTORS CORP.
Callout Component Name
36 Vehicle Speed Sensor (VSS)
66 Torque Converter Clutch (TCC) Solenoid Valve
69 Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch
367a 1-2 Shift Solenoid (SS) Valve
367b 2-3 Shift Solenoid (SS) Valve
377 Pressure Control (PC) Solenoid Valve
394 3-2 Shift Solenoid (SS) Valve Assembly
396 Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve

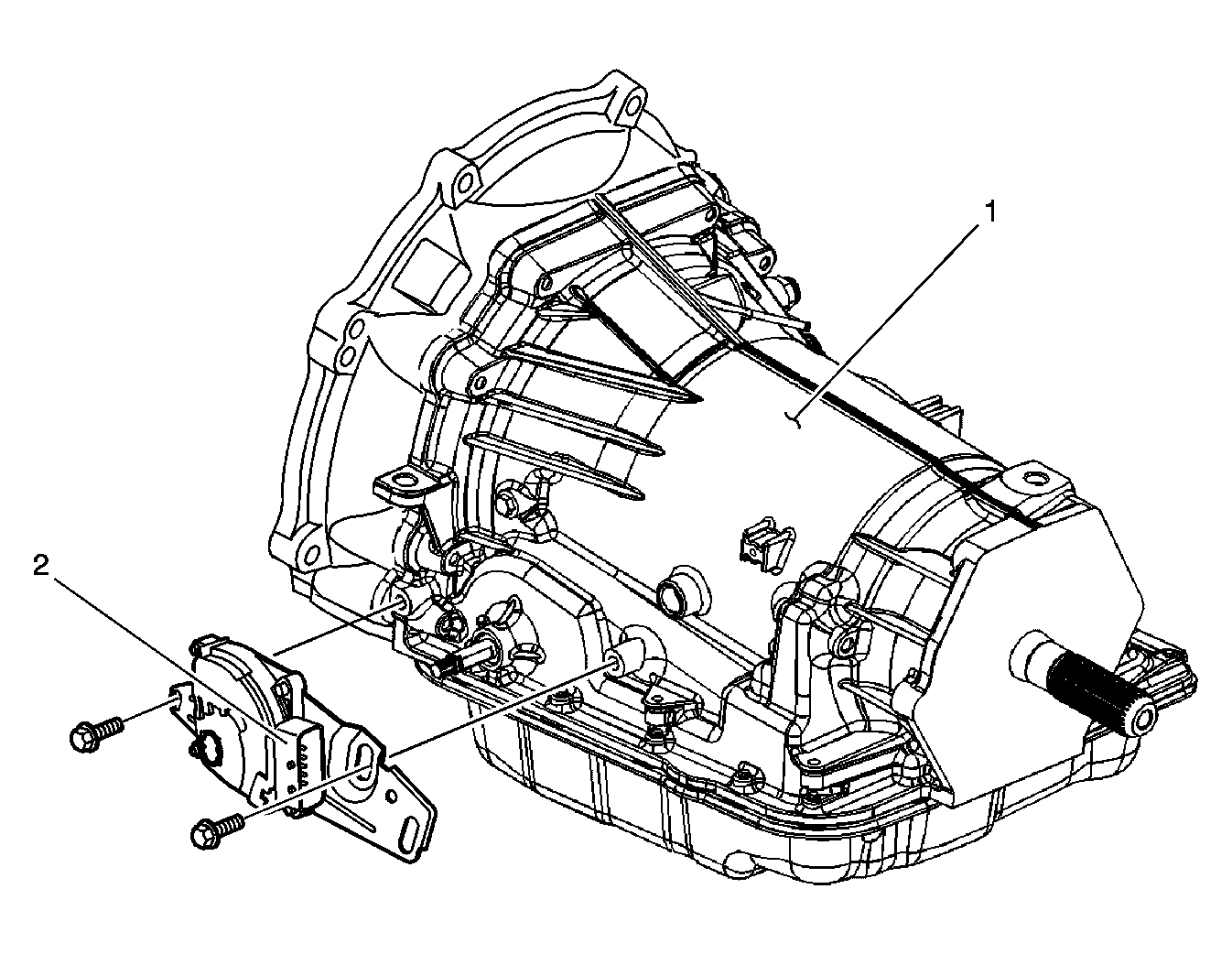

Fig 2: Park Neutral Position (PNP) Switch
GM1380389Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Automatic Transmission 4L60-E
2 PNP Switch

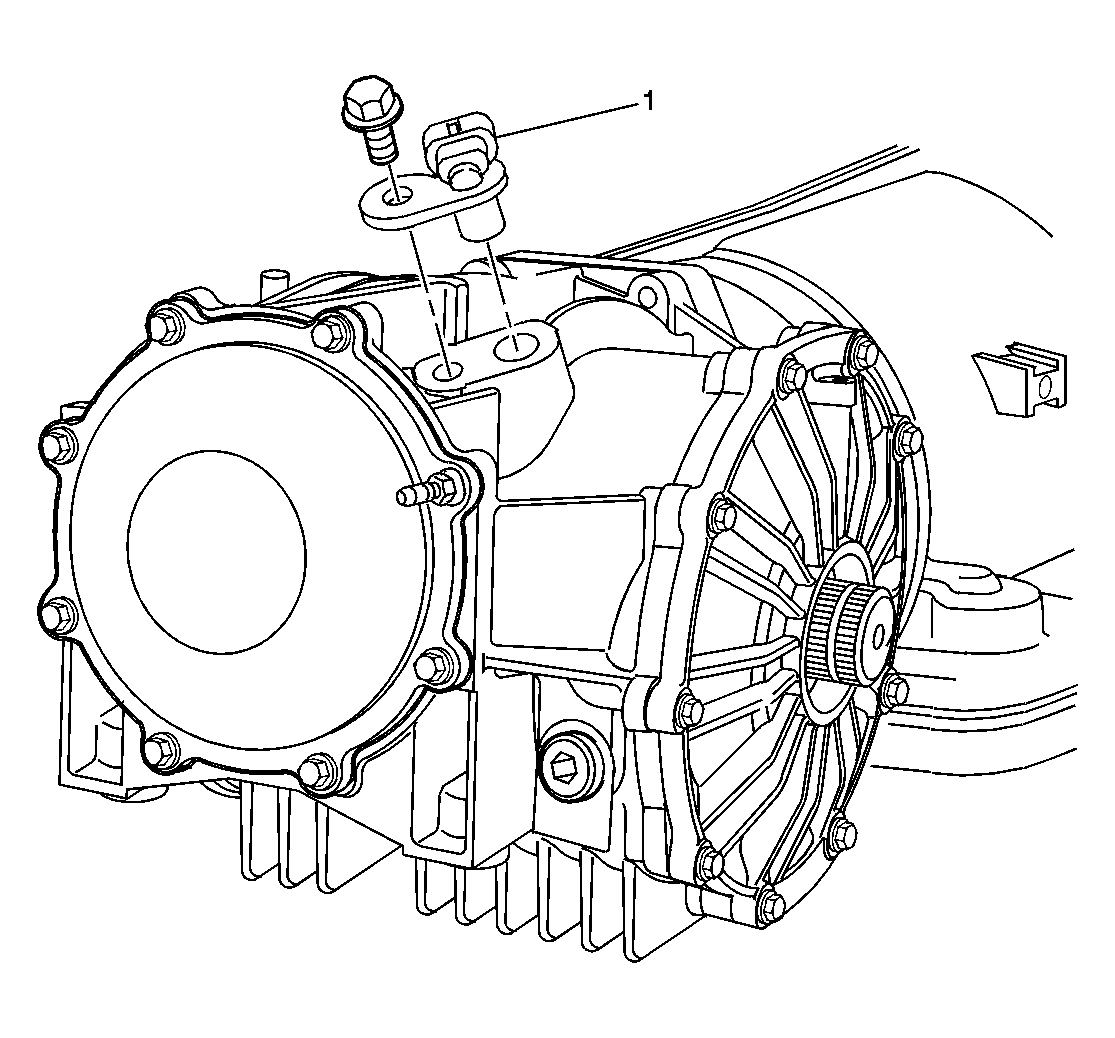

Fig 3: Vehicle Speed Sensor (VSS)
GM1380392Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 VSS Sensor
