Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws from the data link connector.
  2. Reposition the data link connector from the instrument panel.

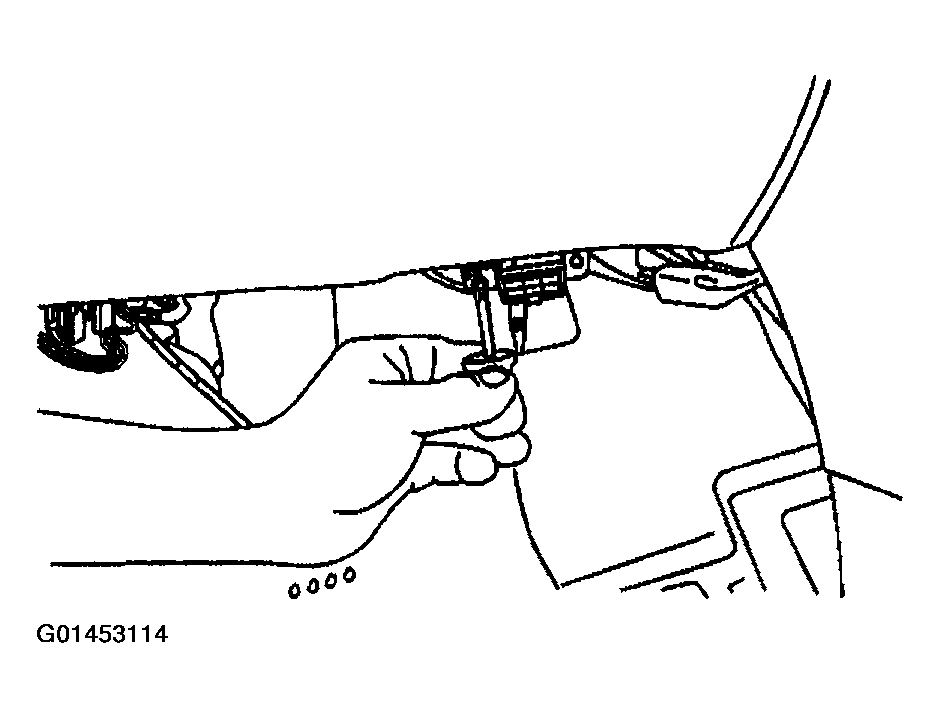

    Fig 1: Repositioning Data Link Connector From Instrument Panel
    G01453114Courtesy of GENERAL MOTORS CORP.
