Installation Procedure
- Install splash shield gasket.

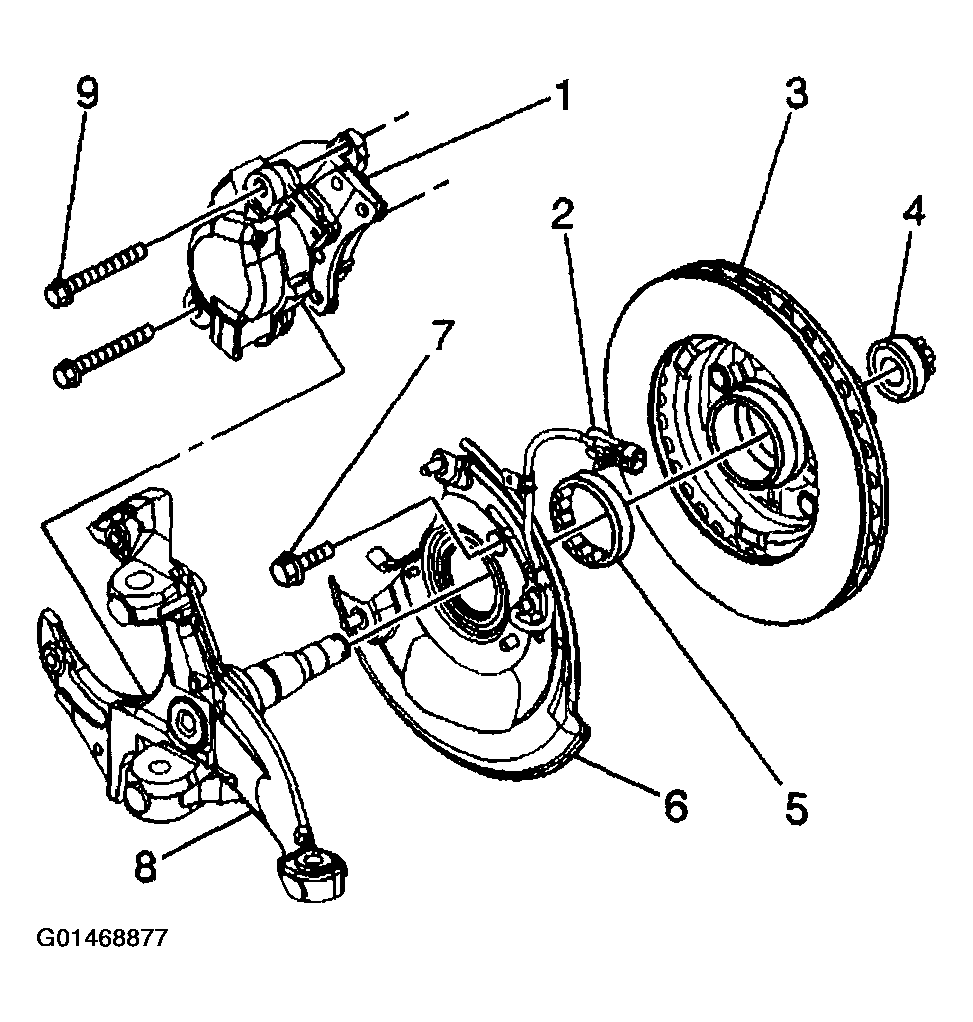

- Install wheel speed sensor and splash shield assembly (6).NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install two 11 mm splash shield mounting bolts.
Tighten
- Tighten the splash shield mounting bolts to 16 N.m (12 lb ft).
- Tighten the speed sensor mounting bolts (7) to 26 N.m (19 lb ft).
- Install harness clips to the wheel speed sensor wire.
- Locate the clip directly centered over the white paint mark on the wheel speed sensor cable.
- Install harness clips and 13 mm fastening bolt and nut to the front side of the upper control arm
- Install the hub and rotor. Refer to BRAKE ROTOR -- FRONT .
- Install brake caliper. Refer to BRAKE CALIPER -- FRONT SINGLE PISTON or BRAKE CALIPER -- FRONT DUAL PISTON .
- Install tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
- Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
