Installation Procedure
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.
Important: The new speed sensor will have a new O-ring. Dispose of the old O-ring. Lubricate the new O-ring lightly with bearing grease prior to installation. You may also lubricate the sensor just above and below the new O-ring. DO NOT lubricate the bore.

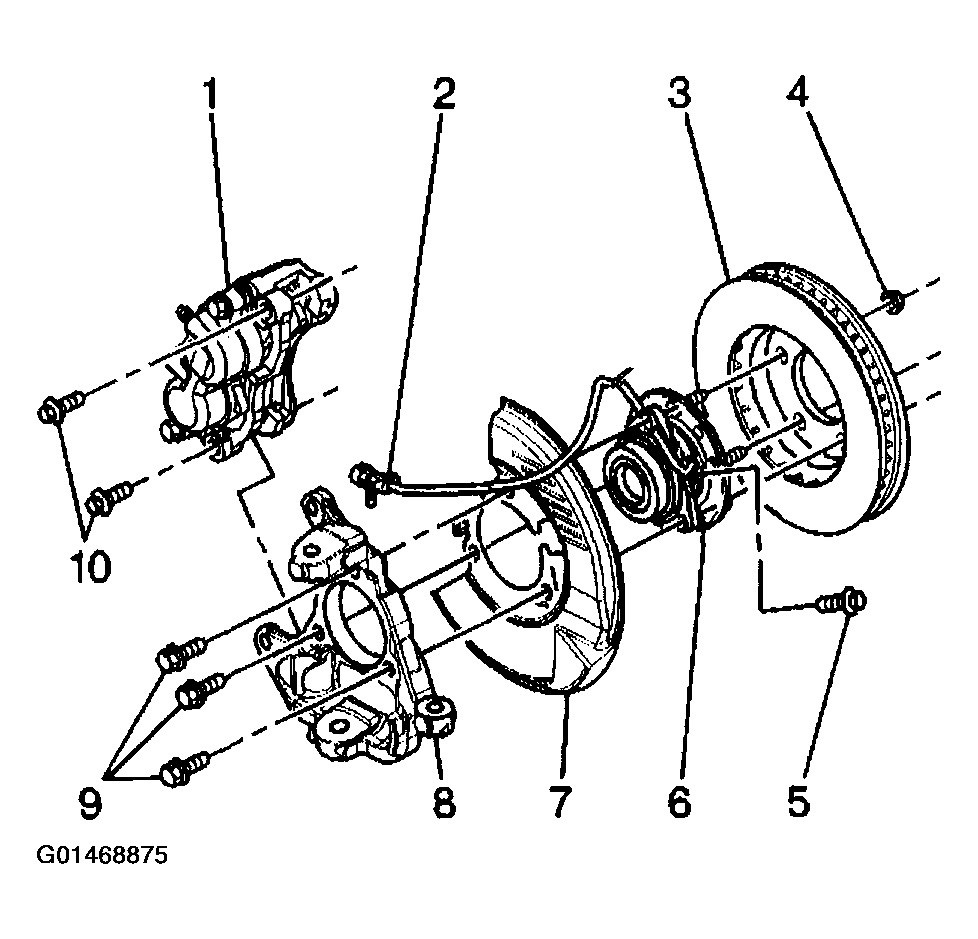

- Install sensor into the hub and bearing assembly (6).
Tighten
Tighten the sensor mounting screw (5) to 18 N.m (13 lb ft).
Important: The new sensor has new mounting clips already installed on the wire. DO NOT reuse the old clips.
- Connect the wheel speed sensor electrical connector (2).
- Install wheel speed sensor mounting clip to the frame rail.
- Install the wheel speed sensor mounting clip to the control arm.
- Install the hub and rotor. Refer to BRAKE ROTOR -- FRONT .
- Install brake caliper. Refer to BRAKE CALIPER -- FRONT SINGLE PISTON or BRAKE CALIPER -- FRONT DUAL PISTON .
- Install tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
- Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information
