Installation Procedure

Important:  Do not use RTV or any other type of sealant on the EBCM gasket or mating surfaces.

1. Install EBCM (2) onto BPMV (3).
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

   Important:  Do not reuse the old mounting bolts. Always install new bolts with the new BPMV.

2. Install the four EBCM bolts.

   Tighten

   Tighten the four bolts to 5 N.m (39 lb in) in an X-pattern.

3. Connect the 2 way ABS pump motor connector to the EBCM (2).
4. Install BPMV (3) to EHCU bracket (5).

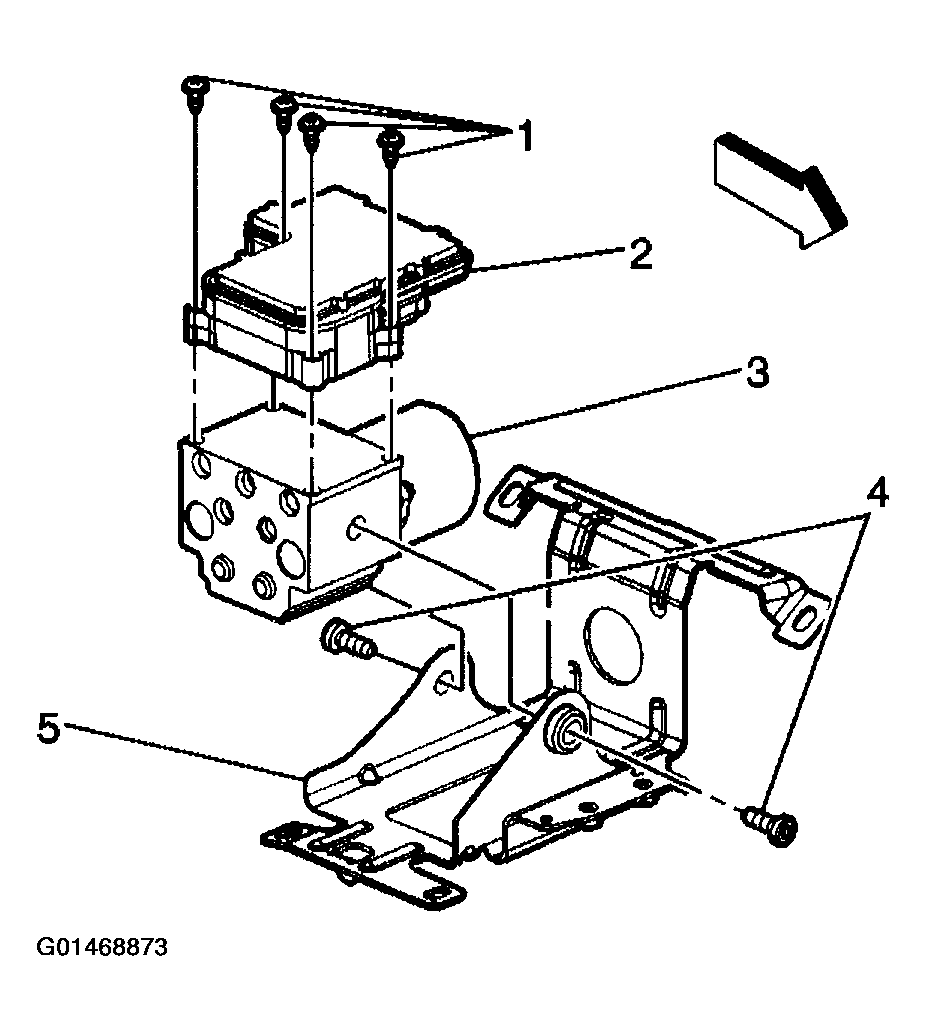

   Fig 1: Installing BPMV

   Courtesy of GENERAL MOTORS CORP.
5. Connect the two electrical harness connectors to the EBCM (2).

   Important:  The brake pipes are held in the proper place by a frame mounted plastic bracket. Make sure that the brake pipes stay in the correct place for proper reassembly.

6. Install the 5 brake pipes to the BPMV (3).

   Tighten

   Tighten the brake pipe fittings to 30 N.m (22 lb ft).

7. Bleed the brake system. Refer to ABS AUTOMATED BLEED PROCEDURE   .
