GMC
>>
2003
>>
Jimmy 2D Utility, Part Time, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Antilock Brake System
>>
Diagnostic Information and Procedures
>>
Scan Tool Data List
Scan Tool Data List

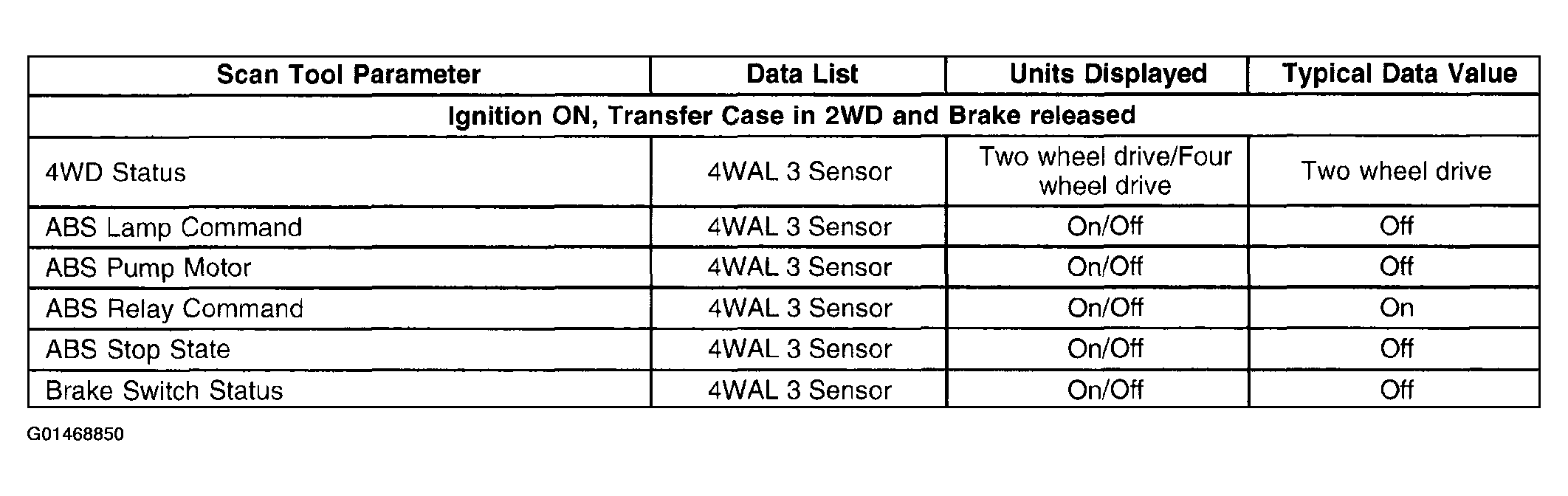

Fig 1: Scan Tool Data List (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

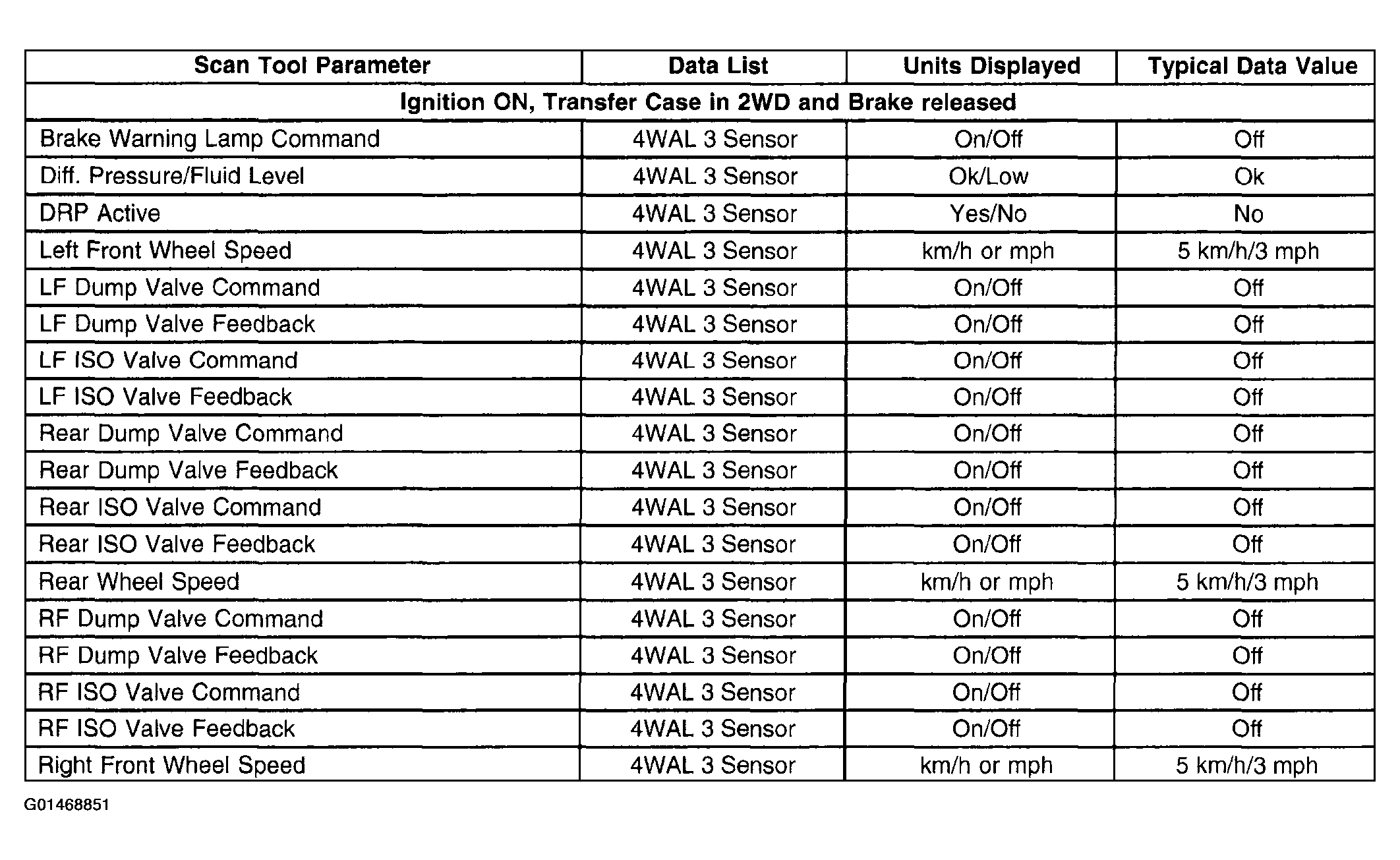

Fig 2: Scan Tool Data List (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
