Installation Procedure

  1. Install the door auxiliary weatherstrip to the vehicle.
  2. Position the weatherstrip and press the weatherstrip into place. Ensure that the retaining clips lock into place.

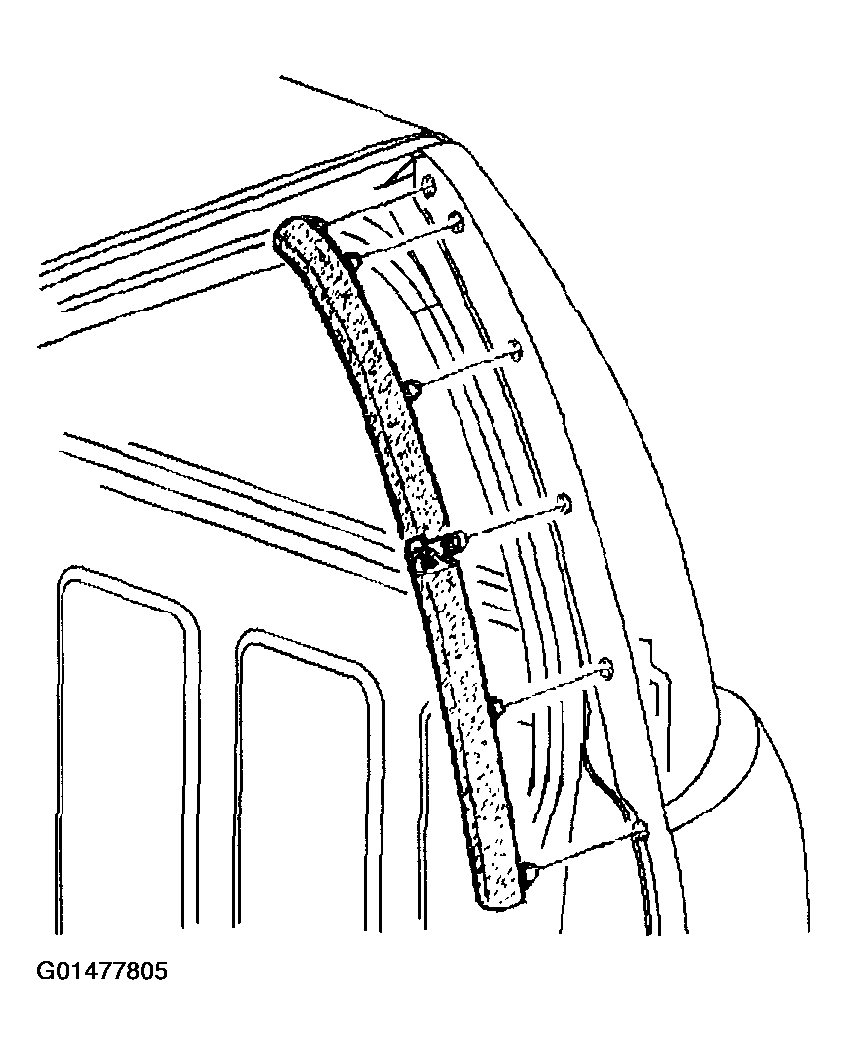

    Fig 1: Installing Door Auxiliary Weatherstrip To Vehicle
    G01477805Courtesy of GENERAL MOTORS CORP.
