Installation Procedure
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.

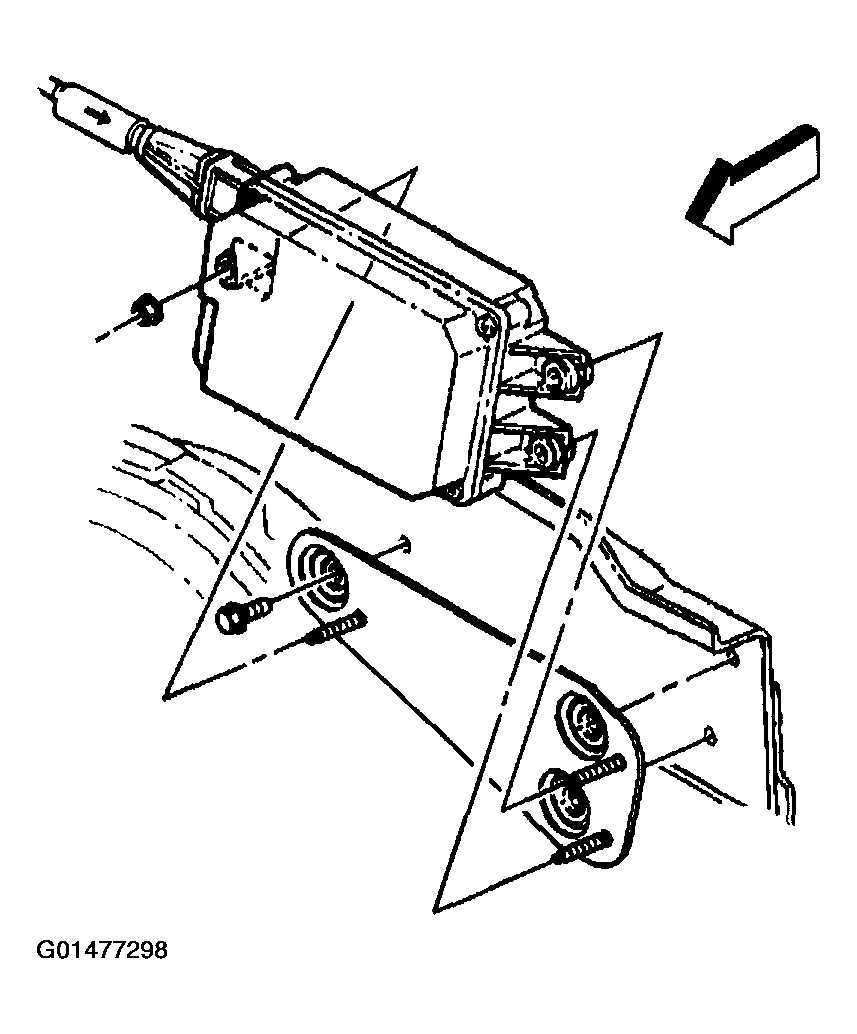

- Install the mounting bracket to the cowl panel with the 3 screws.
Tighten
Tighten the cruise control module bracket screws to 4.5 N-m (40 lb in).
- Install the cruise control module to the vehicle.
- Install the 3 nuts that retain the cruise control module to the mounting bracket.
Tighten
Tighten the cruise control module nuts to 9.0 N-m (6.6 lb ft).
- Connect the electrical connector.
- Install the cruise control cable. Refer to CRUISE CONTROL CABLE REPLACEMENT (4.3L) or CRUISE CONTROL CABLE REPLACEMENT (2.2L) .
- Connect the battery negative cable.
- Test the systems operation.
