Removal Procedure

  1. Raise and suitably support the vehicle with safety stands. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the steering linkage shield bolts and the washers.
  3. Remove the steering linkage shield.

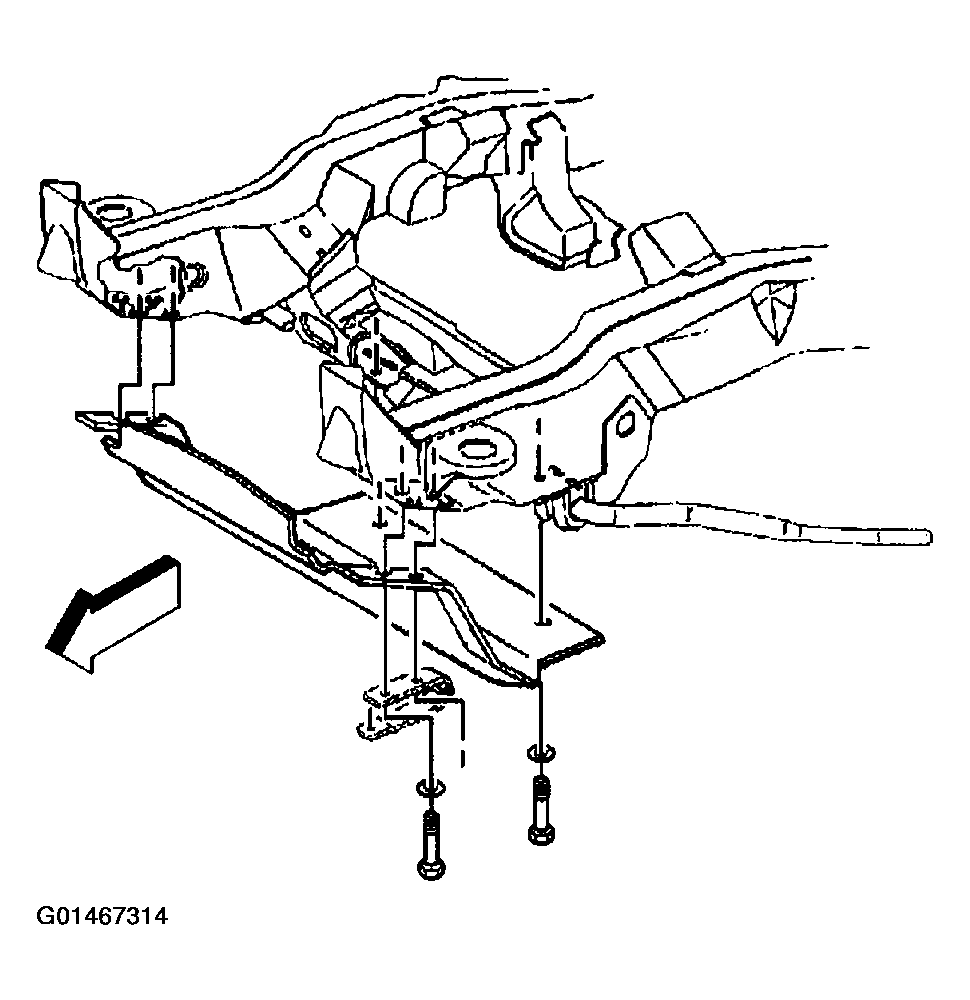

    Fig 1: Steering Linkage Shield Bolts & Washers
    G01467314Courtesy of GENERAL MOTORS CORP.
