Assembly Procedure

  1. Install the flow control spring (2) to the pump housing assembly (1).
  2. Install the control valve assembly (3) to the flow control spring (2).

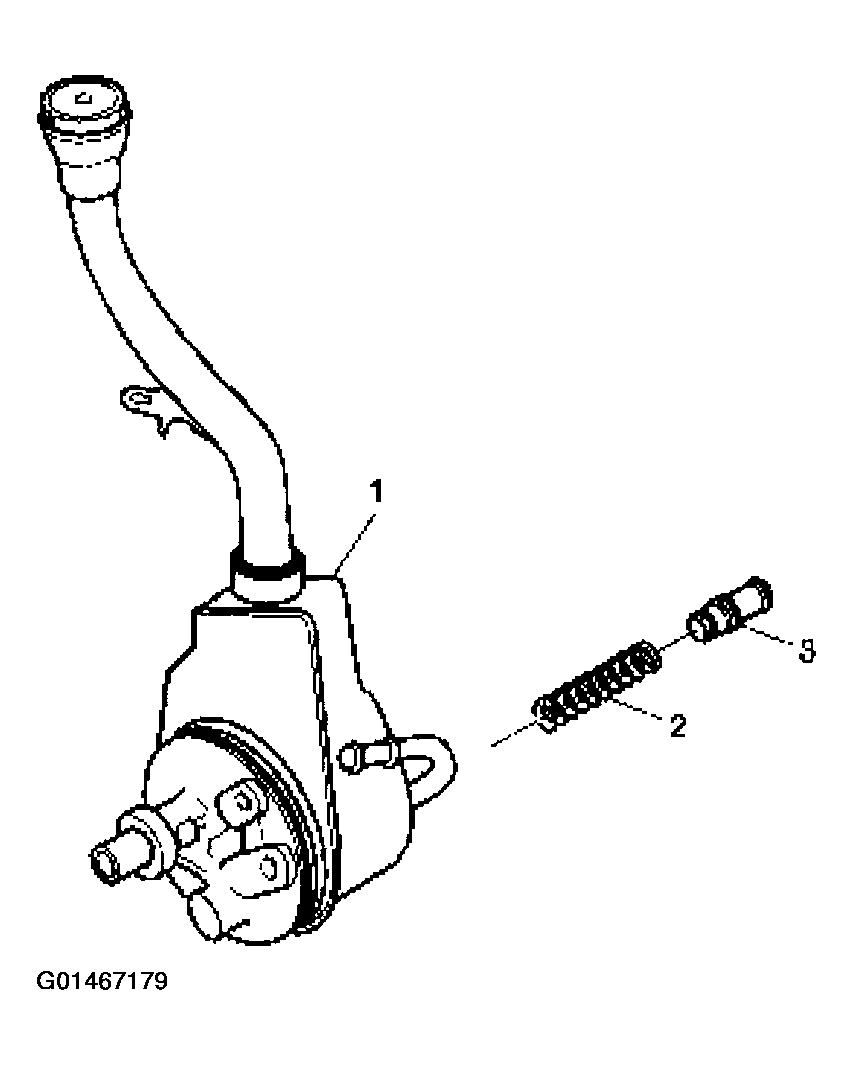

    Fig 1: Installing Flow Control Spring & Control Valve Assembly To Pump Housing Assembly
    G01467179Courtesy of GENERAL MOTORS CORP.
  3. Install the O-ring seal (3) to the connector and fitting assembly (4).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the connector and fitting assembly (4) to the pump housing (1).

    Tighten

    Tighten the connector and fitting assembly (4) to 75 N.m (55 lb ft).

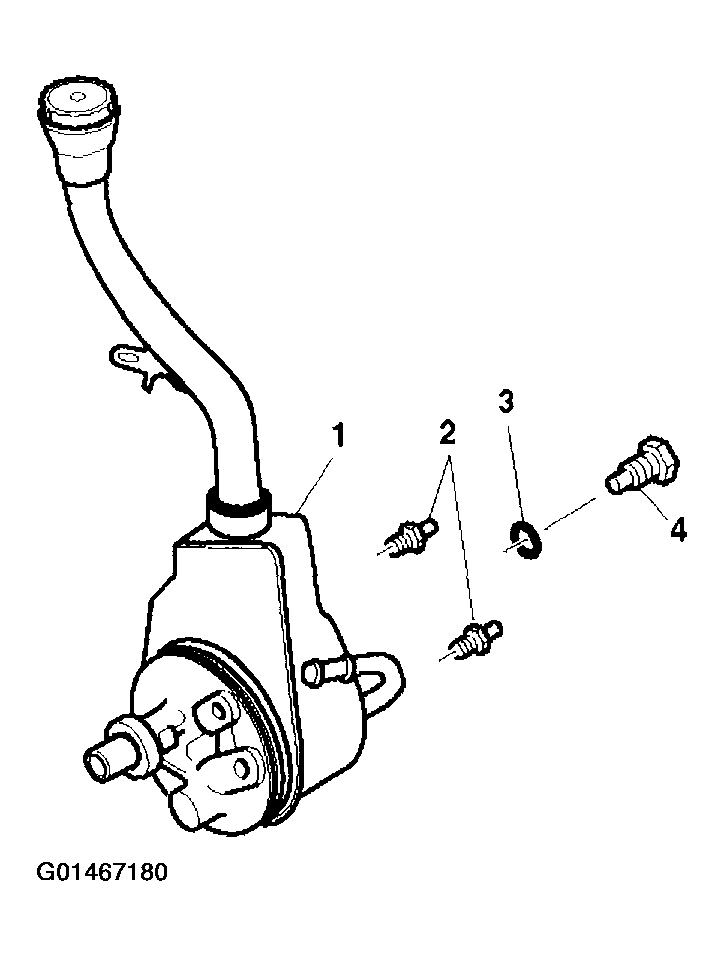

Fig 2: Installing Connector & O-Ring Seal To Pump Housing Assembly
G01467180Courtesy of GENERAL MOTORS CORP.
