Power Steering Gear Disassembled View (700 Gear)

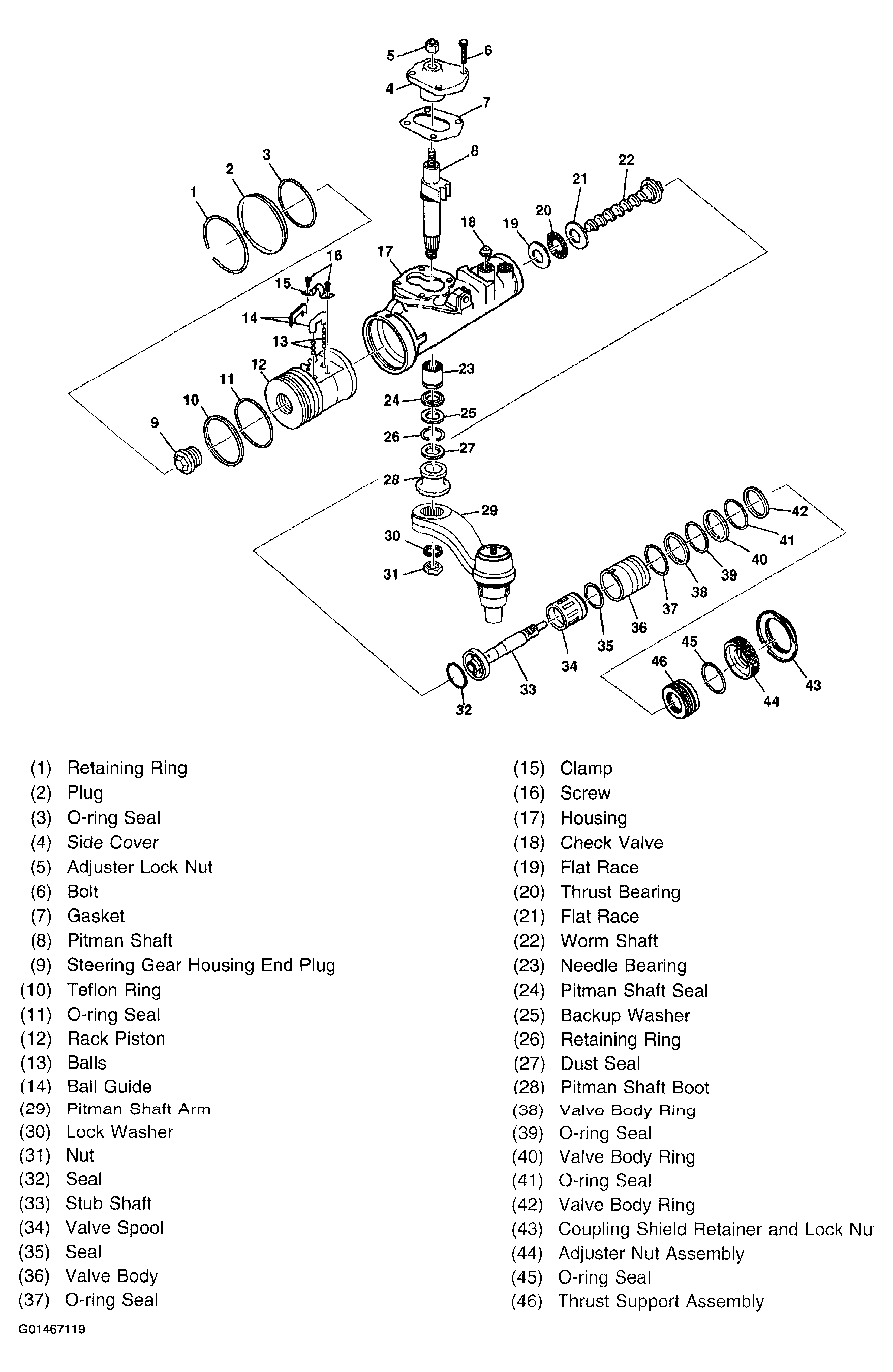

Fig 1: Power Steering Gear

G01467119

Courtesy of GENERAL MOTORS CORP.
