Installation Procedure

NOTE: Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE in Cautions and Notices.
  1. Install the power steering cooler hose to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Connect the power steering cooler hose to the power steering cooler.

    Tighten

    Tighten the power steering cooler hose to the power steering cooler clamp to 2 N.m (18 lb in).

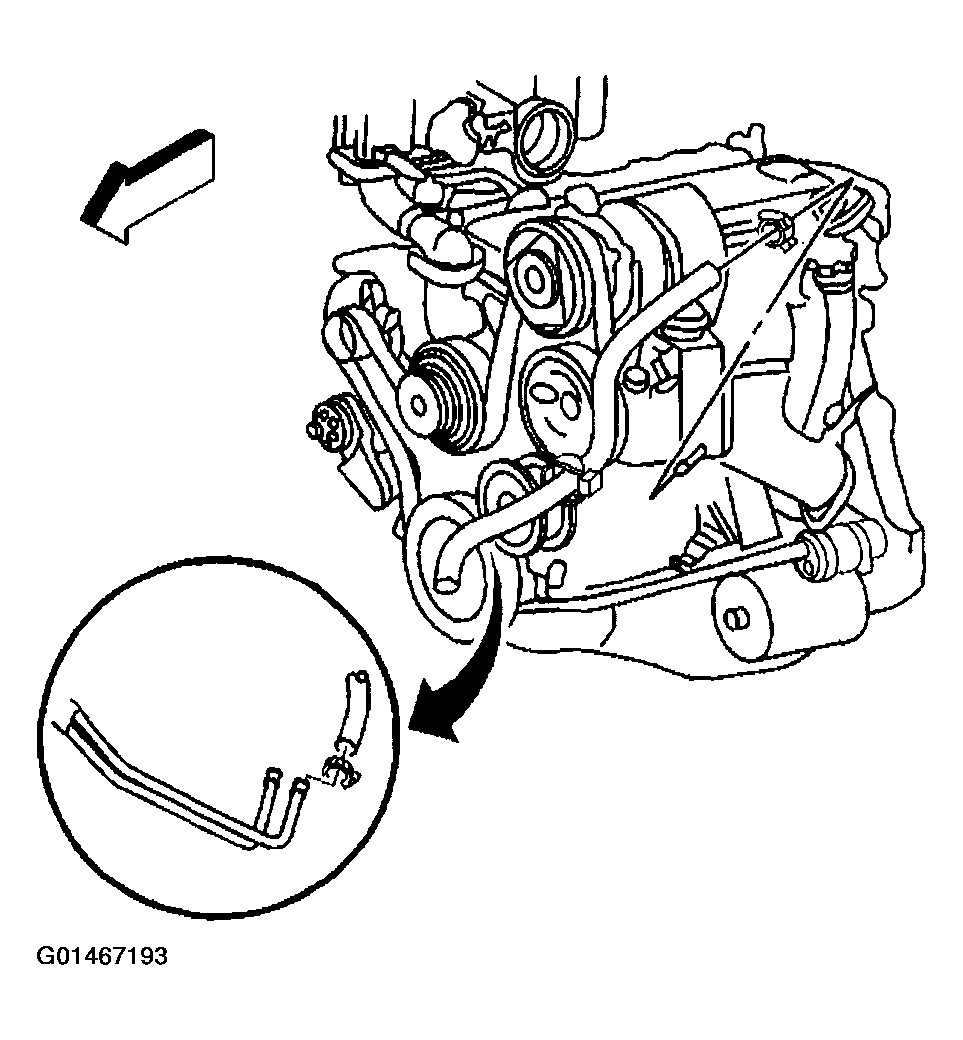

    Fig 1: Installing Power Steering Cooler Hose To Power Steering Cooler
    G01467193Courtesy of GENERAL MOTORS CORP.
  3. Connect the power steering cooler hose to the power steering pump.

    Tighten

    Tighten the power steering cooler hose to the power steering pump clamp to 2 N.m (18 lb in).

  4. Remove the drain pan from under the vehicle.
  5. Install the air cleaner assembly.
  6. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .

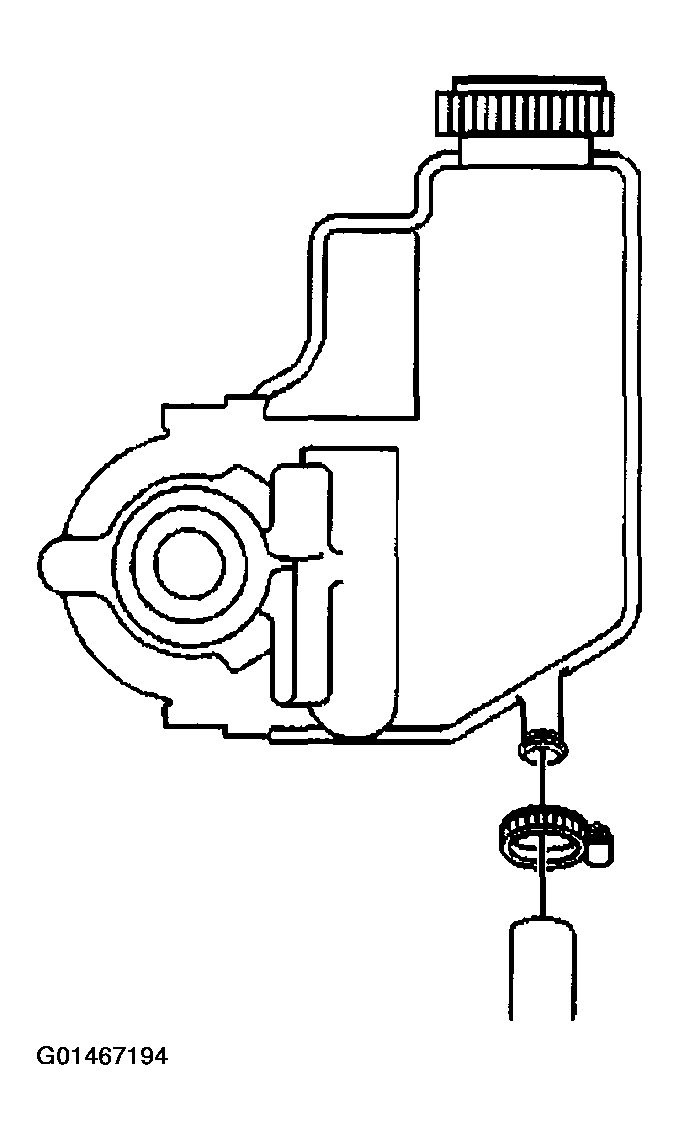

Fig 2: Connecting Power Steering Cooler Hose To Power Steering Pump
G01467194Courtesy of GENERAL MOTORS CORP.
