Installation Procedure

  1. Position the cargo tie down loop on the floor.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the cargo tie down loop to the floor with the mounting bolt.

    Tighten

    Tighten the cargo tie down loop mounting bolt to 35 N.m (26 lb ft).

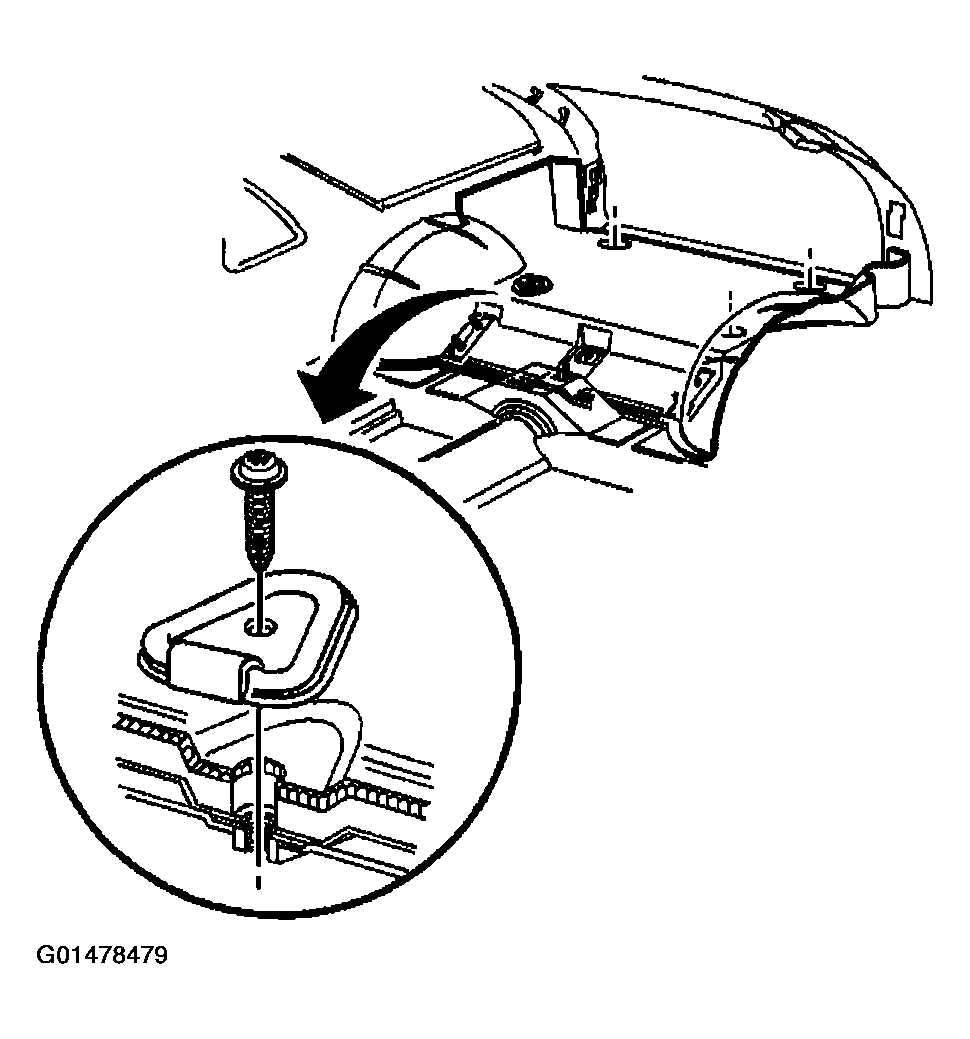

    Fig 1: Installing Cargo Tie Down Loop & Bolt (Utility)
    G01478479Courtesy of GENERAL MOTORS CORP.
