Section 15 (Automatic Transmission Servicing): Identification: Transmission
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

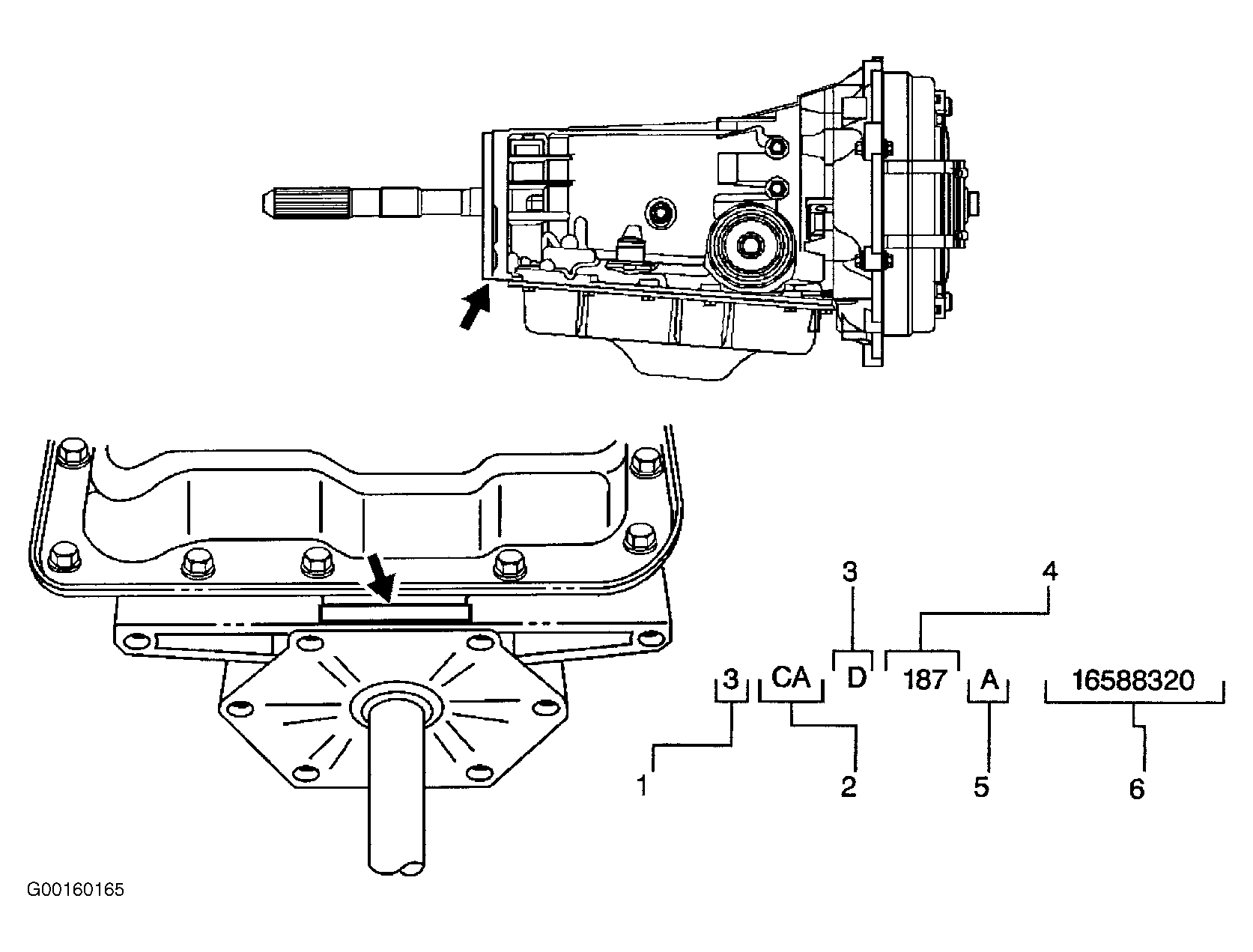

The transmission identification number is located behind the oil pan. See Fig 1 . For ID number breakdown, see IDENTIFICATION NUMBER SYSTEM table.
IDENTIFICATION NUMBER SYSTEM
| Position | Definition | Character | Description |
|---|---|---|---|
| 1 | Model Year | 3 | 2003 |
| 2 | Model | CA | Corvette |
| 3 | Transmission Type | D | RPO M30, HYDRA-MATIC 4L60-E |
| 4 | Julian Date | 187 | Day Of Year |
| 5 | Shift Built | A, B, J-First Shift; C, H, W-Second Shift | ..... |
| 6 | Serial No. | 16588320 | ..... |
