Terminal Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Follow the steps below in order to remove terminals from Micro 64 connectors.

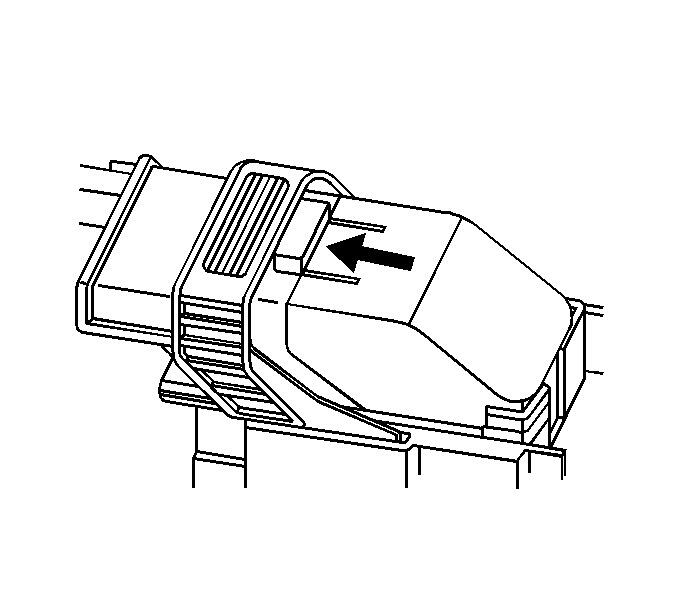

    Fig 1: Identifying Wire Dress Cover Lever Lock
    GM863406Courtesy of GENERAL MOTORS CORP.
  1. Locate the lever lock on the wire dress cover. While depressing the lock, pull the lever over and past the lock.
  2. Disconnect the connector from the component.

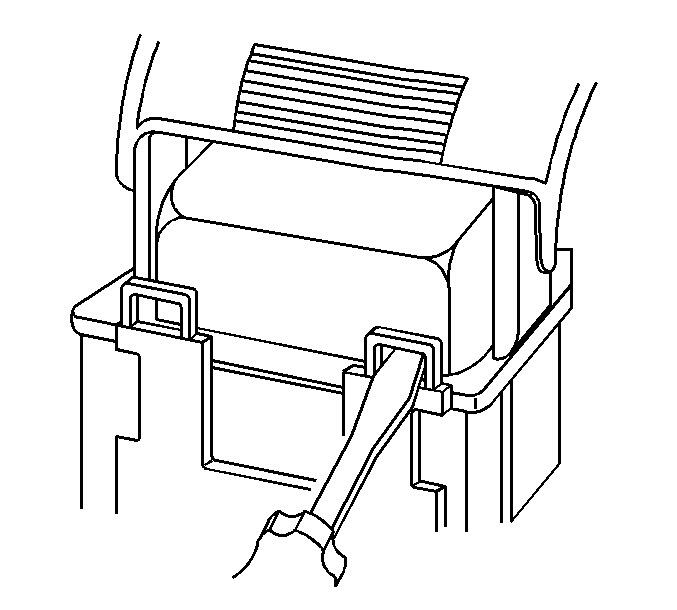

  3. Fig 2: Loosening Dress Cover Locking Tabs
    GM863404Courtesy of GENERAL MOTORS CORP.
  4. Locate the dress cover locking tabs at the front of the connector. Using a small flat-blade tool push down on one of the locking tabs and pull the cover up until the dress cover releases. Repeat this procedure for the other locking tab.
  5. Once the front 2 locks are unlocked, lift the front of the dress cover and pull it forward.

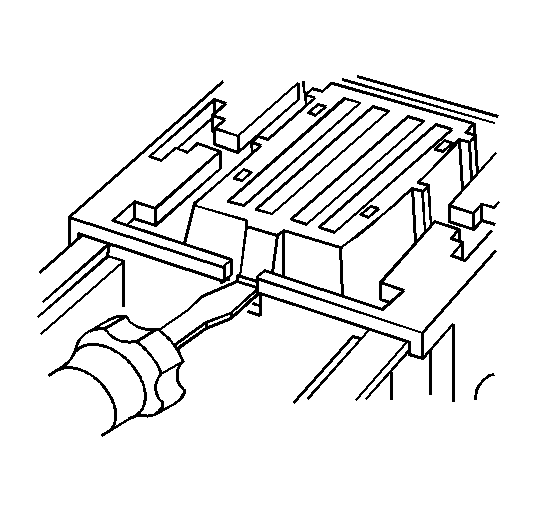

  6. Fig 3: Removing Connector Nose Piece
    GM863403Courtesy of GENERAL MOTORS CORP.
  7. If the connector has a nose piece, use a small flat-blade tool to remove the nose piece by inserting the blade into the slot on the front of the connector and prying up on the nose piece.

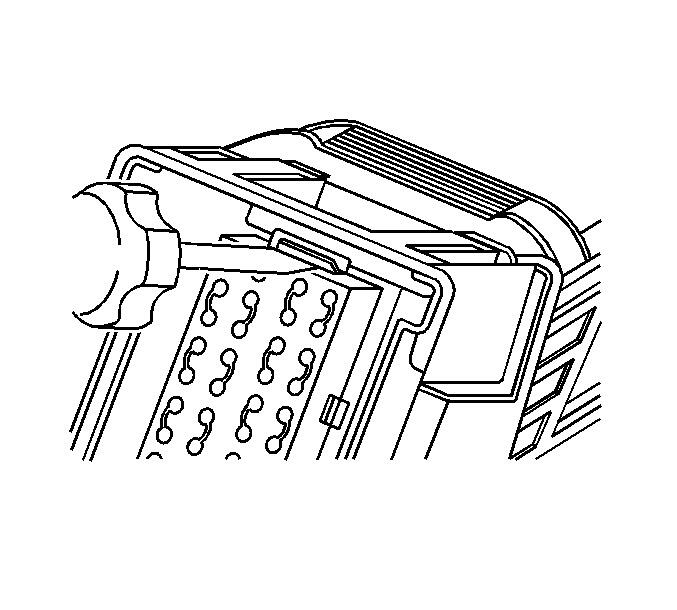

  8. Fig 4: Removing TPA By Inserting Small Flat Blade Into Small Slot
    GM863400Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Always use care when removing a terminal position assurance (TPA) in order to avoid damaging it.
  9. Remove the TPA by inserting a small flat-blade tool into the small slot on the TPA and pushing down until the TPA releases. Gently pry the TPA out of the connector.

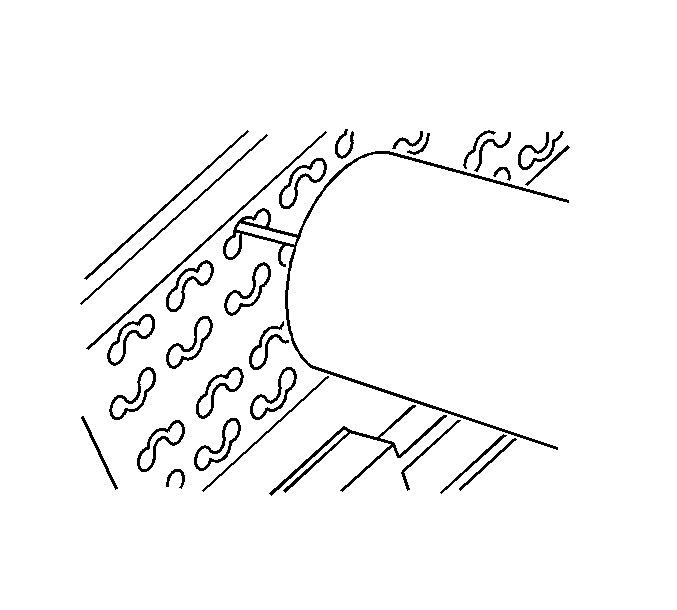

  10. Fig 5: Identifying Terminal Release Tool
    GM863397Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Be careful not to angle or rock the J 38125-13A tool when inserting it into the connector or the tool may break.
  11. Insert the J 38125-13A (GM P/N 12031876-1) tool into the round canal between the terminals cavities at the front of the connector. See the release tool cross reference in the Reference Guide of the Terminal Repair Kit to ensure that the correct release tool is used.

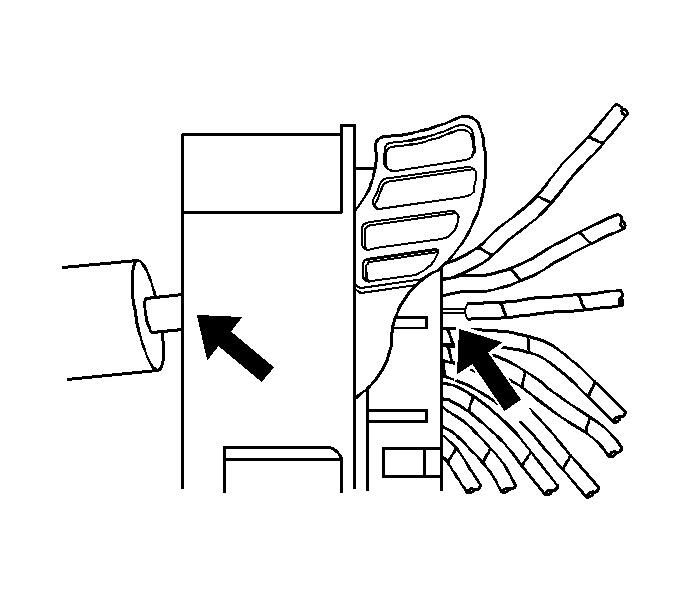

  12. Fig 6: Removing Wire From Back Of Connector
    GM863390Courtesy of GENERAL MOTORS CORP.
  13. While holding the removal tool in place, gently pull the wire out of the back of the connector. Always remember never use force when pulling a terminal out of a connector.
