Compass Calibration

Important:  Before calibrating the compass, drive the vehicle to a area that is magnetically clean, and free of large metallic objects.

  1. Turn ON the ignition.
  2. Press the MODE button in order to advance to the COMP/TEMP mode.
  3. Simultaneously depress and hold the US/MET and MODE buttons until a C is displayed, in approximately 10 seconds.
  4. Release both buttons.
  5. Drive the vehicle in circles at a speed of less than 8 km/h (5 mph) until the C is replaced by a proper vehicle heading. The calibration procedure is now complete.

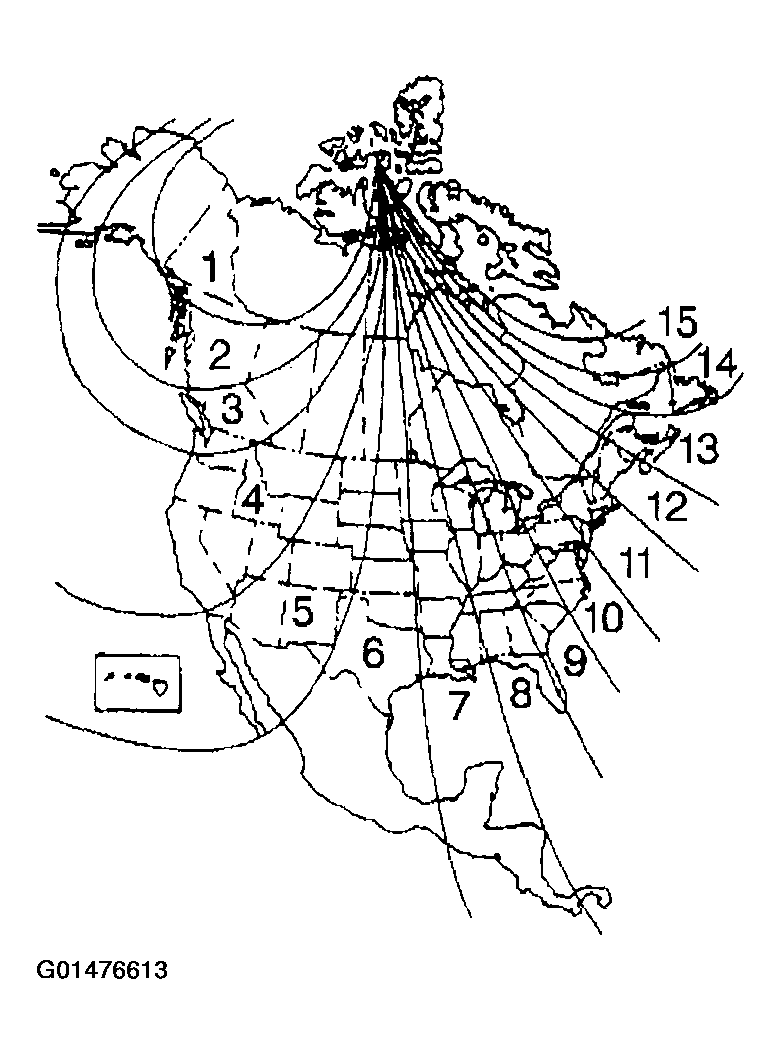

    Fig 1: Calibrating Electronic Compass
    G01476613Courtesy of GENERAL MOTORS CORP.
