Removal Procedure

  1. Using a flat-bladed tool, carefully remove the display lens (1) from the overhead console (3).
  2. Remove the electronic display module (2) from the console (3).
  3. Disconnect the electrical connection.

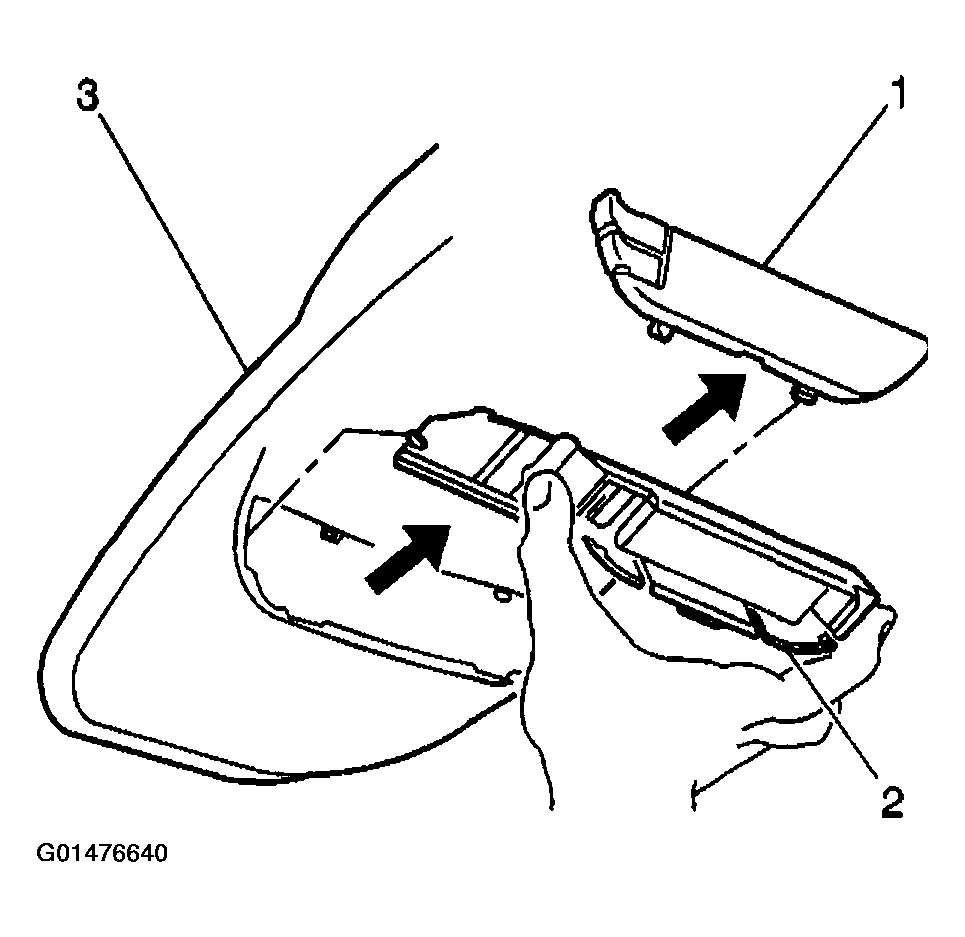

    Fig 1: Removing Electronic Display Module From Console
    G01476640Courtesy of GENERAL MOTORS CORP.
