Installation Procedure

  1. Connect the electrical connection.
  2. Install the electronic display module (2) to the overhead console (3).
  3. Install the display lens (1) by snapping the lens into place.
  4. Calibrate the compass. Refer to ELECTRONIC COMPASS CALIBRATION .

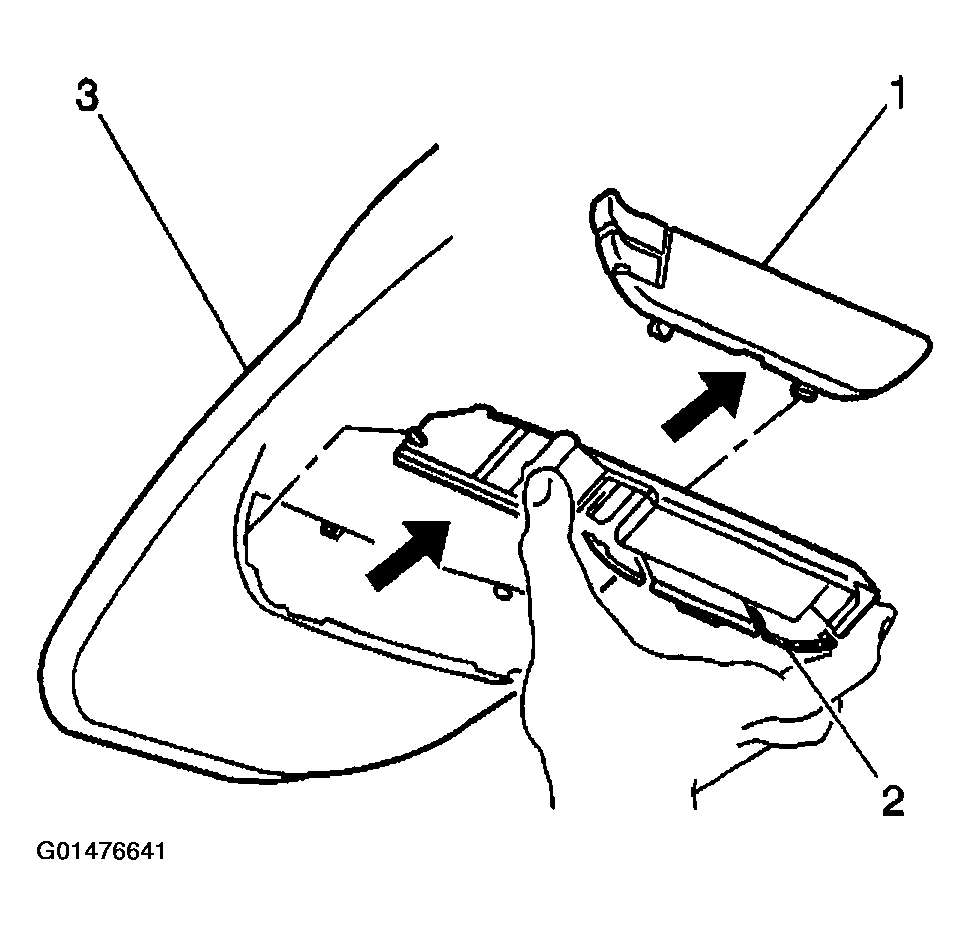

    Fig 1: Installing Electronic Display Module To Console
    G01476641Courtesy of GENERAL MOTORS CORP.
