Installation Procedure

  1. Install the reveal molding to the windshield pillar.
  2. Install the fasteners.
  3. Install the new weatherstrip tape (if required).

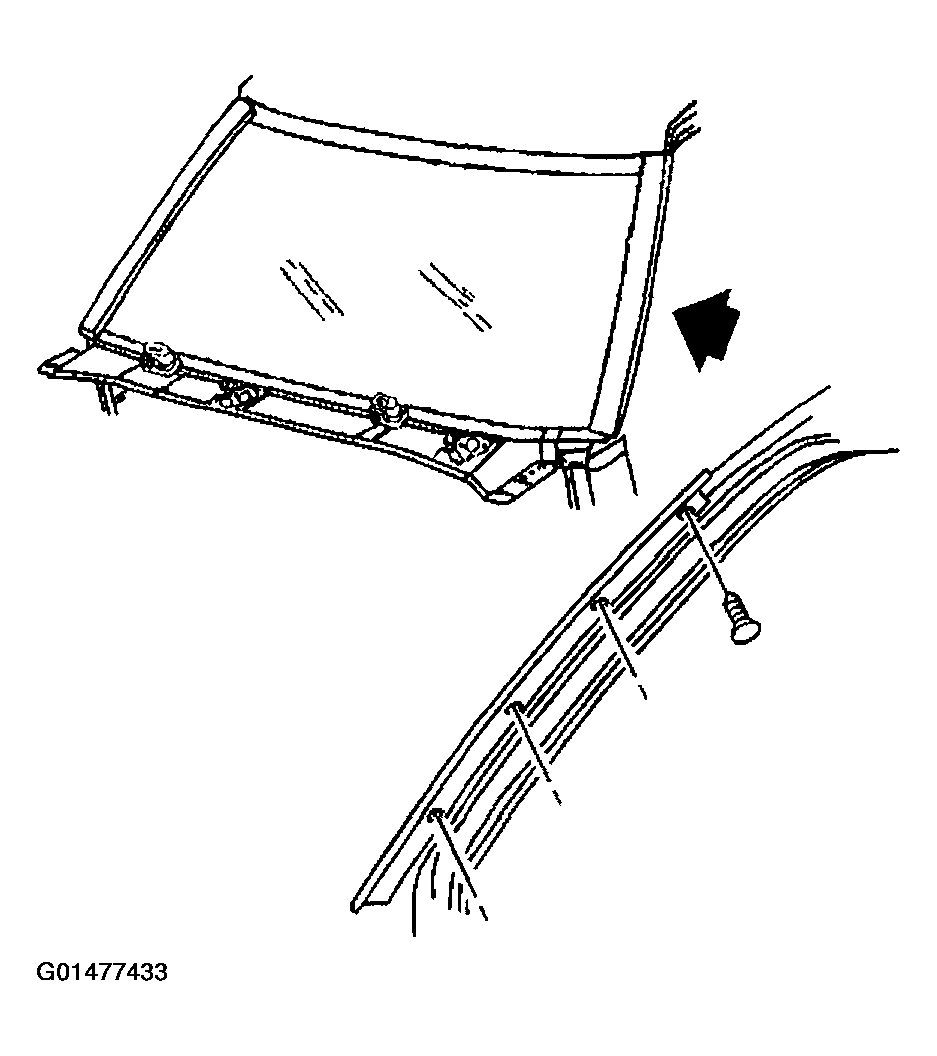

    Fig 1: Installing Reveal Molding To Windshield Pillar
    G01477433Courtesy of GENERAL MOTORS CORP.
