Removal Procedure

  1. Separate the J-strips from the seat bottom frame.

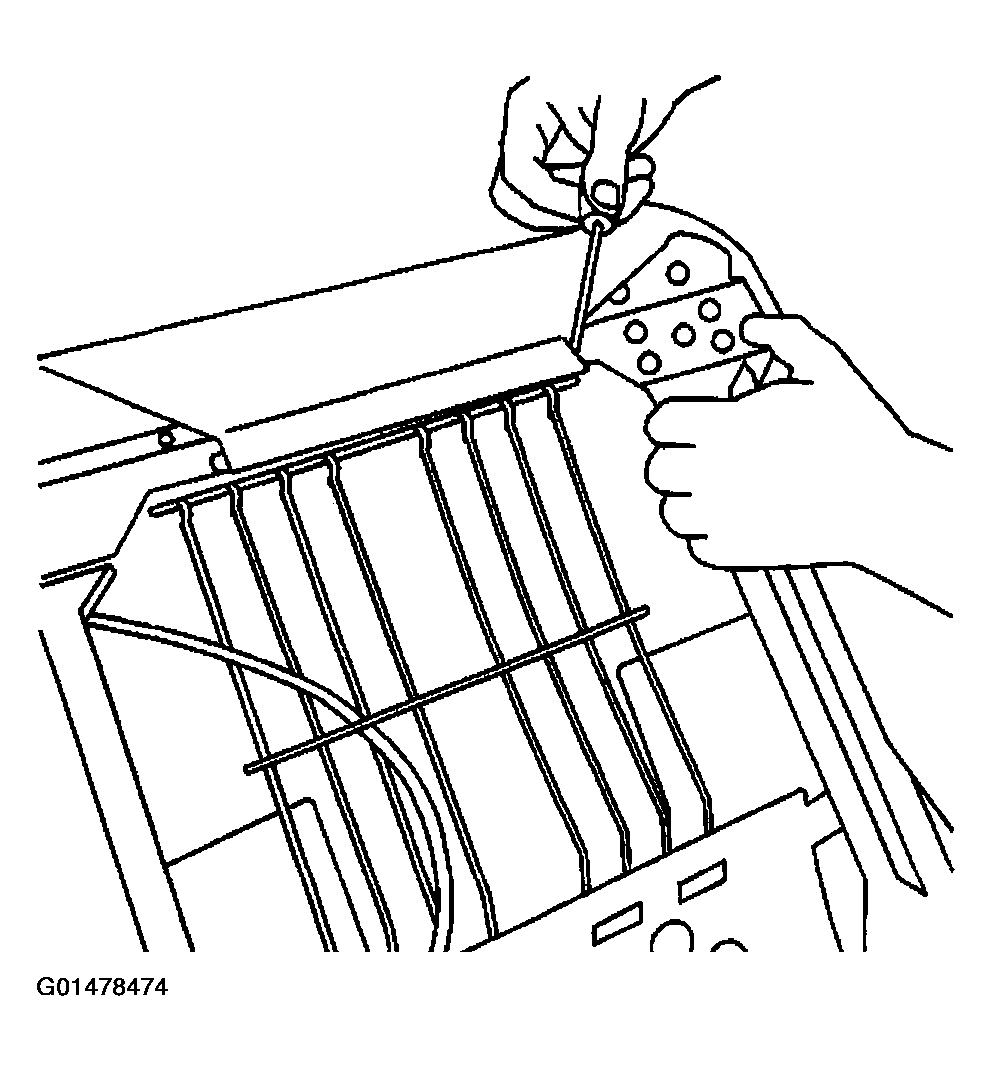

    Fig 1: Removing J-Strips From Seat Bottom Frame (Pickup)
    G01478474Courtesy of GENERAL MOTORS CORP.
  2. Work the seat cover back to expose the tether anchor mounting bolt.
  3. Remove the tether anchor mounting bolt.
  4. Remove the tether anchor (1).

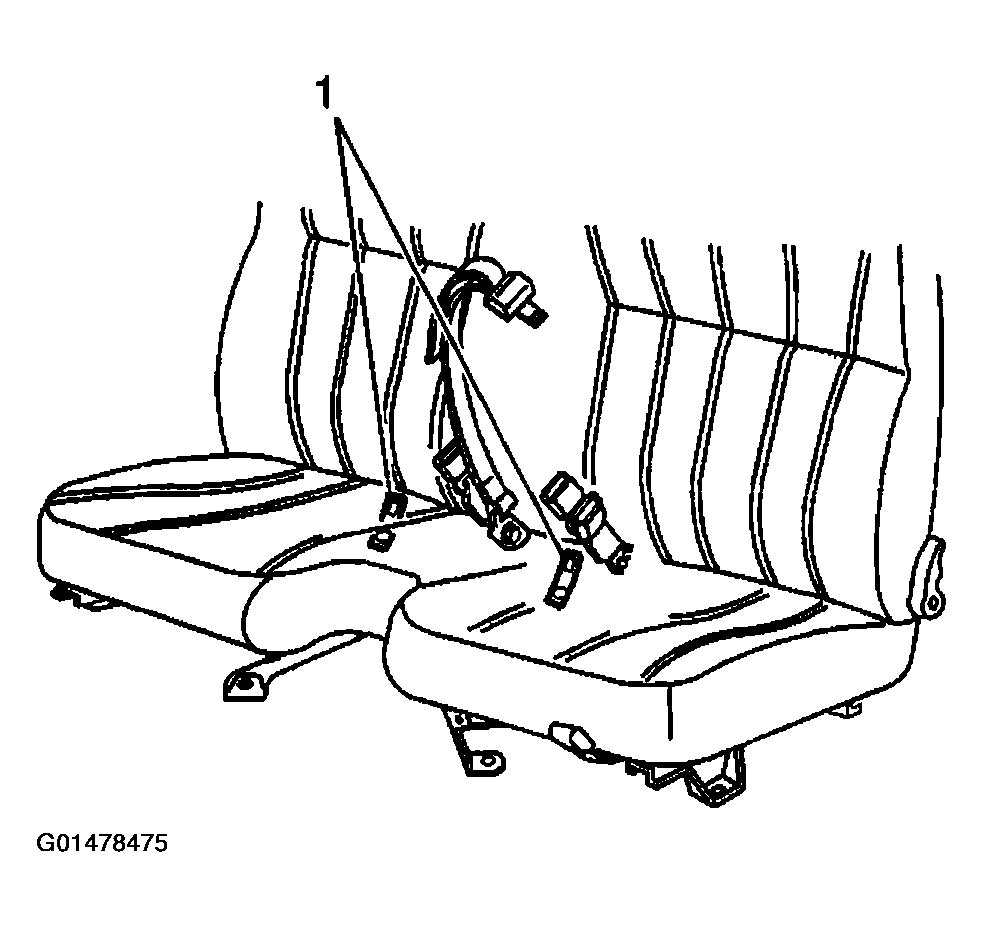

    Fig 2: Removing Tether Anchor (Pickup)
    G01478475Courtesy of GENERAL MOTORS CORP.
