Removal Procedure

  1. Remove the fan clutch. Refer to FAN CLUTCH REPLACEMENT in Engine Cooling.
  2. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT in Engine Mechanical 2.2L or DRIVE BELT REPLACEMENT in Engine Mechanical 4.3L.
  3. Remove the power steering pump pulley using J 25034-C  .

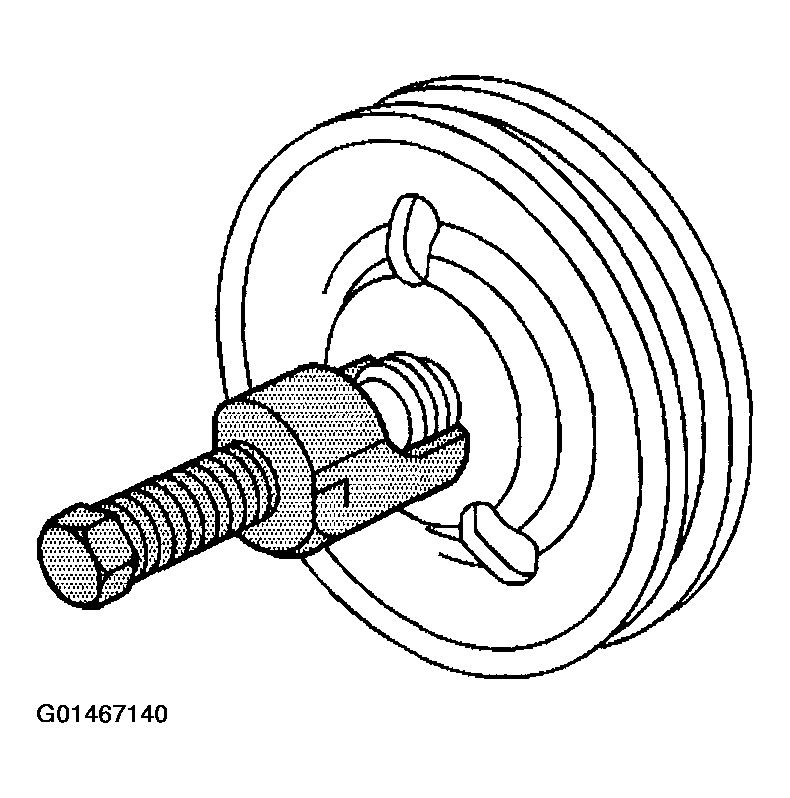

Fig 1: Identifying Power Steering Pump Pulley Remover For Removing Pump Pulley (SST)
G01467140Courtesy of GENERAL MOTORS CORP.
